customized MRI faraday cage for pet mri machine

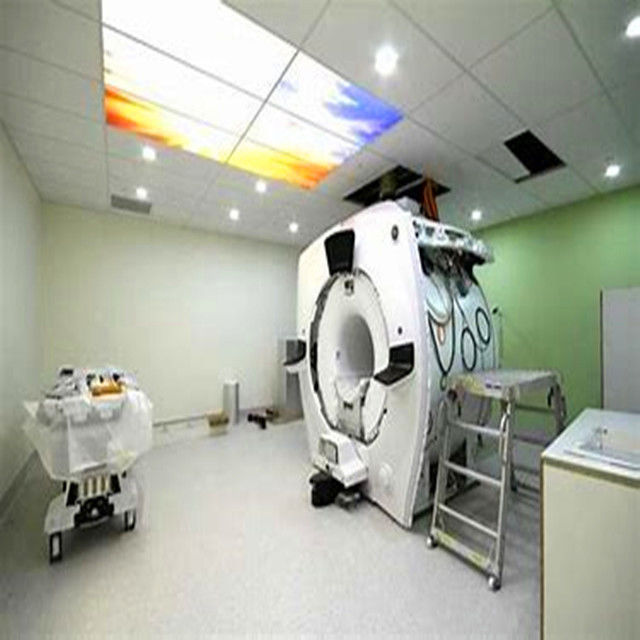

MRI Scanning Room Description:
This modular frame construction is wrapped with electroplated copper which can conform to any design criteria. The engineered and bolted system enhances RF integrity with wide 4.4 cm (1 3/4") seams that are highly compressed, offering a seamless shield surface. Interior fasteners do not have to penetrate the shield surface by design, which enhances the long term life of the shield.
MRI Scanning Room Product Features:
| Product Features | ||||
| Shielding panels are made of molded cold-rolled steel plates. They are jointed in way and welded with CO2 protection, which can restrain the plates from distortion and ensure the leveling of the steel plates. | ||||
| Self-supported frame construction is made of section materials. | ||||
| Shielding door is optional: standard electromotive door (electromotive / manual alternative), full-automatic shielding door (light-activated with password) sliding door. Subshining stainless steel decoration is on surface of the door. Standard dimension of the door is:0.85×2(m). | ||||
| Large-scale hanging sliding shielding-door, electromotive sliding push-in door, electromotive sliding gasbag door, rotated door with track. | ||||
| Ventilated window is designed in cellular wave-guide type with dimension:300×300(mm). | ||||
| Power filter is in condition of high-performance and low-leakage. | ||||
| Telephone, air-conditioning, fire-fight devices, optical fiber and CAT5 cables can be equipped customized. | ||||
| Decoration will be arranged in the shielding room according to standard equipment room requirements. | ||||
| Shielding Properties (dB) | ||||
| 14kHz | 85dB | ||
| 100KHz | 100dB | |||
| 200KHz | 110dB | |||
| Plane wave | 50-103MHz | 120dB | ||
| 1-10GHz | 110dB | ||
| 10-20GHz | 100dB | |||
| 20-40GHz | 80dB | |||
| Application Scope | ||||
| EMC tesing | ||||
| Items 1 | Module Panel type, 2mm/3mm galvanized steel plate | |||
| Items 2 | RF Shielding Door, Open size:1000*2000mm Or Customized dimension | |||
| Items 3 | Power Filters 16A/ 32A/50A/63A Or Customized parameter | |||
| Items 4 | Honeycomb Ventilation panels 300x300x25mm 300x600x25mm Or Customized dimension | |||
| Items 5 | RF Panel 300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2 Or Customized dimension | |||
| Items 6 | Floor Anti-static floor or Laminate flooring Or customized materials | |||
| Items 7 | Foam RF absorber Ferrite tile High power absorber | |||
| Items 8 | Beryllium copper Fingers | |||
| Items 9 | Steel waveguide | |||
| Items 10 | EMI Shielding Gasket | |||
MRI Scanning Room Accessories
| Accessories 1 | MRI door 1.2x2.1M |
| Accessories 2 | MRI window 0.8x1.2M |
| Accessories 3 | EMI filter 16A/ 25A/ 30A |
| Accessories 4 | Brass Honeycomb filter 300x300x25mm 300x600x25mm |
| Accessories 5 | Copper panel Copper foil 1380mmx0.105mm |
| Accessories 6 | Brass waveguide |
| Accessories 7 | Copper tape 25mm width 50M/Roll 50mm width 50M/Roll |
| Accessories 8 | Copper wool 2.5KGS/Roll |
| Accessories 9 | Beryllium copper fingers |
