6.7mm 5.2mm height ferrite tile for rf shielding cage

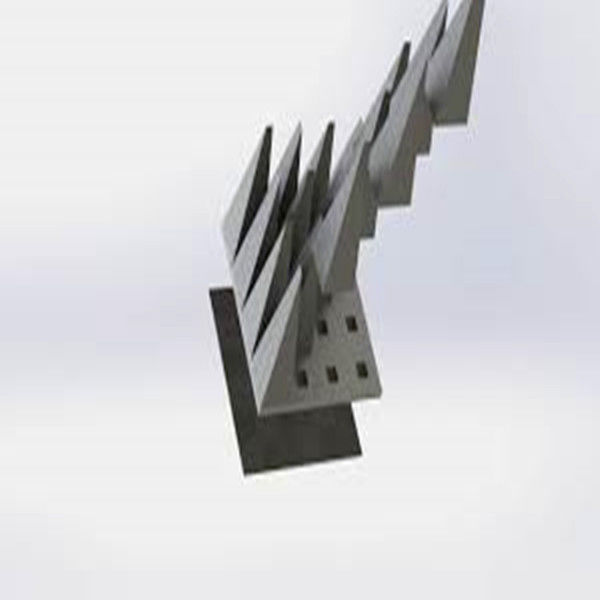

Ferrite tiles, flexible absorber sheets and pyramidal absorbers are made for absorbing electromagnetic radiation. Ferrite tiles and pyramidal absorbers for example are used to create anechoic chambers or boxes. Flexible absorber sheets are generally used to absorb radiation at the radiation source in electronics enclosures. Microwave absorber foam can be used at higher frequencies than traditional shielding and can also be used with other EMI/RFI shields to extend the frequency range.

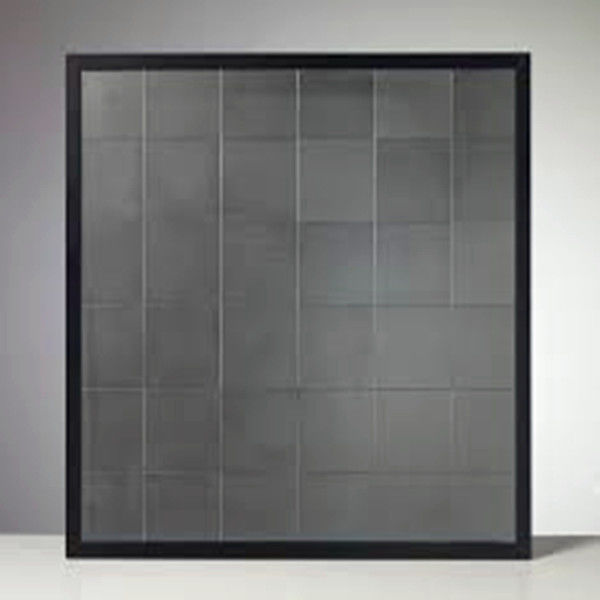

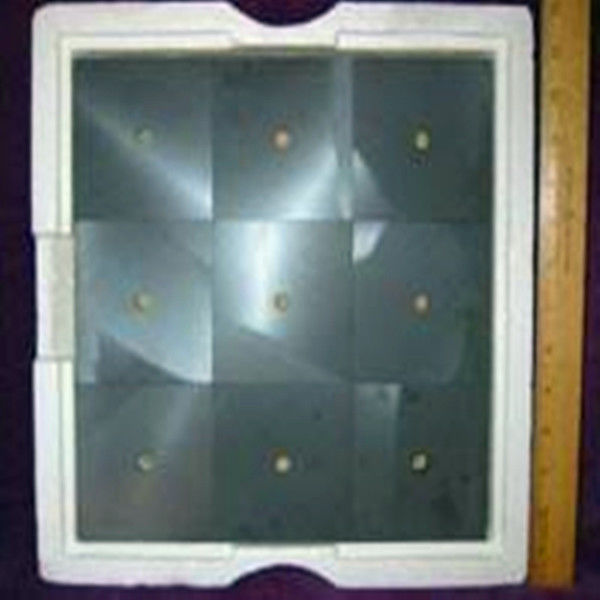

Ferrite Tile Size

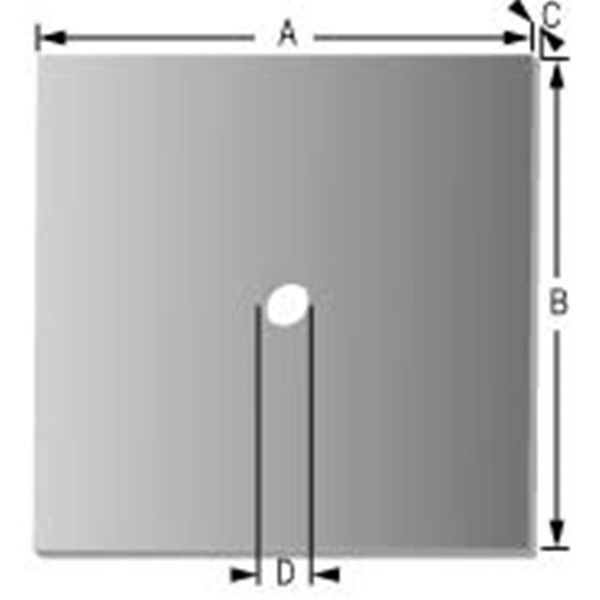

· Base size: 100*100mm
· Standard height: 5.2mm, 6.7mm
· Diameter of bore: 10mm
| Initial permeability | 5500 |
| Relative loss factor | 15@0.1MHz |
| Saturation flux density | 280(1194A/m) |
| Remanence | 180 |
| coercivity | 3 |
| Relative temp.factor | 3 |
| Curie temp. | 90 |
| Density | 4.85*1000 |
| Resistivity | 100 |
| 30MHz | -25.5dB |
| 100MHz | -38dB |
| 300MHz | -19.5dB |
| 500MHz | -16dB |
| 700MHz | -12dB |
| 1000MHz | -10dB |

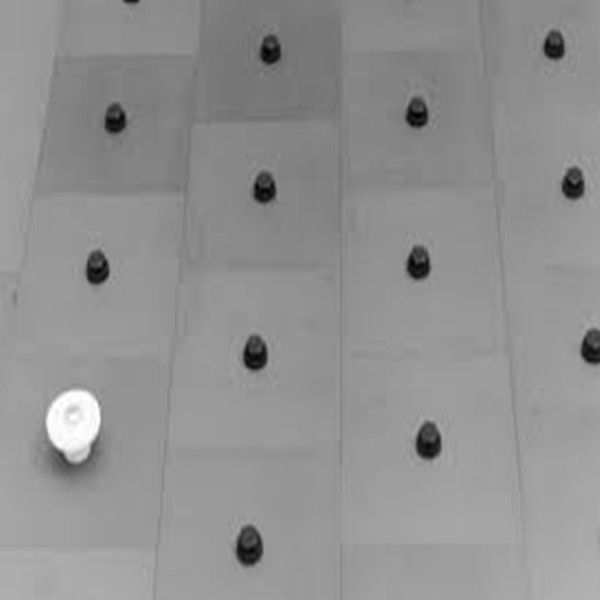

Ferrite Tile Application
· Used for EMC chamber
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence. Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).
Size for EMC chamber ferrite tile
· Base size: 100*100mm
· Standard height: 5.5mm, 6.7mm
· Diameter of bore: 10mm
Application for EMC chamber ferrite tile Used for EMC chamber
