Product Description:
Filters are specially designed for anechoic chamber, shielded enclosure, Electromagnetic shelter, shielded chamber and other Shield Facilities.
Filter classification:
A: Single Phase EMI Filter: Use for single phase Power supply(110VAC, 120VAC, 220VAC, 250VAC, 277VAC and DC Voltage)
B: Three phase EMI filter: Use for three phase Power supply(380VAC, 400VAC, 440VAC, 480VAC and DC Voltage)
C: Signal EMI Filter: Use for Fire Alarm systems, Telephone, fax, AC/DC switch signal, monitor and door access control system, Video signal control etc.
Filter Insertion Loss (dB) classification:
A Type Filter: 150KHz-18GHz/40GHz with 100dB
B Type Filter: 100KHz-18GHz/40GHz with 100dB
C Type Filter: 14KHz-18GHz/40GHz with 100dB
Please Note: C type filter is the high performance, The price is higher than A type and B Type. Filter performance: C>B>A Filter price: C>B>A
Custom design acceptable, ODM/OEM welcome.
产品列表 product:
型号 type |
电压 Rated voltage |
电流 Rated current |
线数 wires |
通带 Pass band |
应用范围 application |
SF-56KB | 200VDC | 1A | 2 | 4KHz |
电话/传真/交直流开关信号 telephone/fax/AC/DC switch signal |
SF-V8 | 250VAC | 1A | 8 | 7KHz | 网络 internet |

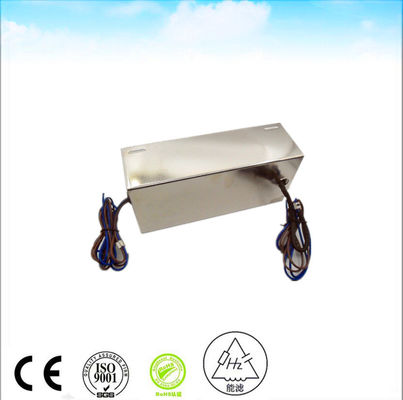

SF-V2 | 100VDC | 1A | 2 | 6MHz |
消防 / 门禁 / 视频 fire alarm/Entrance guard/video |
SF-K2 | 250VDC | 2A | 2 | 100KHz |
空调/消防/门禁/广播 Air-condition/fire alarm/entrance guard/broadcast |
