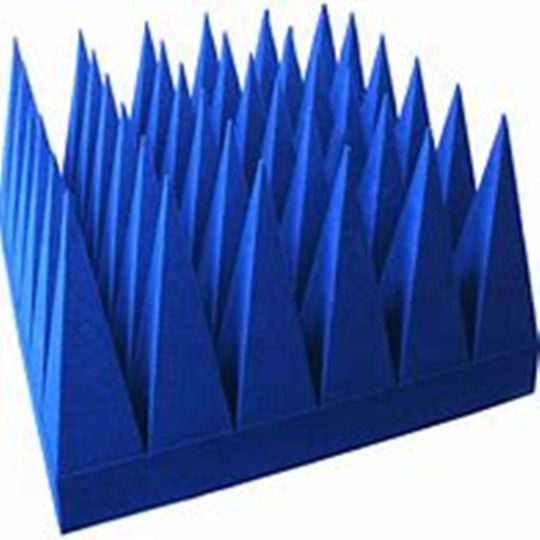

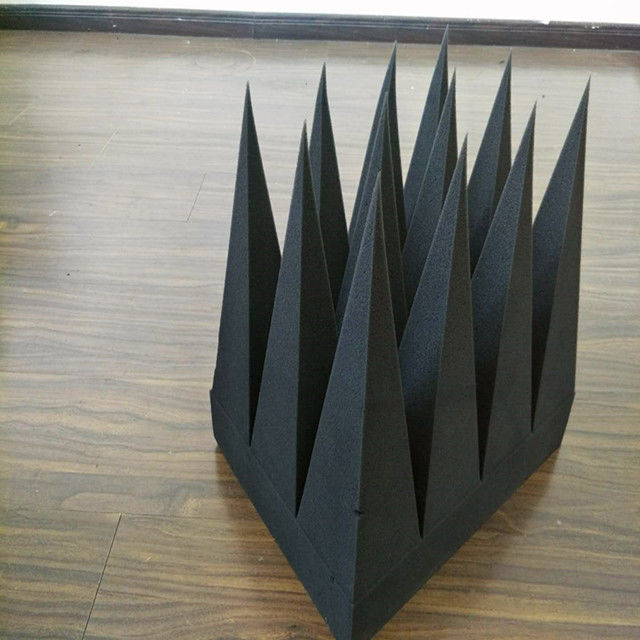

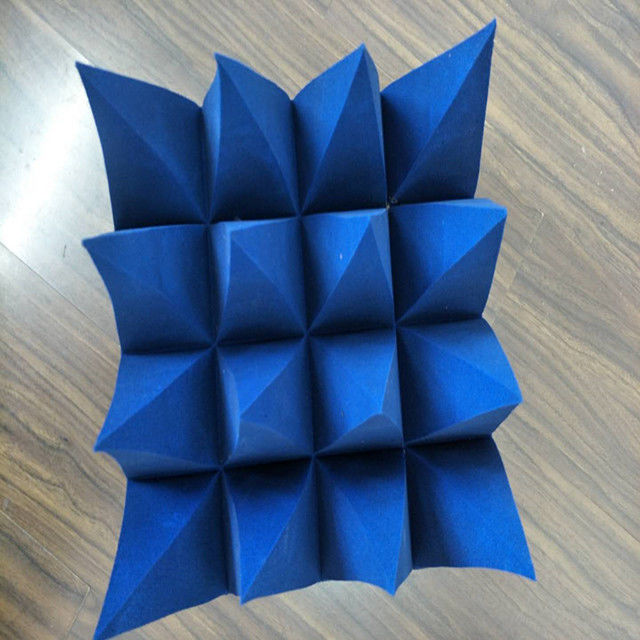

High Power RF Pyramid Absorber Foam Microwave Absorbing Materials

High Power RF Pyramid Absorber Foam Microwave Absorbing Materials

Products - Pyramid Absorber
  • Highlight

    high power RF Absorber

    ,

    pyramidal rf absorber

    ,

    Pyramidal Microwave Absorbing Materials

  • Product
    RF ABSORBER
  • SIZE
    500*500
  • COLOR
    LIGHT BLUE
  • APPLICATION
    EMC ANECHOIC CHAMBER
  • MATERIAL
    Pyramidal
  • Pyramidal
    7*7
  • Pyramidal Height
    100-1500mm
  • Customized
    Accepted
  • Surface Treatment
    No
  • Ferrite Tile
    Need
  • Place of Origin
    P.R.CHINA
  • Brand Name
    HAOZHUO
  • Certification
    CE RoHS
  • Model Number
    SW
  • Minimum Order Quantity
    100 SQM PER ORDER
  • Price
    USD 50.00 PER SQM
  • Packaging Details
    CARTON
  • Supply Ability
    1000 SQM PER WEEK

High Power RF Pyramid Absorber Foam Microwave Absorbing Materials

  • High Power RF Pyramid Absorber Foam Microwave Absorbing Materials
  • High Power RF Pyramid Absorber Foam Microwave Absorbing Materials
  • High Power RF Pyramid Absorber Foam Microwave Absorbing Materials
  • High Power RF Pyramid Absorber Foam Microwave Absorbing Materials
Get Price Contact Now

RF ABSORBER FOR ANECHOIC CHAMBER EMC TEST HIGH QUALITY AND COMPETITIVE PRICE

Foamed EPP particles are uniform in size and have stable properties. The compression molding as following:

  • Input: EPP particles are suctioned into stock bin by suction system, and weighed for storage for use.
  • Load pressure: Pre-pressing can improve the deformation caused by transportation and increase the stability of products after molding, too. The pre-pressing system conclude six steps, that is, venting, weighing, suction, setting parameters, starting, and discharging.
  • Molding: Mould is designed according to the shape of absorber, here the foam absorber is pyramid shape. Before molding, following steps should to be done to get best molding condition: fixing mould, adjusting mould, setting parameters, pre-heating, suction and discharging. In molding process, it includes: closing moulds, suction, steam heating, cooling and stabilization, demould.
  • Drying: The surface of products taken out from mould has vapor and the product inside contains residual water. So drying is needed to ensure stable dimension.
  • Post-process: Smooth the edges and corners, correct local deformation.
  • Quality testing: Measure the size, shape, and weight of products to pick out inferior-quality products.
  • Packing: Pack the products for safe.



RF Foam Absorber Types

· Rubber sheet micromave absorber

· Carbon-based foam microwave absorber

· Honeycomb & high power microwave absorber

· Sprayable microwave absorber

· Rigid and castable microwave absorber



TYPE BASE SIZE NUMBER OF PYRAMIDAL WEIGHT TOTAL HEIGHT BASE HEIGHT PYRAMIDAL HEIGHT

PYRAMIDAL

WIDTH
HZ-30 500*500 36*36 1.1 30 15 15 14
HZ-50 500*500 20*20 1.8 50 20 30 25
HZ-70 500*500 20*20 2.5 70 20 50 25
HZ-100 500*500 13*13 3.3 100 25 75 38
HZ-150 500*500 9*9 4.8 150 30 120 56
HZ-200 500*500 7*7 6.3 200 40 160 71
HZ-300 500*500 5*5 9 300 60 240 100
HZ-400 500*500 4*4 12 400 70 330 125
HZ-500 500*500 3*3 15 500 80 420 167
HZ-600 400*400 2*2 18 600 90 510 200
HZ-700 250*500 1*2 21 700 100 600 250
HZ-800 250*500 1*2 24 800 100 700 250
HZ-1000 334*334 1*1 30 1000 150 850 3



TYPE HEIGHT REFLECTIVITY
40 15 10 3 1.5 0.5 0.3 0.2 0.15
HZ-100 100 50 45 40 30 20
HZ-150 150 50 50 45 33 25
HZ-200 200 50 50 50 37 30 17
HZ-300 300 50 50 50 40 33 20
HZ-400 400 50 50 50 45 40 25 17
HZ-500 500 50 50 50 45 40 30 20 17
HZ-600 600 50 50 50 50 40 30 25 20
HZ-700 700 50 50 50 50 43 35 30 20 17
HZ-800 800 50 50 50 50 45 36 30 20 17
HZ-1000 1000 50 50 50 50 45 38 35 25 20






RF Foam Absorber Basic Information

· Base size: 500*500mm, customized acceptable

· Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm



RF Foam Absorber Features

· The traditional material for anechoic chambers

· Outstanding absorbing over a wide frequency range

· Flexible
