Anechoic Chamber Ferrite Tile

Anechoic Chamber Ferrite Tile

  • Highlight

    Anechoic Chamber Ferrite Tile

    ,

    Anechoic Chamber Tile

    ,

    Emc Ferrite Tile

  • Product
    FERRITE TILE
  • THICKNESS
    5.2MM 6.7MM
  • APPLICATION
    ANECHOIC CHAMBER
  • SAMPLE
    ACCEPT
  • SIZE
    100*100
  • Customized
    Not Accepted
  • Packing
    Wooden Case
  • Color
    Black
  • Surface Treatment
    No
  • Fragile
    Yes
  • Place of Origin
    P.R.CHINA
  • Brand Name
    HAOZHUO
  • Certification
    CE RoHS
  • Model Number
    E SERIES
  • Minimum Order Quantity
    5 SQM
  • Price
    USD 3 PER PCS
  • Packaging Details
    CARTON
  • Supply Ability
    10000 PCS PER WEEK

Anechoic Chamber Ferrite Tile

Emc Ferrite Tile For Anechoic Chamber Test High Quality Competitive Price


With specialized technologies for developing various ferrite items to meet customer’s demands, Samwha has been manufacturing excellent ferrite absorbers (Flat and grid types).


Samwha ferrite absorbers show excellent absorbing performance, customer_faqally resistant qualities, high strength and good heat resistance. So they can be widely used as anechoic chamber for electro-magnetic compatibility(EMC) testing or block against electromagnetic interference(EMI).

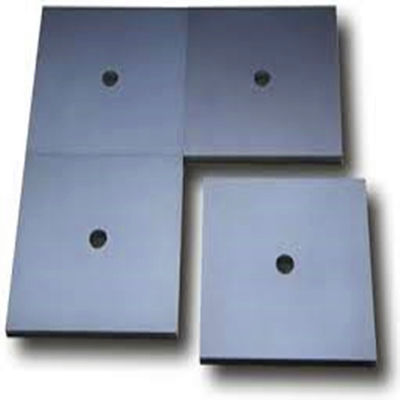

Ferrite Tile Size

· Base size: 100*100mm

· Standard height: 5.2mm, 6.7mm

· Diameter of bore: 10mm

Initial permeability 5500
Relative loss factor 15@0.1MHz
Saturation flux density 280(1194A/m)
Remanence 180
coercivity 3
Relative temp.factor 3
Curie temp. 90
Density 4.85*1000
Resistivity 100



30MHz -25.5dB
100MHz -38dB
300MHz -19.5dB
500MHz -16dB
700MHz -12dB
1000MHz -10dB

Ferrite Tile Application

· Used for EMC chamber

Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence. Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).



Size for EMC chamber ferrite tile

· Base size: 100*100mm

· Standard height: 5.5mm, 6.7mm

· Diameter of bore: 10mm



Application for EMC chamber ferrite tile Used for EMC chamber
