Ultrathin Ss Woven EMI Shielding Mesh Screen Lightweight rf shielding room emc anechoic chamber
  • name
  • name
  • name
  • name

Ultrathin Ss Woven EMI Shielding Mesh Screen Lightweight rf shielding room emc anechoic chamber

MOQ: 100 METER PER ORDER
Price: USD 5.00 PER METER
Standard Packaging: CARTON
Supply Capacity: 1000 METER PER ORDER
Detail Information
Product Description
Detail Information
Place of Origin
P.R.CHINA
Brand Name
HAOZHUO
Certification
CE RoHS
Model Number
K SERIES
Product:
KNITTED WIRE MESH
WEAVE TYPE:
Dutch Weave
INTERNAL MATERIAL:
Rubber/sponge
LAYER:
SINGLE OR DOUBLE
MATERIAL:
Galvanized Steel Wire, Tin-plated Copper-clad Steel
Length:
100m Per Rool
Color:
True Color
Surface Treatment:
Tin Plate
Customized:
Accepted
Thickness Of Material:
0.01mm
Highlight:

Woven EMI Shielding Mesh

,

Ss EMI Shielding Mesh

,

EMI Shielding Mesh Screen

Product Description

Knitted Wire Mesh For Rf Shielding Room Ss Material High Quality Competitive Price



Wire Type
Count
Diameter (in.)
Open area (%)
304 SS
50
0.0012
88.4
304 SS
80
0.0011
83.2


304 SS
100
0.0011
79.2
Copper
100
0.0022
60.8
316 SS
100
0.0022
60.8
Copper
145
0.0022
46.4
304 SS
150
0.0011
70.7
304 SS
180
0.0011
65.5
304 SS
200
0.0011
62.0
304 SS
230
0.0011
55.8
304 SS
250
0.0011
54.0



  1. Brass wire: copper 65%,zinc35%
  2. Purple copper wire: copper 99.8%
  3. Phosphorus copper wire :copper 85%-90%,tin 5%-15%
Product Features

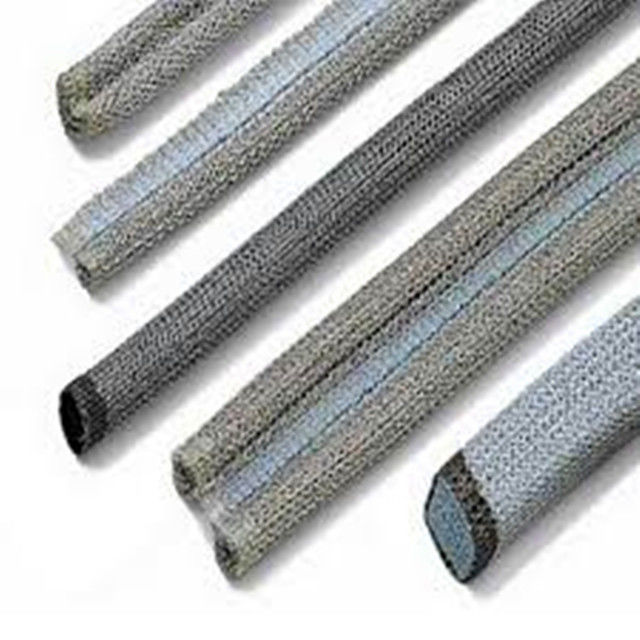

All mesh gasket’s cross section are rectangular, round,round with tail and double round with tail.
Materials are available intin-plated phosphor
bronze (Sn/Ph/Bz), tin-plated copper-clad steel (Sn/Cu/Fe), silver-plated brass (Ag/Brass), Monel, and aluminum(Al).
Elastomeric core has various function(anti-chemistry, thermal resistance and water proof) for elasticity.
Selection shape
Solid Round Type
Solid Rectangular Type
Hollow Round Type
Solid Round with Fin Type
Hollow Round with Fin Type



  Mesh/inch Wire dia(mm/inch) Aperture(mm)





Stainless steel wire mesh

 100 0.089/0.0035 0.17
110 0.1060/0.0040 0.1295
120 0.0904/0.0037 0.1168
150 0.0660/0.0026 0.1041
160 0.0635/0.0025 0.0965
180 0.0584/0.0023 0.0838
200 0.0533/0.0021

0.737





Production range:

  • Width: Standard 1M, Special requirement is accepted.
  • Length:30M/roll
  • Size:Standard 60/100/150 mesh/inch
  • Faraday cage shielding stainless steel wire mesh

Product Description

• Material: SUS302,201, 304, 304L, 316, 316L, 310, 310S etc

• Weave: plain, twill, dutch

• Mesh: 1-2800 mesh

• Application: EMI/RFI shielding, Faraday cages, RF window,

• Specification list for faraday cage shielding stainless steel wire mesh
