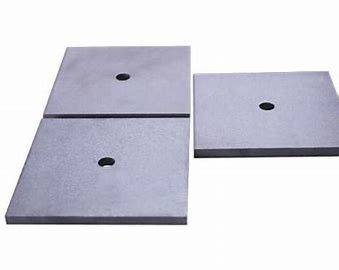

Ferrite Tile Size
Ferrite Tile Application
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence.
Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).

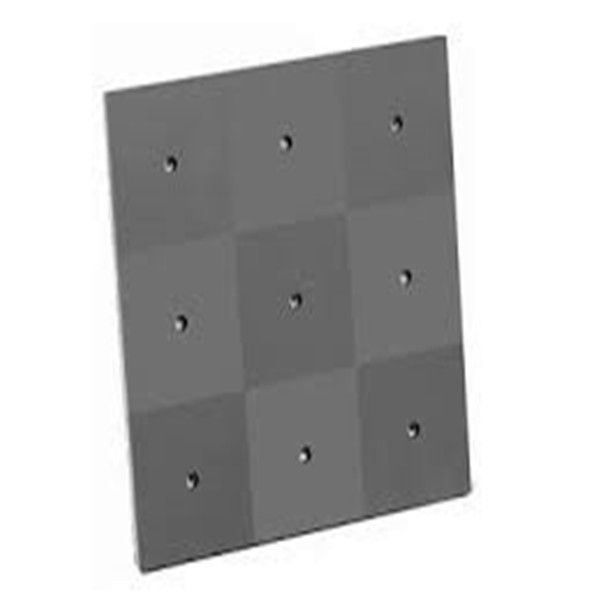

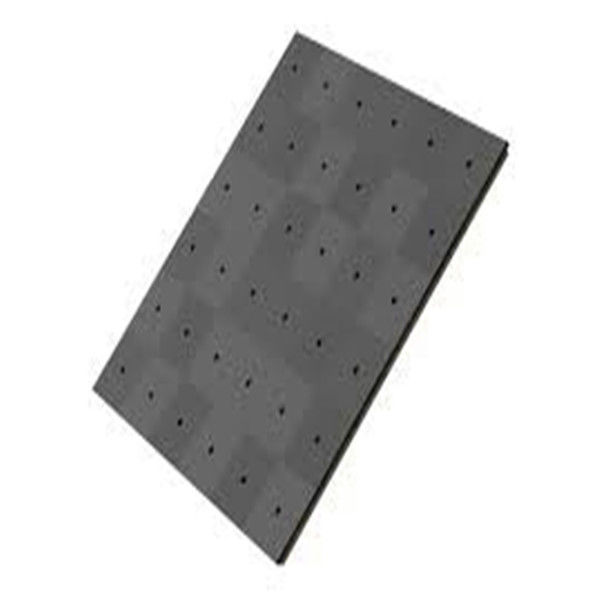

Size for EMC chamber ferrite tile
Application for EMC chamber ferrite tile

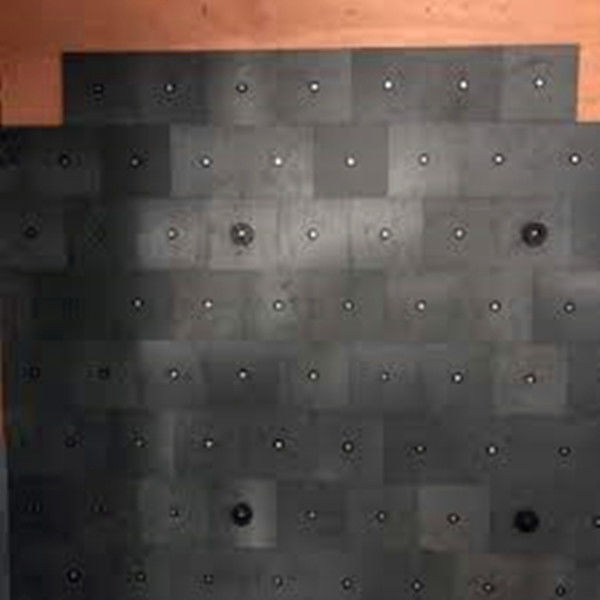

Used for EMC chamber
|Relative loss firstname.lastname@example.orgMHz|
|Saturation flux density||280(1194A/m)|
|Part||Dimentions in mm|
