Mri Electromagnetic Emc Microwave Anechoic Chamber Box Security Design

Mri Electromagnetic Emc Microwave Anechoic Chamber Box Security Design

  • Highlight

    Electromagnetic Microwave Anechoic Chamber

    ,

    Emc Microwave Anechoic Chamber

    ,

    Electromagnetic Emc Anechoic Chamber

  • Power
    Electronic
  • Size
    Customized
  • Accessories 1
    MRI Window
  • Accessories 2
    MRI Door
  • Accessories 3
    Copper Panel
  • Accessories 4
    EMI Filter
  • Accessories 5
    Honeycomb
  • Accessories 6
    Gas Waveguide
  • Accessories 7
    PVC For Flooring
  • Accessories 8
    PVC For Walls
  • Accessories 9
    Light
  • Selling Units
    Single Item
  • Single Package Size
    200X200X200 Cm
  • Single Gross Weight
    500.000 Kg
  • Package Type
    WOODEN CASE
  • Place of Origin
    Jiangsu, China
  • Brand Name
    HZ
  • Certification
    CE RoHS
  • Model Number
    MRI RF CAGE
  • Minimum Order Quantity
    1 Set
  • Price
    $20,000.00 / Set

Mri Electromagnetic Emc Microwave Anechoic Chamber Box Security Design

MRI RF SHIELDING ROOM


All RF shielded rooms, reverberation and anechoic chambers supplied by Comtest Engineering are built as a modular concept by using the components in our product range as building blocks. This enables us to supply many different and unique solutions in almost every dimension and form. Depending on the application, the flanges of the shielded panels can be installed on the inside. This allows the chamber to be positioned close to the existing walls of the parent building.


MRI Scanning Room Product Features:

  • Pure, electrically deposited copper
  • RF attenuation levels of > 100 dB up to 400 MHz frequencies
  • Free standing, structurally isolated RF walls
  • Light weight wall and ceiling panels
  • Factory engineered and fabricated RF shield panels
  • Contractor friendly interiors

MRI Scanning Room Description:

This modular frame construction is wrapped with electroplated copper which can conform to any design criteria. The engineered and bolted system enhances RF integrity with wide 4.4 cm (1 3/4") seams that are highly compressed, offering a seamless shield surface. Interior fasteners do not have to penetrate the shield surface by design, which enhances the long term life of the shield.



Product Features

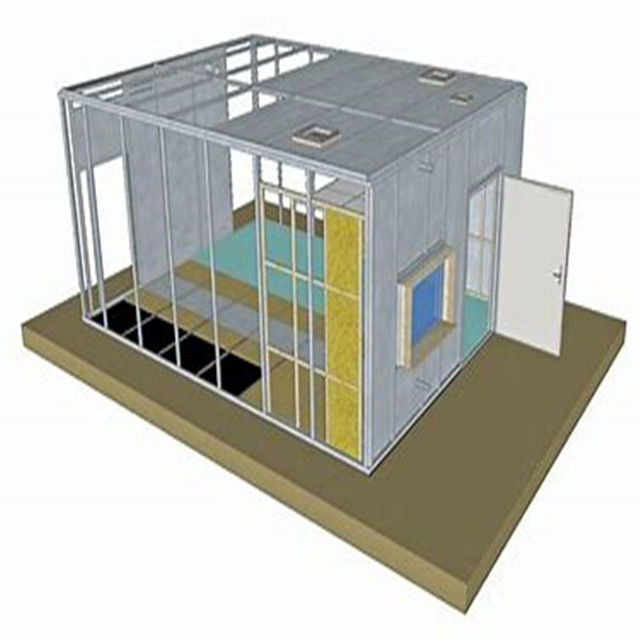

Shielding panels are made of molded cold-rolled steel plates. They are jointed in way and welded with CO2 protection, which can restrain the plates from distortion and ensure the leveling of the steel plates.
Self-supported frame construction is made of section materials.

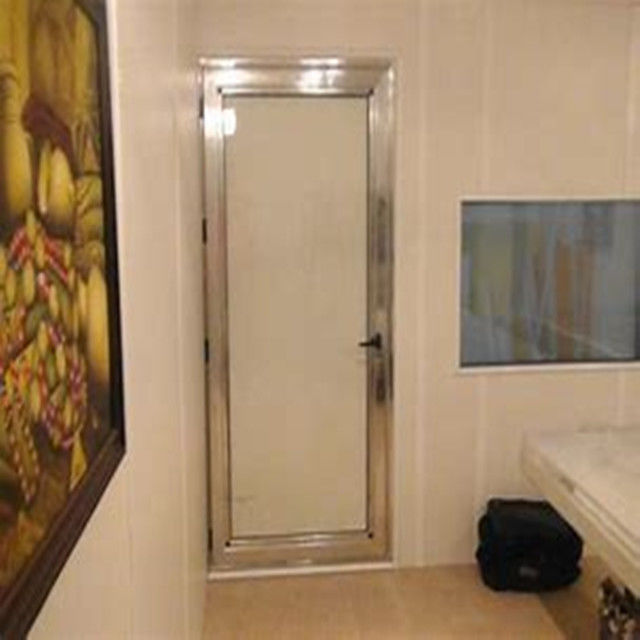

Shielding door is optional: standard electromotive door (electromotive / manual alternative), full-automatic shielding door (light-activated with password) sliding door. Subshining stainless steel decoration is on surface of the door. Standard dimension of the door is:0.85×2(m).
Large-scale hanging sliding shielding-door, electromotive sliding push-in door, electromotive sliding gasbag door, rotated door with track.
Ventilated window is designed in cellular wave-guide type with dimension:300×300(mm).
Power filter is in condition of high-performance and low-leakage.
Telephone, air-conditioning, fire-fight devices, optical fiber and CAT5 cables can be equipped customized.
Decoration will be arranged in the shielding room according to standard equipment room requirements.
Shielding Properties (dB)


Magnetic field

14kHz85dB
100KHz100dB
200KHz110dB
Plane wave50-103MHz120dB


Microware

1-10GHz110dB
10-20GHz100dB
20-40GHz80dB
Application Scope
EMC tesing
Items 1Module Panel type, 2mm/3mm galvanized steel plate
Items 2RF Shielding Door, Open size:1000*2000mm
Or Customized dimension

Items 3Power Filters
16A/ 32A/50A/63A
Or Customized parameter

Items 4Honeycomb Ventilation panels
300x300x25mm
300x600x25mm
Or Customized dimension

Items 5RF Panel
300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2
Or Customized dimension

Items 6Floor
Anti-static floor or Laminate flooring
Or customized materials

Items 7Foam RF absorber
Ferrite tile
High power absorber

Items 8Beryllium copper Fingers
Items 9Steel waveguide
Items 10EMI Shielding Gasket



MRI Scanning Room Accessories

Accessories 1MRI door 1.2x2.1M
Accessories 2MRI window 0.8x1.2M
Accessories 3EMI filter 16A/ 25A/ 30A
Accessories 4

Brass Honeycomb filter

300x300x25mm

300x600x25mm

Accessories 5

Copper panel

Copper foil 1380mmx0.105mm

Accessories 6Brass waveguide
Accessories 7

Copper tape

25mm width 50M/Roll

50mm width 50M/Roll

Accessories 8

Copper wool

2.5KGS/Roll

Accessories 9Beryllium copper fingers
