6.7mm 5.5mm height EMC chamber ferrite tile for testing
Ferrite tiles are precision machined to have almost zero dimensional tolerance which helps in proper alignment of tiles, reduce gap between tiles resulting better performance and Normalized site attenuation of EMC chambers per ANSI C63.4 and applications per CISPR 16-1-4 and IEC 61000-4-3
Ferrite Tile Size
· Base size: 100*100mm
· Standard height: 5.2mm, 6.7mm
· Diameter of bore: 10mm
| Initial permeability | 5500 |
| Relative loss factor | 15@0.1MHz |
| Saturation flux density | 280(1194A/m) |
| Remanence | 180 |
| coercivity | 3 |
| Relative temp.factor | 3 |
| Curie temp. | 90 |
| Density | 4.85*1000 |
| Resistivity | 100 |
| 30MHz | -25.5dB |
| 100MHz | -38dB |
| 300MHz | -19.5dB |
| 500MHz | -16dB |
| 700MHz | -12dB |
| 1000MHz | -10dB |
Ferrite Tile Application

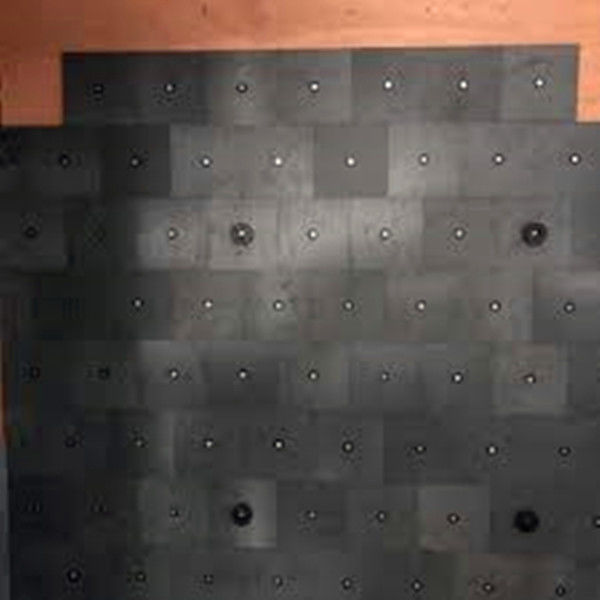

· Used for EMC chamber
Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence. Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).
Size for EMC chamber ferrite tile
· Base size: 100*100mm
· Standard height: 5.5mm, 6.7mm
· Diameter of bore: 10mm
Application for EMC chamber ferrite tile Used for EMC chamber
