EMC Chamber Rf Ferrite Tile Absorber 6.7mm 5.2mm Height

EMC Chamber Rf Ferrite Tile Absorber 6.7mm 5.2mm Height

  • High Light

    Rf Ferrite Tile

    ,

    EMC Ferrite Tile

    ,

    ferrite tile absorber

  • Type
    RC Filter
  • Transfer Function
    Low Pass
  • Package Type
    Surface Mount
  • Nominal Center Frequency
    50Hz
  • 3dB Bandwidth
    1MHz
  • Insertion Loss
    100
  • Input Impedance
    50
  • Stopband Attenuation
    100
  • Base Size
    10*10
  • Standard Height
    5.2mm, 6.7mm
  • Color
    Black
  • MOQ
    5 Sqm
  • Model Type
    Tile 52, Tile 67
  • Package
    With Plate
  • Port
    Shanghai
  • Place of Origin
    china
  • Brand Name
    haozhuo
  • Certification
    CE RoHS
  • Model Number
    H-100
  • Minimum Order Quantity
    >=1000 Pieces
  • Price
    $2.90
  • Packaging Details
    wooden case
  • Supply Ability
    1000 Piece/Pieces per Week

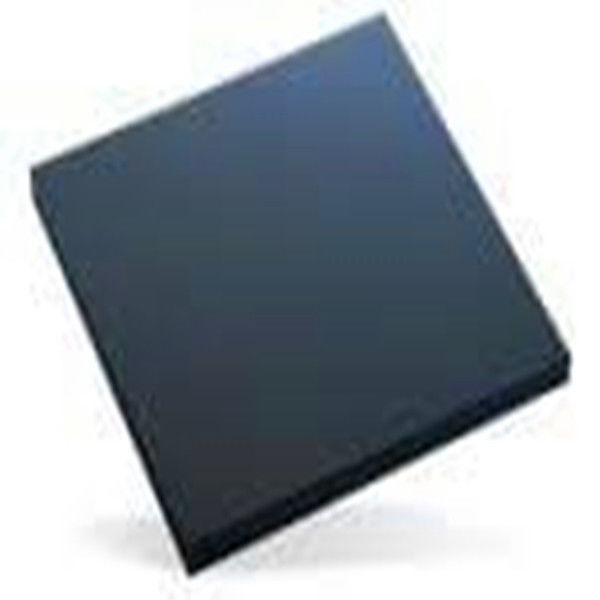

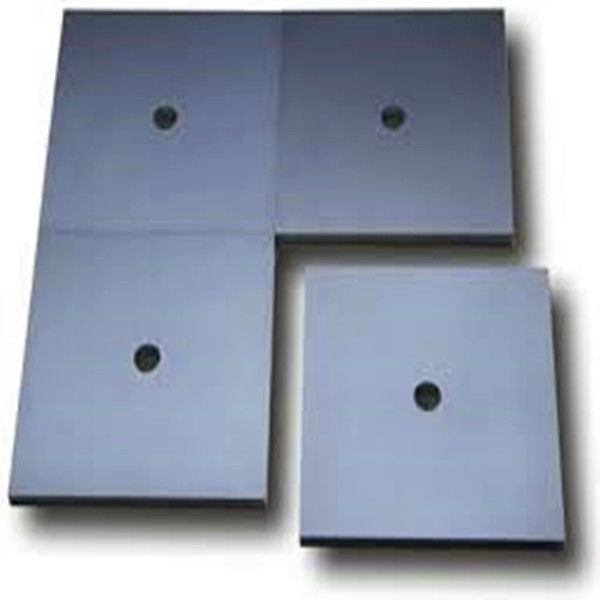

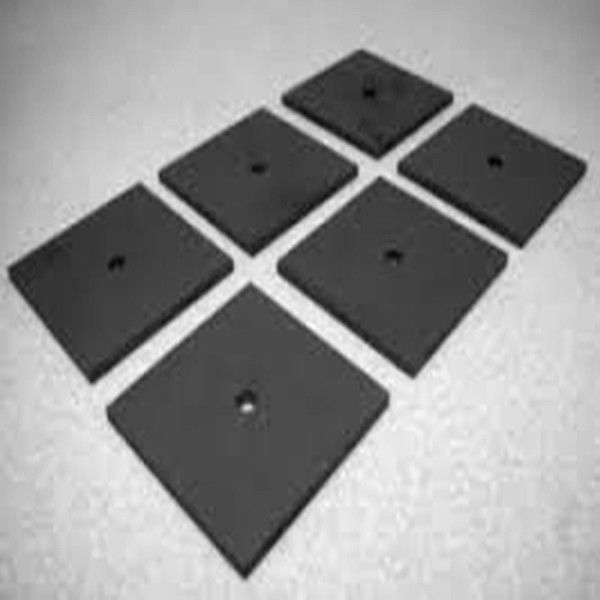

EMC Chamber Rf Ferrite Tile Absorber 6.7mm 5.2mm Height

6.7mm 5.2mm height ferrite tile for EMC chamber​



  • Typicaly Performance at:
    • 30 MHz = -18.0 dB
    • 100 MHz = -27.0dB
    • 300 MHz = -25.0 dB
    • 500 MHz = -19.5 dB
    • 1000 MHz = -12.5 dB
  • Initial permeability: 2000±20%
  • Relative Loss: 25 (0.1MHz) tanδ/μiac
  • Saturation Flux Density: 260 (1194A/m)
  • 3.93" by 3.93" (.0265" thick)
  • Minimum Order Requirements Apply

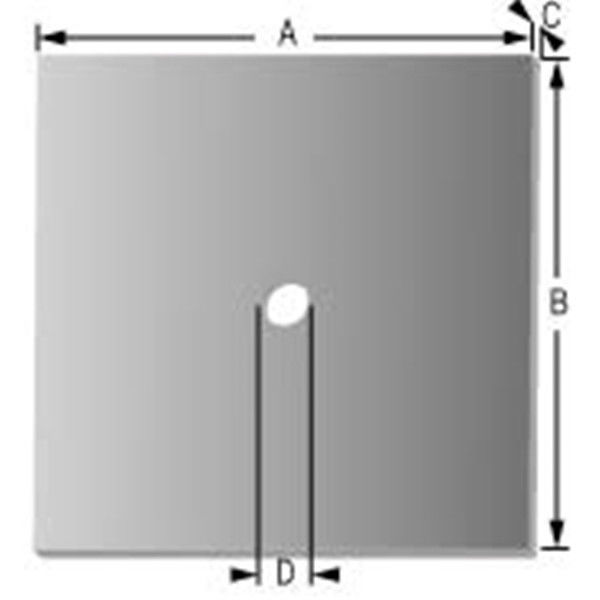

Ferrite Tile Size

· Base size: 100*100mm

· Standard height: 5.2mm, 6.7mm

· Diameter of bore: 10mm



Initial permeability 5500
Relative loss factor 15@0.1MHz
Saturation flux density 280(1194A/m)
Remanence 180
coercivity 3
Relative temp.factor 3
Curie temp. 90
Density 4.85*1000
Resistivity 100



30MHz -25.5dB
100MHz -38dB
300MHz -19.5dB
500MHz -16dB
700MHz -12dB
1000MHz -10dB



Ferrite Tile Application

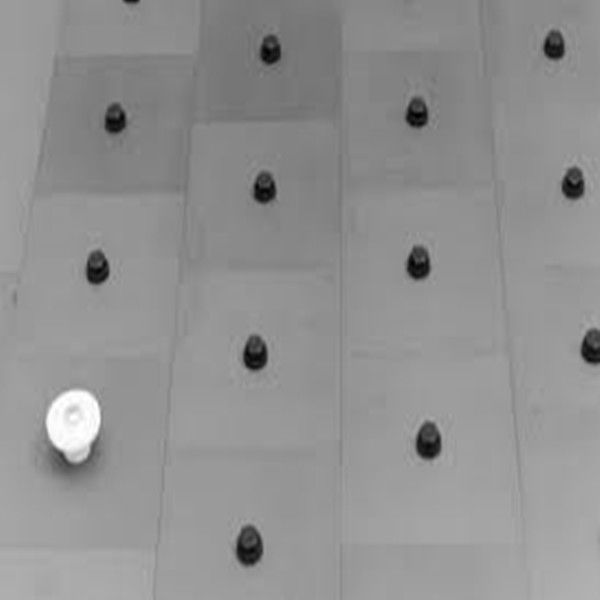

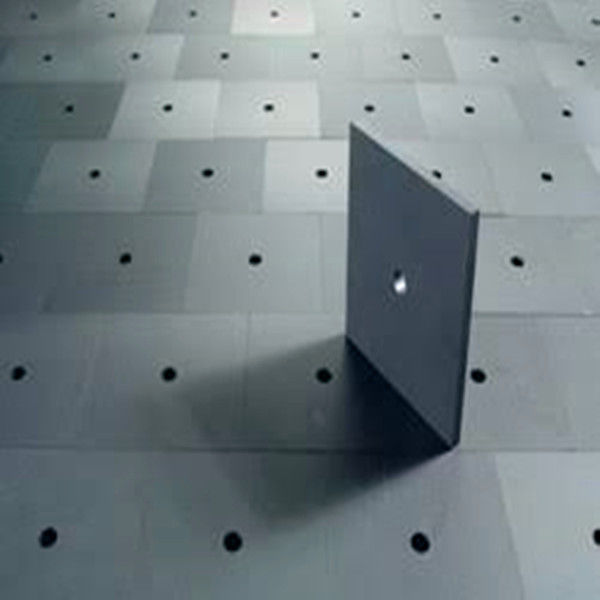

· Used for EMC chamber

Based on the principle of having complex magnetic permeability equal (or nearly equal) to complex dielectric constant. Materials with this property exhibit an impedance equal to that of "free space" and therefore do not reflect radiated energy at normal incidence. Ferrite Tile can provide 10dB - 25dB of absorption between 30MHz and 1GHz. Tiles are thin (approximately 0.26 inches), but can be heavy (roughly 10 lbs per square foot).



Size for EMC chamber ferrite tile

· Base size: 100*100mm

· Standard height: 5.5mm, 6.7mm

· Diameter of bore: 10mm



Application for EMC chamber ferrite tile Used for EMC chamber
