Conductive Rfi Emi Shielding Fabric Over Foam Emi RF Shielding Gaskets Pcb Rf Shield

Conductive Rfi Emi Shielding Fabric Over Foam Emi RF Shielding Gaskets Pcb Rf Shield

  • High Light

    conductive shielding fabric

    ,

    faraday fabric emi rfid shielding

    ,

    Fabric Over Foam Emi Shielding Gaskets

  • Transfer Function
    Low Pass
  • Package Type
    Surface Mount
  • Nominal Center Frequency
    50
  • 3dB Bandwidth
    10M
  • Insertion Loss
    100db
  • Input Impedance
    50
  • Stopband Attenuation
    100db
  • Length
    1.22m/pcs
  • Application
    RF Door/MRI Door/RF Box
  • MOQ
    50m
  • Customized
    Accept
  • Certificate
    RoHS
  • Size
    Custom Size
  • Color
    Requirement
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    haozhuo
  • Certification
    CE RoHS
  • Model Number
    HZ
  • Minimum Order Quantity
    >=1 Meters
  • Price
    $5.00
  • Packaging Details
    carton
  • Supply Ability
    1000 Meter/Meters per Week

Conductive Rfi Emi Shielding Fabric Over Foam Emi RF Shielding Gaskets Pcb Rf Shield

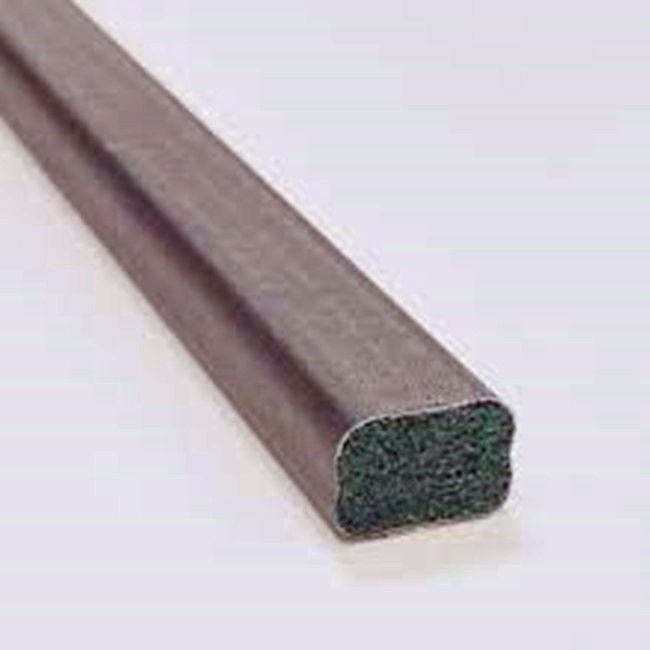

Shielded Soft Emi Shielding Conductive Fabric Over Foam Gasket



Foam gasket with conductive adhesive tape



EMC Shielding is any method used to protect a sensitive signal from external electromagnetic signals, or preventing a stronger signal from leaking out and interfering with surrounding electronics. It can cover PCB elements such as IC chips and active components, or connectors and cables between PCBs.

EMC is short for ElectroMagnetic Compatibility, which means that a circuit has been designed with this prevention of disruption by shielding.



Product features for foam gasket with conductive adhesive tape

1. Compact conductive fibers, no sharp edges

2. Good elasticity and consistency

3. Conductive adhesive

4. Low surface contact resistance

5. Shielding performance will not reduce after 10,000 times friction

6. Thin section suitable for I/O and D- subminiature lining

7. Could be used to ground connection



Specification for foam gasket with conductive adhesive tape

Name foam gasket with conductive tape
Shielding effectiveness 60-80dB/30MHz-1GHz
Surface resistance <0.07ohms/sq inch
Permanent deformation < 10%
Temperature range -10~110°c
Flammability UL 94(HF-1)
Compression 30-50%



Application for foam gasket with conductive adhesive tape Widely used in electronic box,case,interior chassis, industrial equipment, notebook PC, mobile communication devices,medical equipment, RF door and MRI door etc.

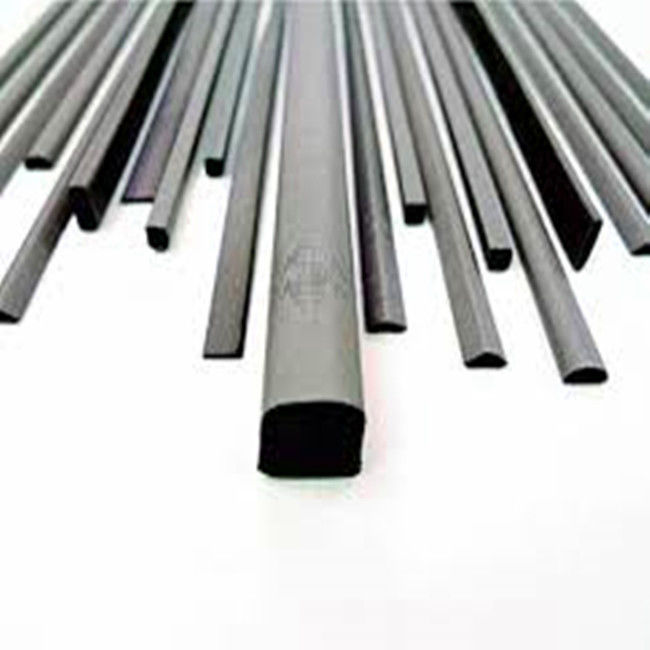

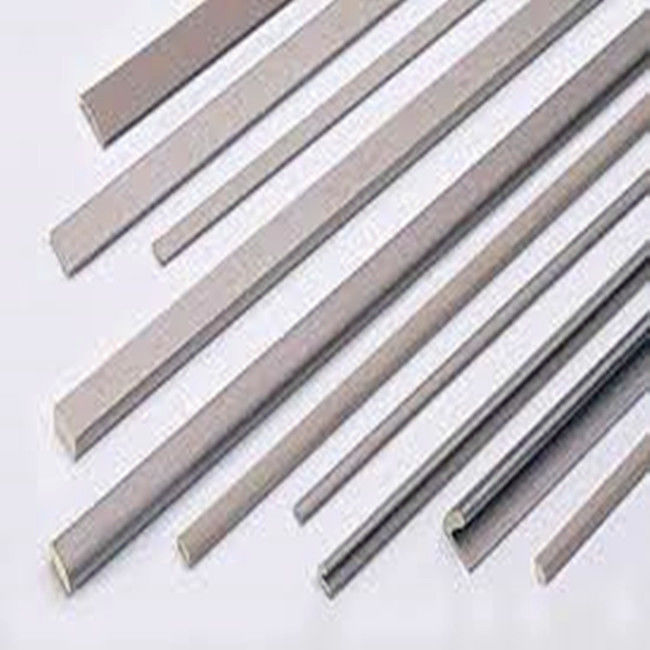

Type for foam gasket with conductive adhesive tape

  • “V” type
  • “D” type
  • Rectangle type
  • Customized accept

Other information for conductive foam gasket with adhesive

Foam gasket
MOQ 50M
Delivery time 5-7days
Payment Terms T/T, Paypal, Western Union
Longest dimension cut 1.22m/pcs
Place of region China
