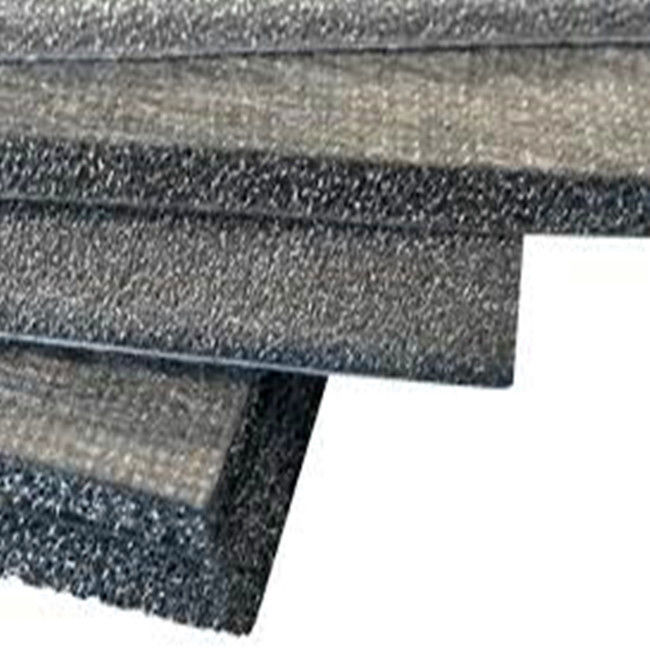

Emi Shielding Conductive Foam Gasket With Adhesive
What materials can be used for EMC Shielding?
Several techniques and materials can be used for EMC Shielding, and the materials used depend on the type of electronics and frequencies involved. This is because the amount of signal reduction/blocking depends on the material used, the size of the shielded volume, the material thickness – each of these factors affects the range and strength of frequencies that can be absorbed by the shielding.
Product features for foam gasket with conductive adhesive tape
1. Compact conductive fibers, no sharp edges
2. Good elasticity and consistency
3. Conductive adhesive
4. Low surface contact resistance
5. Shielding performance will not reduce after 10,000 times friction
6. Thin section suitable for I/O and D- subminiature lining
7. Could be used to ground connection
Specification for foam gasket with conductive adhesive tape
Name | foam gasket with conductive tape |
Shielding effectiveness | 60-80dB/30MHz-1GHz |
Surface resistance | <0.07ohms/sq inch |
Permanent deformation | < 10% |
Temperature range | -10~110°c |
Flammability | UL 94(HF-1) |
Compression | 30-50% |
Application for foam gasket with conductive adhesive tape Widely used in electronic box,case,interior chassis, industrial equipment, notebook PC, mobile communication devices,medical equipment, RF door and MRI door etc.

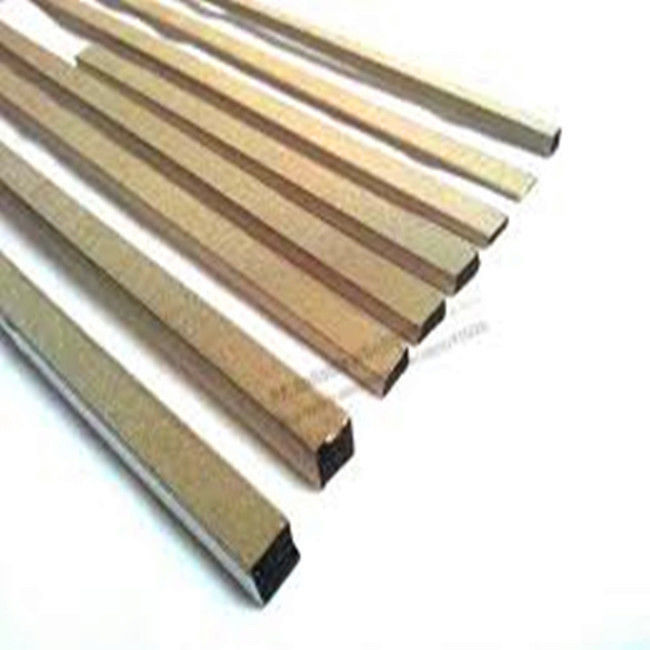

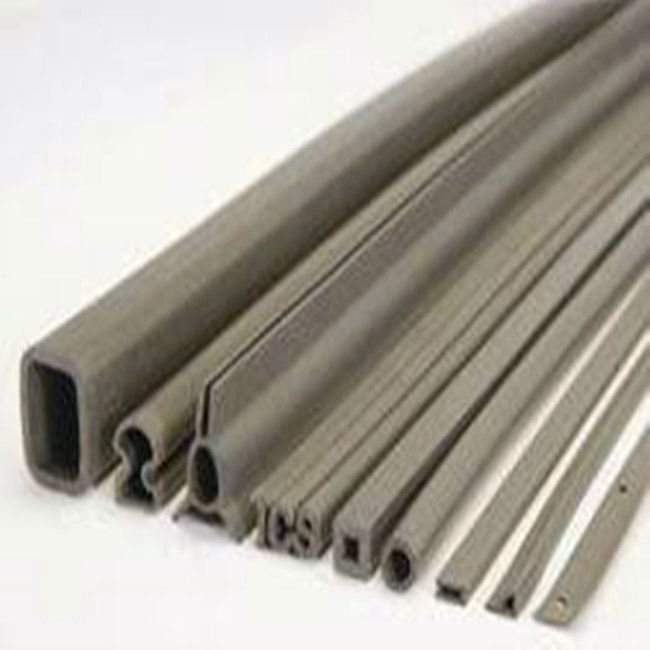

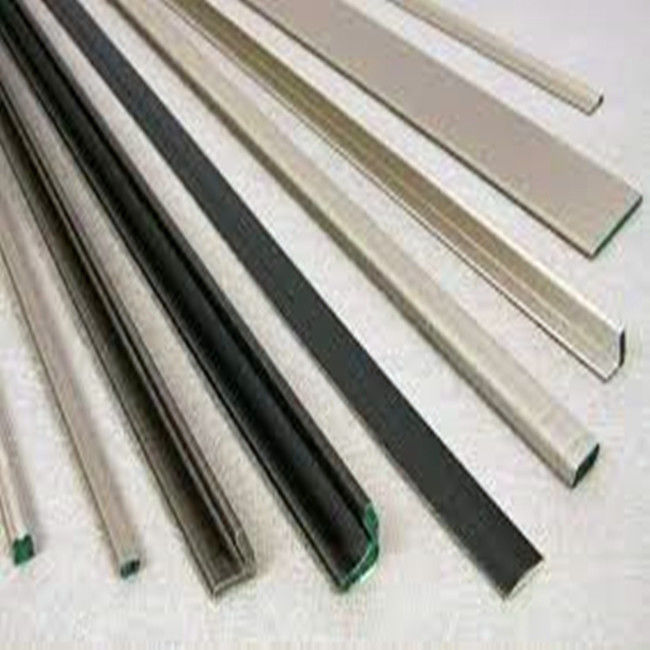

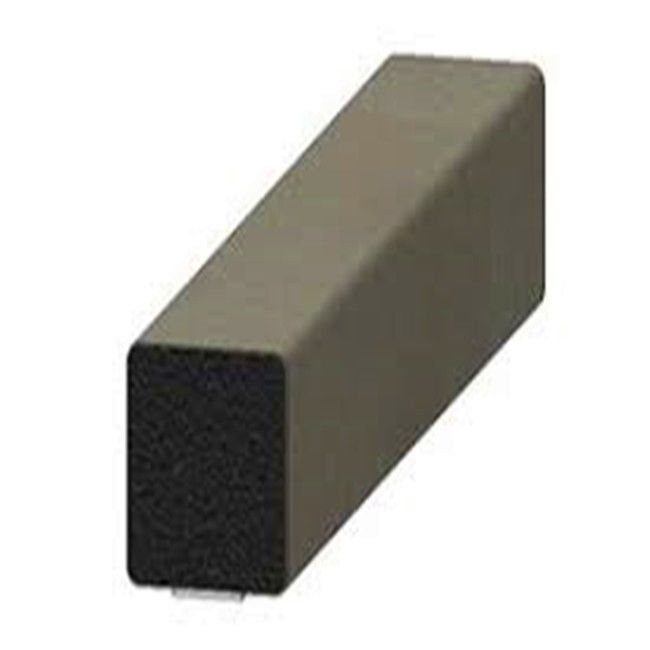

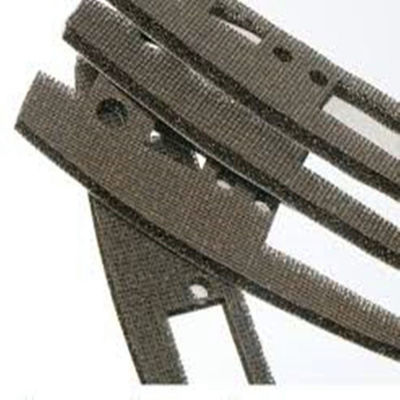

Type for foam gasket with conductive adhesive tape
Other information for conductive foam gasket with adhesive
Foam gasket | |
MOQ | 50M |
Delivery time | 5-7days |
Payment Terms | T/T, Paypal, Western Union |
Longest dimension cut | 1.22m/pcs |
Place of region | China |
