Polyurethane Magnetic RF Pyramid Absorber Foam Microwave Absorbing Sheet

Polyurethane Magnetic RF Pyramid Absorber Foam Microwave Absorbing Sheet

Products - Pyramid Absorber
  • Highlight

    Magnetic RF Absorber Foam

    ,

    Polyurethane RF Absorber Foam

    ,

    Pyramid Microwave Absorbing Sheet

  • Size
    600*600 Or Customized
  • Height
    10 30 50 80 100
  • Color
    Blue
  • Reflectivity
    10-50dB
  • Customized
    Accept
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Haozhuo
  • Certification
    CE RoHS
  • Model Number
    HZ series
  • Minimum Order Quantity
    >=1 Square Meters
  • Price
    $50.00
  • Packaging Details
    carton
  • Supply Ability
    1000000 Square Meter/Square Meters per Week

Polyurethane Magnetic RF Pyramid Absorber Foam Microwave Absorbing Sheet

  • Polyurethane Magnetic RF Pyramid Absorber Foam Microwave Absorbing Sheet
  • Polyurethane Magnetic RF Pyramid Absorber Foam Microwave Absorbing Sheet
  • Polyurethane Magnetic RF Pyramid Absorber Foam Microwave Absorbing Sheet
  • Polyurethane Magnetic RF Pyramid Absorber Foam Microwave Absorbing Sheet
  • Polyurethane Magnetic RF Pyramid Absorber Foam Microwave Absorbing Sheet
  • Polyurethane Magnetic RF Pyramid Absorber Foam Microwave Absorbing Sheet
Get Price Contact Now

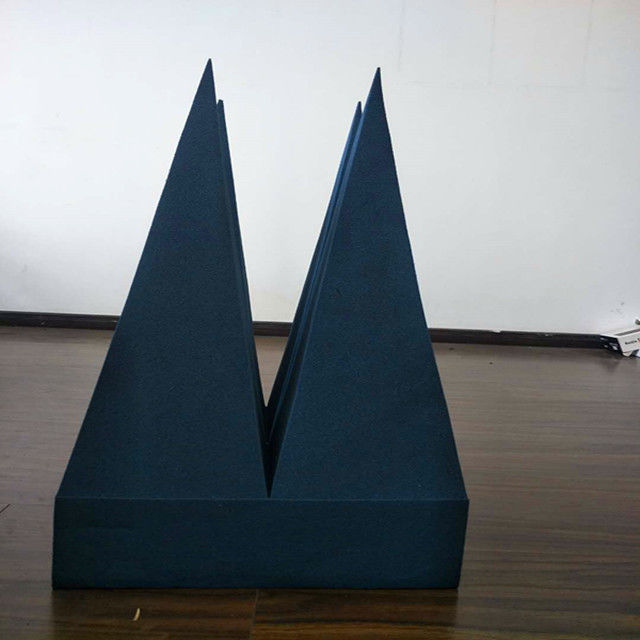

Polyurethane foam pyramid magnetic shielding material for chamber



Adopt space scanning method to measure reflectivity
Traditional “Arch method” can measure the reflectivity in the range of 2-18GHz, beyond which the test precision will be lower. In our technology, microwave absorber measurement adopts new swing arms instrument that has the shape of number “7”, which works by space scanning. This method can cover a broad frequency band of 0.5GHz -70GHz and the scanning angle is multiple dimensions, thus the test precision is well improved.



RF Foam Absorber Types

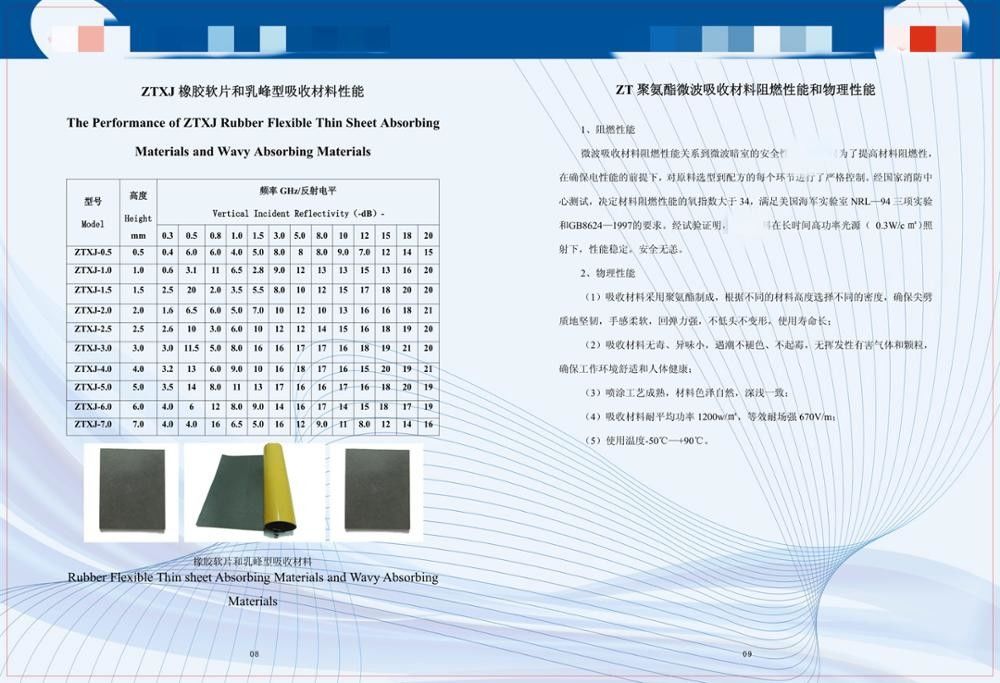

· Rubber sheet micromave absorber

· Carbon-based foam microwave absorber

· Honeycomb & high power microwave absorber

· Sprayable microwave absorber

· Rigid and castable microwave absorber

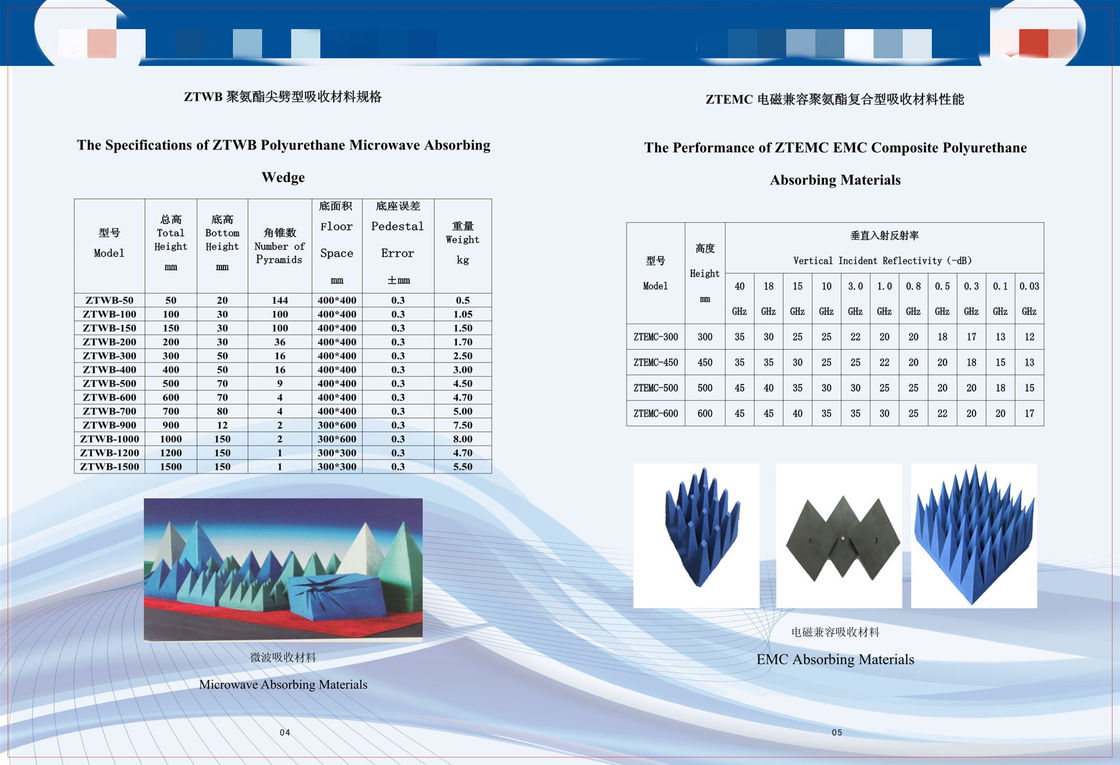

TYPE BASE SIZE NUMBER OF PYRAMIDAL WEIGHT TOTAL HEIGHT BASE HEIGHT PYRAMIDAL HEIGHT

PYRAMIDAL

WIDTH
HZ-30 500*500 36*36 1.1 30 15 15 14
HZ-50 500*500 20*20 1.8 50 20 30 25
HZ-70 500*500 20*20 2.5 70 20 50 25
HZ-100 500*500 13*13 3.3 100 25 75 38
HZ-150 500*500 9*9 4.8 150 30 120 56
HZ-200 500*500 7*7 6.3 200 40 160 71
HZ-300 500*500 5*5 9 300 60 240 100
HZ-400 500*500 4*4 12 400 70 330 125
HZ-500 500*500 3*3 15 500 80 420 167
HZ-600 400*400 2*2 18 600 90 510 200
HZ-700 250*500 1*2 21 700 100 600 250
HZ-800 250*500 1*2 24 800 100 700 250
HZ-1000 334*334 1*1 30 1000 150 850 3



TYPE HEIGHT REFLECTIVITY
40 15 10 3 1.5 0.5 0.3 0.2 0.15
HZ-100 100 50 45 40 30 20
HZ-150 150 50 50 45 33 25
HZ-200 200 50 50 50 37 30 17
HZ-300 300 50 50 50 40 33 20
HZ-400 400 50 50 50 45 40 25 17
HZ-500 500 50 50 50 45 40 30 20 17
HZ-600 600 50 50 50 50 40 30 25 20
HZ-700 700 50 50 50 50 43 35 30 20 17
HZ-800 800 50 50 50 50 45 36 30 20 17
HZ-1000 1000 50 50 50 50 45 38 35 25 20






RF Foam Absorber Basic Information

· Base size: 500*500mm, customized acceptable

· Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm



RF Foam Absorber Features

· The traditional material for anechoic chambers

· Outstanding absorbing over a wide frequency range

· Flexible



About US

  • Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
  • Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
  • Our test equipment: LCR digital bridge/voltage proof tester/insulation resistance tester/spectrum analyzer/inductor tester/standard signal source/shield room/interference intensity tester etc
  • Our product: EMI filter for general purpose/EMI filter for frequency inverter/EMI filter for shielding facility/EMI filter for military application
  • Our advantage: high quality/high cost-effective/short lead time
  • Our service: all products have two years guarantee
  • Our main customers: frequency inverter drive and servo drive system/MRI shielding system/solar inverter system/rail transit system etc

Polyurethane Magnetic RF Pyramid Absorber Foam Microwave Absorbing Sheet 0Polyurethane Magnetic RF Pyramid Absorber Foam Microwave Absorbing Sheet 1Polyurethane Magnetic RF Pyramid Absorber Foam Microwave Absorbing Sheet 2
