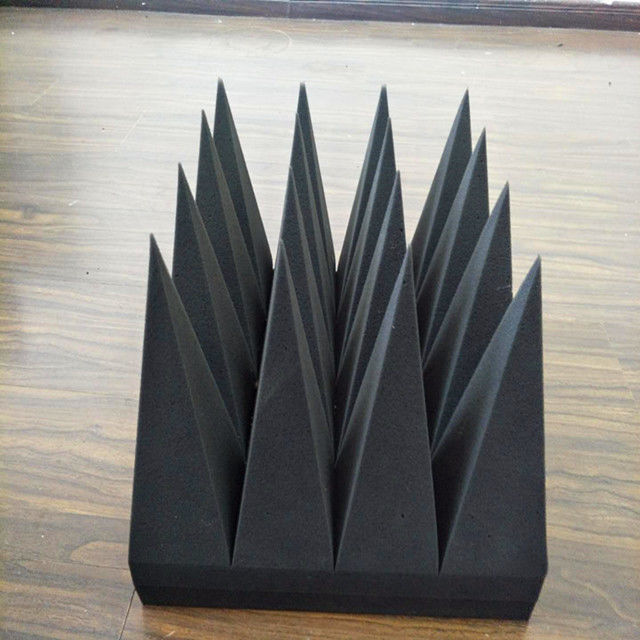

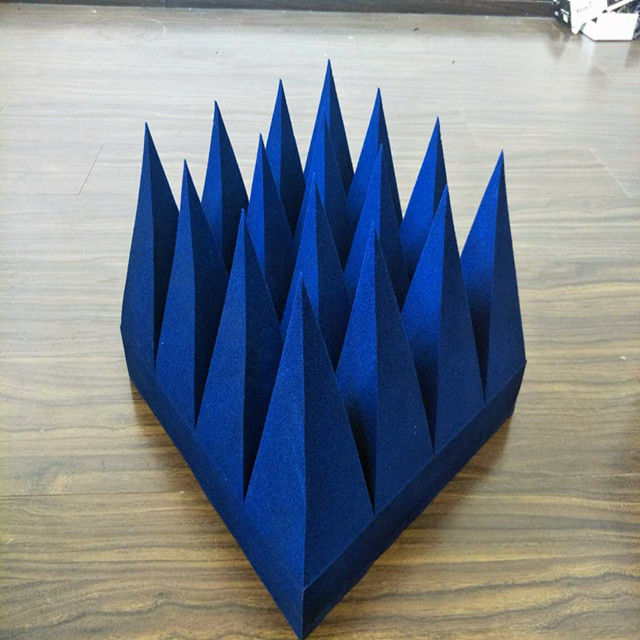

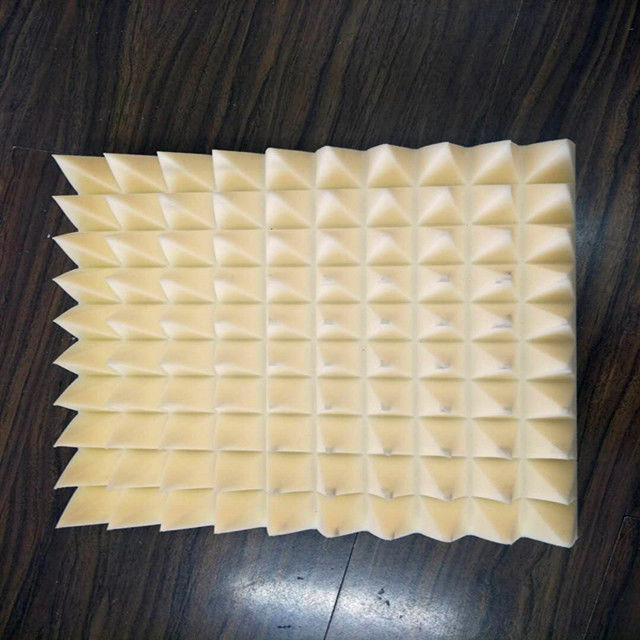

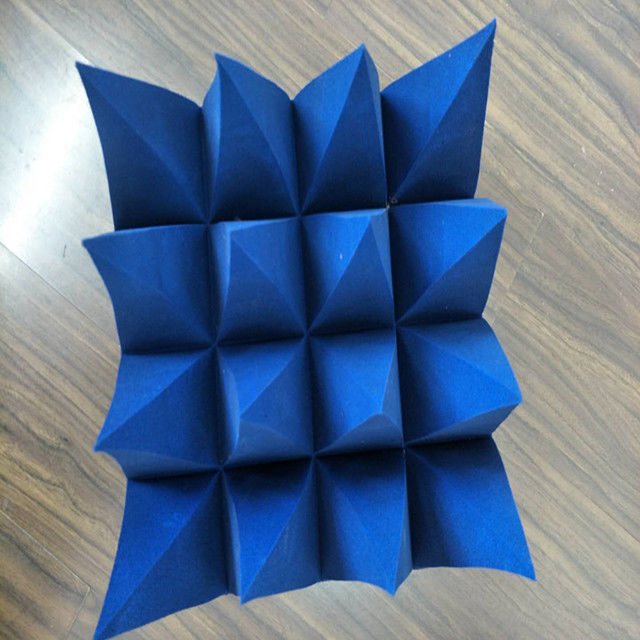

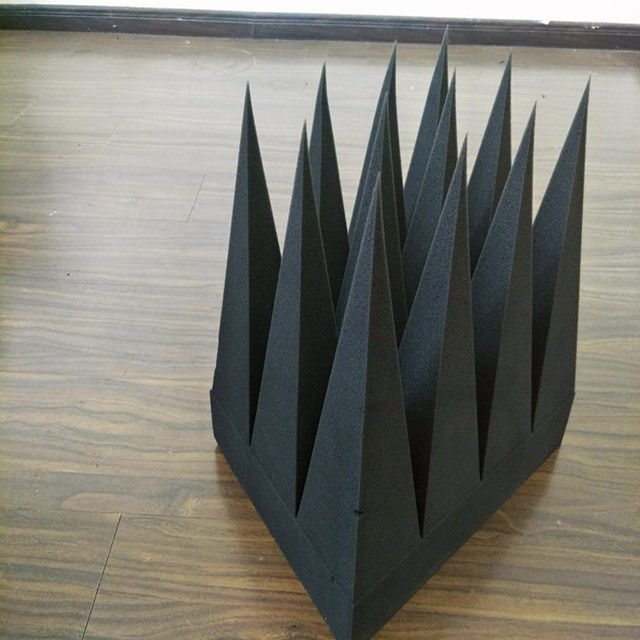

Fire retardant foam pyramid microwave absorber for shielding room
- Input: EPP particles are suctioned into stock bin by suction system, and weighed for storage for use.
- Load pressure: Pre-pressing can improve the deformation caused by transportation and increase the stability of products after molding, too. The pre-pressing system conclude six steps, that is, venting, weighing, suction, setting parameters, starting, and discharging.
- Molding: Mould is designed according to the shape of absorber, here the foam absorber is pyramid shape. Before molding, following steps should to be done to get best molding condition: fixing mould, adjusting mould, setting parameters, pre-heating, suction and discharging. In molding process, it includes: closing moulds, suction, steam heating, cooling and stabilization, demould.
- Drying: The surface of products taken out from mould has vapor and the product inside contains residual water. So drying is needed to ensure stable dimension.
- Post-process: Smooth the edges and corners, correct local deformation.
RF Foam Absorber Types
· Rubber sheet micromave absorber
· Carbon-based foam microwave absorber
· Honeycomb & high power microwave absorber
· Sprayable microwave absorber
· Rigid and castable microwave absorber
| TYPE |
BASE SIZE |
NUMBER OF PYRAMIDAL |
WEIGHT |
TOTAL HEIGHT |
BASE HEIGHT |
PYRAMIDAL HEIGHT |
PYRAMIDAL
WIDTH
|
| HZ-30 |
500*500 |
36*36 |
1.1 |
30 |
15 |
15 |
14 |
| HZ-50 |
500*500 |
20*20 |
1.8 |
50 |
20 |
30 |
25 |
| HZ-70 |
500*500 |
20*20 |
2.5 |
70 |
20 |
50 |
25 |
| HZ-100 |
500*500 |
13*13 |
3.3 |
100 |
25 |
75 |
38 |
| HZ-150 |
500*500 |
9*9 |
4.8 |
150 |
30 |
120 |
56 |
| HZ-200 |
500*500 |
7*7 |
6.3 |
200 |
40 |
160 |
71 |
| HZ-300 |
500*500 |
5*5 |
9 |
300 |
60 |
240 |
100 |
| HZ-400 |
500*500 |
4*4 |
12 |
400 |
70 |
330 |
125 |
| HZ-500 |
500*500 |
3*3 |
15 |
500 |
80 |
420 |
167 |
| HZ-600 |
400*400 |
2*2 |
18 |
600 |
90 |
510 |
200 |
| HZ-700 |
250*500 |
1*2 |
21 |
700 |
100 |
600 |
250 |
| HZ-800 |
250*500 |
1*2 |
24 |
800 |
100 |
700 |
250 |
| HZ-1000 |
334*334 |
1*1 |
30 |
1000 |
150 |
850 |
3 |
| TYPE |
HEIGHT |
REFLECTIVITY |
| 40 |
15 |
10 |
3 |
1.5 |
0.5 |
0.3 |
0.2 |
0.15 |
| HZ-100 |
100 |
50 |
45 |
40 |
30 |
20 |
|
|
|
|
| HZ-150 |
150 |
50 |
50 |
45 |
33 |
25 |
|
|
|
|
| HZ-200 |
200 |
50 |
50 |
50 |
37 |
30 |
17 |
|
|
|
| HZ-300 |
300 |
50 |
50 |
50 |
40 |
33 |
20 |
|
|
|
| HZ-400 |
400 |
50 |
50 |
50 |
45 |
40 |
25 |
17 |
|
|
| HZ-500 |
500 |
50 |
50 |
50 |
45 |
40 |
30 |
20 |
17 |
|
| HZ-600 |
600 |
50 |
50 |
50 |
50 |
40 |
30 |
25 |
20 |
|
| HZ-700 |
700 |
50 |
50 |
50 |
50 |
43 |
35 |
30 |
20 |
17 |
| HZ-800 |
800 |
50 |
50 |
50 |
50 |
45 |
36 |
30 |
20 |
17 |
| HZ-1000 |
1000 |
50 |
50 |
50 |
50 |
45 |
38 |
35 |
25 |
20
|
RF Foam Absorber Basic Information
· Base size: 500*500mm, customized acceptable
· Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm
RF Foam Absorber Features
· The traditional material for anechoic chambers
· Outstanding absorbing over a wide frequency range
· Flexible
