1000vdc Medical Grade  Electronics Rfi Emi Filter Low Pass

1000vdc Medical Grade Electronics Rfi Emi Filter Low Pass

  • High Light

    Low Pass Electronics RFI EMI Filter


    1000VDC RFI EMI Filter


    1000VDC rfi power line filter

  • Type
    EMI Filter
  • Transfer Function
    Low Pass
  • Package Type
    Throught Hole
  • Nominal Center Frequency
  • 3dB Bandwidth
  • Insertion Loss
  • Input Impedance
  • Stopband Attenuation
  • Rated Voltage
  • Rated Current
  • Operating Frequency
  • Application
    Rf Shielding Room
  • Port
  • Place of Origin
  • Brand Name
  • Certification
    CE RoHS
  • Model Number
  • Minimum Order Quantity
    >=1 Pieces
  • Price
  • Packaging Details
    1 pcs in one carton the gross weight is about 20Kg
  • Supply Ability
    100 Piece/Pieces per Week

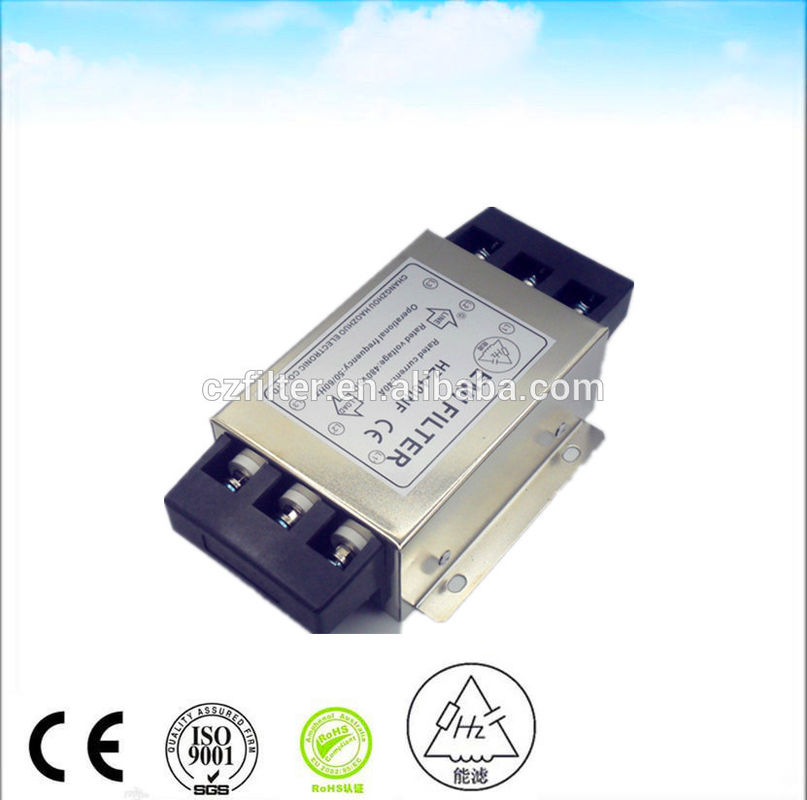

1000vdc Medical Grade Electronics Rfi Emi Filter Low Pass

250VAC 70A emi power line filter rf shielding

Because EMI filters only protect against conducted EMI, they often pair with shields that block radiated EMI. An unshielded EMI filter can still transmit noise through the air to damage the device. Noise can get emitted from a wire on one side of the EMI filter and then travel to the device by recoupling with the wire on the other side.


Adding a shield at the attachment point of the electromagnetic interference filter can effectively block all forms of EMI. However, if there is only a small length of conductor between the filter and the source of EMI, using a filter alone can be sufficient.


Our EMI filters Product Description
Voltage Drop Less than 1V
Overload 140% of rated current for 15 minutes
Harmonic Distortion Less than 2% @ full rated current
Leakage Current ≤0.2A@380/230VAC and 50Hz
Dielectric Withstanding Voltage 1000VDC (line to line) 1000VDC (line to case)
DC Insulation Resistance As Per MIL-STD-202 Method 202
Terminal Strength As Per MIL-STD-202 Method 211
Temperature Rise As Per MIL-F-15733
Insertion Loss ≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
Climatic Classification 25/070/21


EMI Filter Applications

Military: EMI filters for military applications specifically meet regulations and compliance standards for EMC of military devices. These reliable EMI filters protect against damage to aerospace and military communication systems for secure operations. EMI filters designed for HEMP protection are also available to protect against EMI threats.

Medical-grade EMI filters: Medical-grade EMI filters meet current requirements for medical applications and protect sensitive medical equipment from damage. EMI filters for MRI rooms are purpose-built to create a secure test chamber free of EMI from lighting, intercoms and other sources of outside noise. Effective and reliable EMI filters for medical applications can be life-saving protection against electromagnetic noise interference.

1000vdc Medical Grade  Electronics Rfi Emi Filter Low Pass 0
1000vdc Medical Grade  Electronics Rfi Emi Filter Low Pass 1
Our Company
  • We are a professional and famous EMI filter manufacturer.
  • Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
  • Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
