1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding

1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding

  • Highlight

    1A signal emi filter

    ,

    1000VDC signal emi filter

    ,

    Low Pass rf emi filter

  • Type
    EMI Filter
  • Transfer Function
    Low Pass
  • Nominal Center Frequency
    50/60Hz
  • 3dB Bandwidth
    4k
  • Insertion Loss
    100db
  • Input Impedance
    50ohm
  • Stopband Attenuation
    70-100dB
  • Rated Voltage
    250VDC
  • Rated Current
    1A
  • LINES NUMBER
    2
  • Application
    Internet
  • Test Voltage
    1000VDC
  • Insulation Resistance
    100M Ohm @ 500VDC
  • Port
    Changzhou Shanghai Hangzhou Or Others
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Nenglv
  • Model Number
    SF-V8
  • Price
    $200.00/pieces >=1 pieces
  • Packaging Details
    8 PCS IN ONE CARTON <br>THE GROSS WEIGHT OF ONE CARTON IS ABOUT 20Kg
  • Supply Ability
    10000 Piece/Pieces per Week

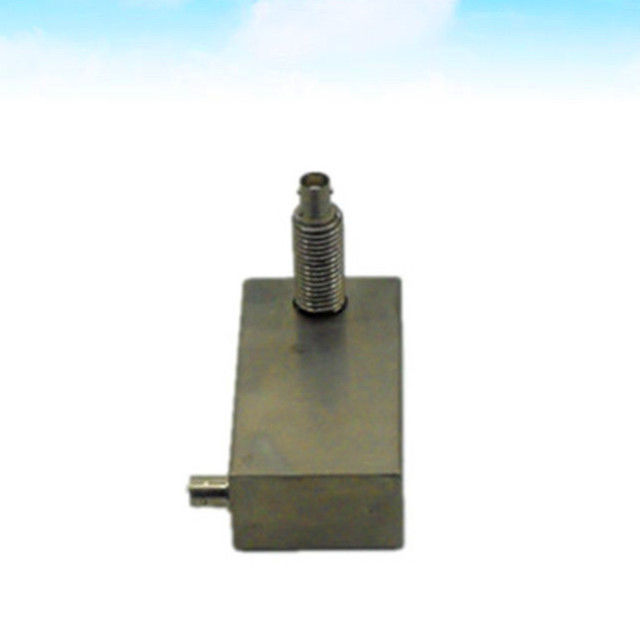

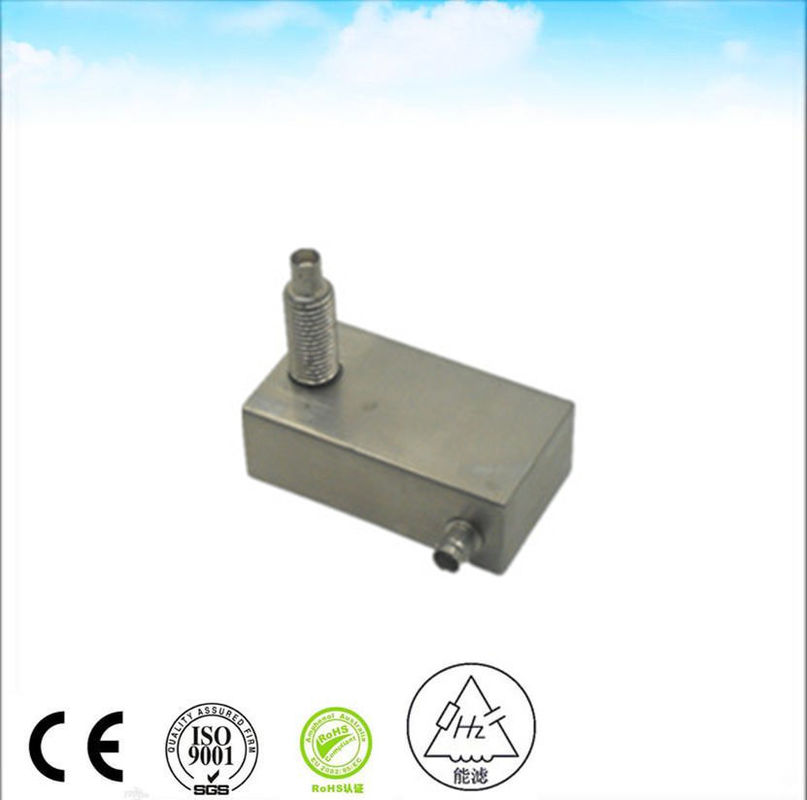

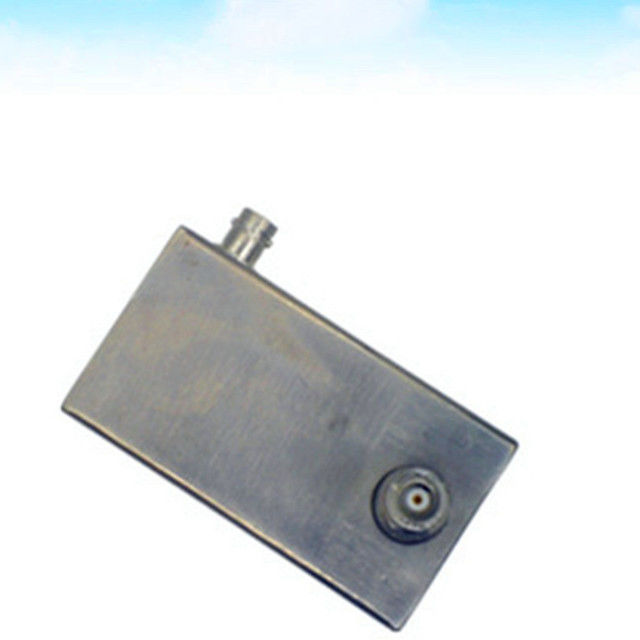

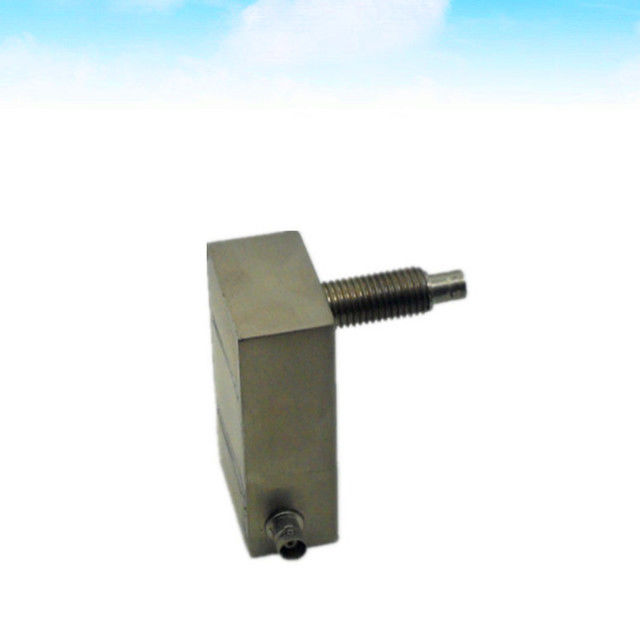

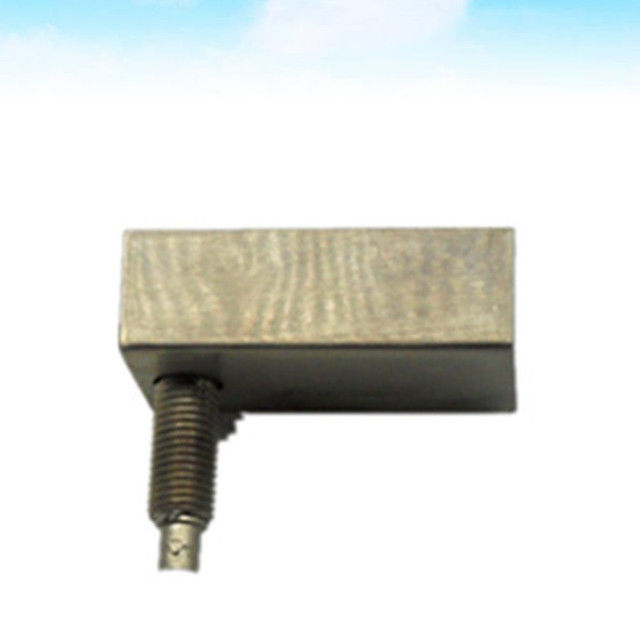

1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding



EMC filter for RF testing chamber

Product Description:

Filters are specially designed for anechoic chamber, shielded enclosure, Electromagnetic shelter, shielded chamber and other Shield Facilities.



Filter classification:

A: Single Phase EMI Filter: Use for single phase Power supply(110VAC, 120VAC, 220VAC, 250VAC, 277VAC and DC Voltage)

B: Three phase EMI filter: Use for three phase Power supply(380VAC, 400VAC, 440VAC, 480VAC and DC Voltage)

C: Signal EMI Filter: Use for Fire Alarm systems, Telephone, fax, AC/DC switch signal, monitor and door access control system, Video signal control etc.





Custom design acceptable, ODM/OEM welcome.

Product Description
Product Description



RATED VOLTAGE
250VAC
RATED CURRENT
1A
LINE NUMBER
1

PASS BAND
7K



1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 0
DIMENSION

1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 1
1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 2




1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 3
1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 4





Our Company
Our Company

We are a professional and famous EMI filter manufacturer.
Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
Our test equipment: LCR digital bridge/voltage proof tester/insulation resistance tester/spectrum analyzer/inductor tester/standard signal source/shield room/interference intensity tester etc

1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 5
1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 6
1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 7
1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 8

Certifications
Certifications
1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 9
1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 10
1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 11
1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 12

Packing
Packing
CARTON AND WOODEN CASE

1000VDC Low Pass 1A Video Emi Signal Line Filters For Rf Shielding 13
