3A AC EMI Filter For Air Conditioning Signal Line

Signal Line Filters
January 27, 2026
Category Connection: Signal Line Filters
Chat Now Contact Us
Tags:
#RFI EMI Signal Line Filters #Signal Line Filters #Rfi Power Line Filter Single Phase
Brief: This video demonstrates the setup, operation, and key moments during typical use of the 2 Lines 3A AC EMI Filter for air conditioning signal lines. You'll see how this filter provides RF shielding and ensures electromagnetic compatibility for HVAC systems, helping them function without interfering with other devices. We'll walk through installation best practices to optimize performance and meet global compliance standards.
Related Product Features:
  • Designed for air conditioning signal lines with 2-line configuration and 3A rated current.
  • Provides effective RF shielding and electromagnetic interference (EMI) filtration for HVAC equipment.
  • Rated voltage of 250VAC with a pass band of 7K for reliable signal conditioning.
  • Helps equipment meet electromagnetic compatibility (EMC) requirements for global regulations.
  • Enables proper functioning of devices by preventing interference with other electronic systems.
  • Supports compliance with National Electric Code (NEC) and local electrical standards.
  • Can be used in parallel configurations with identical models for higher current applications.
  • Optimizes performance through correct installation following industry best practices.
FAQs:
  • What is the current rating of this EMI filter and how is it determined?
    This filter has a 3A rated current. To determine current rating requirements, consider the maximum RMS amperes rating of the system it connects to, and the filter must meet or exceed any breaker rating present.
  • Can I connect multiple filters in parallel for higher current applications?
    Yes, you can connect identical filter models in parallel to achieve higher current ratings, provided the connection allows equal current sharing and follows NEC and local electrical codes.
  • Why is EMI filtering important for air conditioning systems?
    EMI filters prevent electromagnetic interference, ensuring your air conditioning system functions as intended without disrupting other devices, while helping meet global EMC compliance requirements.
  • What voltage and line configuration does this filter support?
    This filter supports 250VAC and features a 2-line configuration, making it suitable for standard air conditioning signal line applications.
Related Videos
EMC EMI Signal Filter For AC Signal Lines 00:09

EMC EMI Signal Filter For AC Signal Lines
Signal Line Filters
January 27, 2026

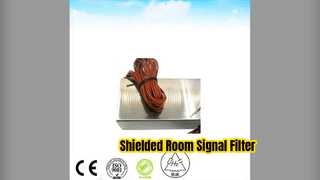

100vdc 1a EMI Signal Filter RF Shielding 00:12
