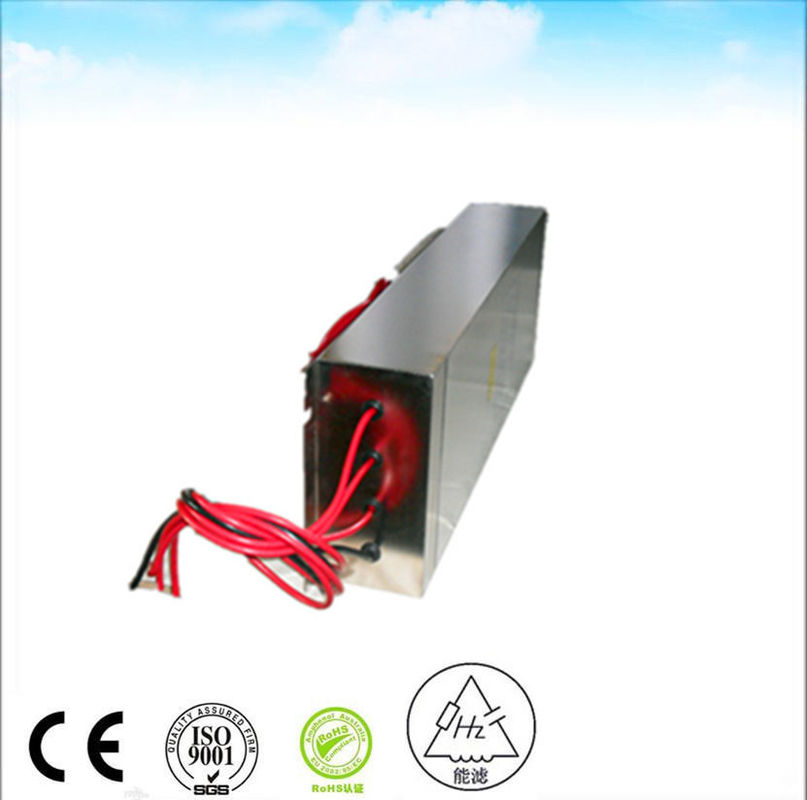

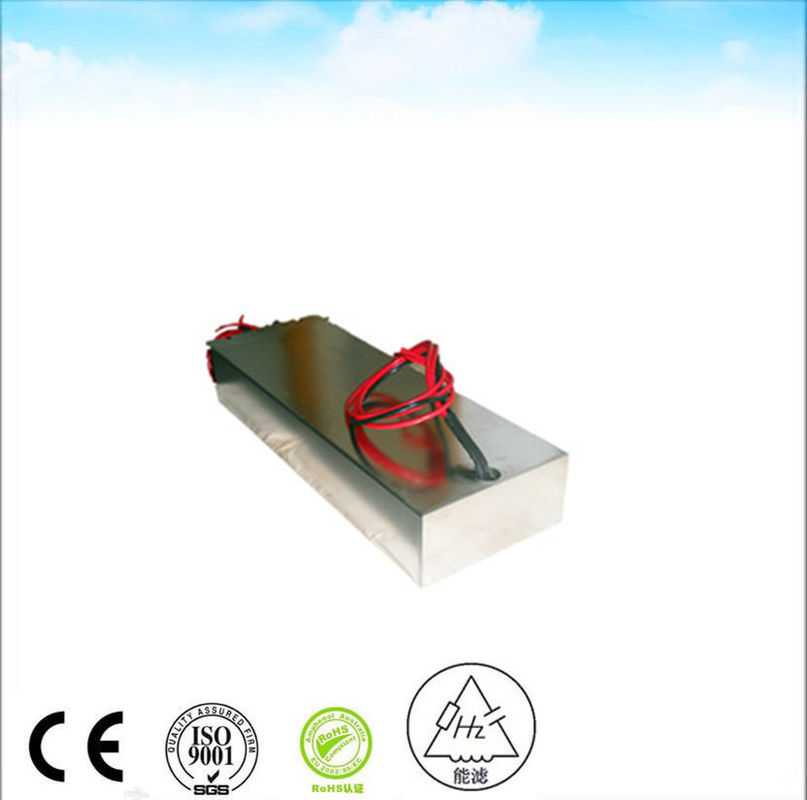

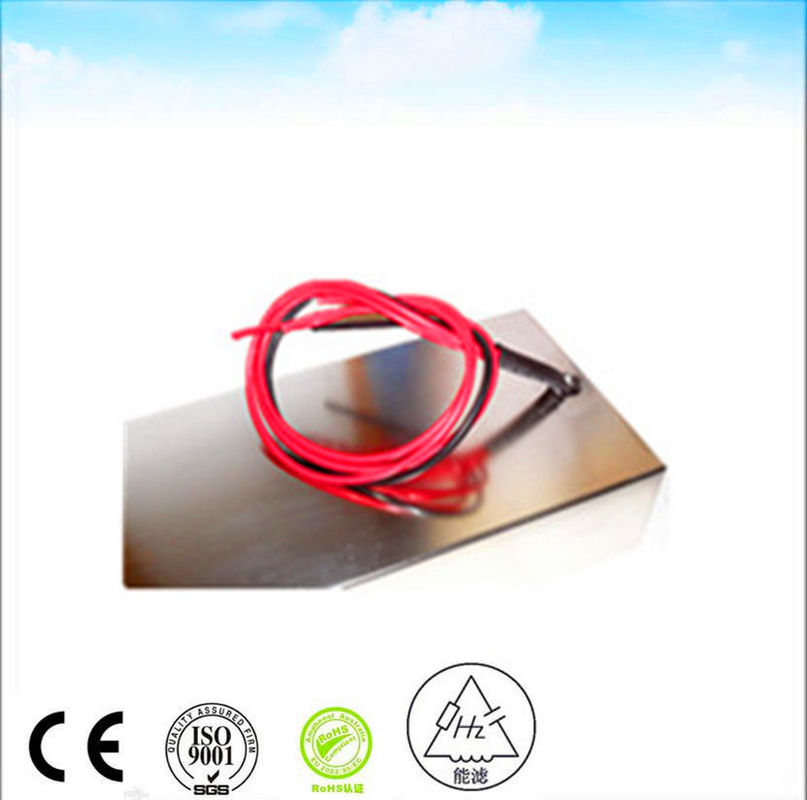

70A Rfi 380vAc Power Line Filter

70A Rfi 380vAc Power Line Filter

  • High Light

    380vAc Power Line Filter

    ,

    Rfi Ac Power Line Filter

    ,

    380vAc Power Noise Filter

  • Type
    EMI Filter
  • Transfer Function
    Low Pass
  • Package Type
    Throught Hole
  • Nominal Center Frequency
    50/60Hz
  • 3dB Bandwidth
    14K
  • Insertion Loss
    100dB
  • Input Impedance
    50ohm
  • Stopband Attenuation
    100dB
  • Rated Voltage
    380VAC
  • Rated Current
    70A
  • Operating Frequency
    50/60Hz
  • Application
    Rf Shielding Room
  • Port
    Shanghai
  • Place of Origin
    China
  • Brand Name
    nenglv
  • Certification
    CE RoHS
  • Model Number
    HZ-4X70C5
  • Minimum Order Quantity
    >=1 Pieces
  • Price
    $450.00
  • Packaging Details
    1 pcs in one carton the gross weight is about 30Kg
  • Supply Ability
    100 Piece/Pieces per Week

70A Rfi 380vAc Power Line Filter

380vac 70A emi power line filter rf shielding



There are a great deal of electronic devices used in our lives, such as mobile phones, AV devices, personal computers, copy machines, and fax machines. These devices are seldom free from electric noise generation. Devices that insufficiently control noise can at times cause trouble or large social problems.




Product Description

RATED VOLTAGE
380 VAC
RATED CURRENT
 100 A
Voltage Drop
Less than 1V
Overload
140% of rated current for 15 minutes
Harmonic Distortion
Less than 2% @ full rated current
Leakage Current
≤0.2A@380/230VAC and 50Hz
Dielectric Withstanding Voltage
1000VDC (line to line) 1000VDC (line to case)
DC Insulation Resistance
 As Per MIL-STD-202 Method 202
Terminal Strength
As Per MIL-STD-202 Method 211
Temperature Rise
 As Per MIL-F-15733
Insertion Loss
≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
Climatic Classification
25/070/21
70A Rfi 380vAc Power Line Filter 0
