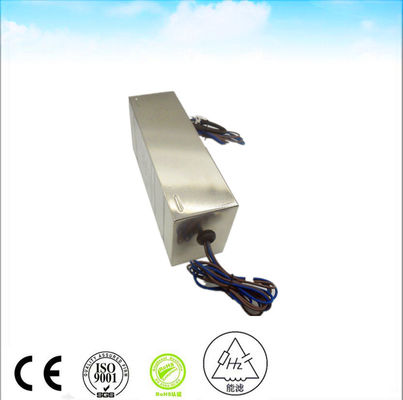

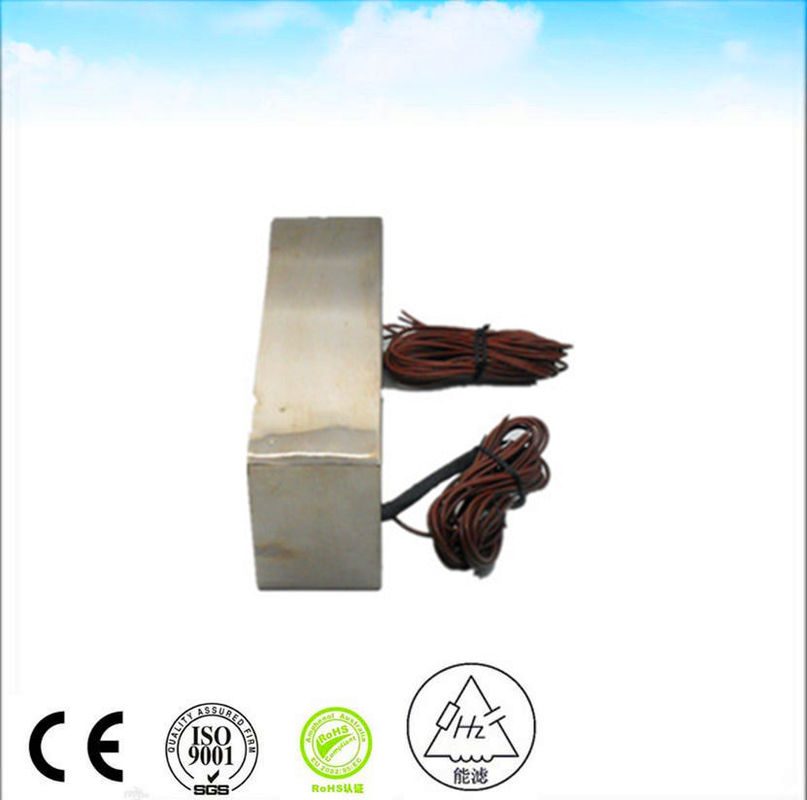

Lvds 1 Single Phase Emi Filter Design 240v Power Line Filter For Test Room

MOQ: >=1 Pieces
Price: $100.00
Standard Packaging: 8 PCS IN ONE CARTON THE GROSS WEIGHT OF ONE CARTON IS ABOUT 10KG
Supply Capacity: 10000 Piece/Pieces per Week
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Nenglv
Certification
ce
Model Number
SF-56KB
Type:
EMI Filter
Transfer Function:
Low Pass
Package Type:
Throught Hole
Nominal Center Frequency:
50/60Hz
3dB Bandwidth:
4k
Insertion Loss:
100db
Input Impedance:
50ohm
Stopband Attenuation:
70-100dB
Rated Voltage:
250VDC
Rated Current:
1A
LINES NUMBER:
2
Application:
TELEPHONE
Test Voltage:
L-G 1000VDC
Resulation Resistance:
1000M Ohm@ 500VDC
Shielding Effective:
100dB @ 14K-10GHz
Port:
Changzhou Shanghai Hangzhou Or Others
Highlight:

single phase emi emc line filter

,

single phase emi filter design

,

240v Power Line Filter

Product Description
1A Signal Emi Filter For Telephone Rf Shielding Room

Cheap 1A EMI power line filter, 1-phase 1-stage, rated voltage 115/250V AC 50/60Hz, small size and lead wire connection. High performance line filter can effectively suppress the electromagnetic noise between line to line and line to ground. EMI power line filter, single-phase single-stage, rated current 1A and rated voltage 115/250V AC 50/60Hz, is designed for commonly use in line filtering or noise filtering of various electrical equipment, electronics, household appliances, office equipment and other equipment.


Product Description
RATED VOLTAGE 250 VDC
RATED CURRENT 1A
LINES NUMBER 2
PASS BAND 7K



What is a power line filter?

Power line filter is electrical equipment which effectively filters particular frequency point in the power line or the frequency out of the particular frequency point. Power line filter performance is to get a certain frequency power supply signal or power supply signal after eliminating a certain frequency through connecting power supply filter in power line. Based on this performance of power line filter, a square wave group or compound noise wave could be converted into a certain frequency sine wave through power line filter.



Power supply filter is a passive bi-directional network, that is, one end is power supply, and the other end is load. Power supply filter principle is a impedance adaption network: the larger the impedance mismatching is (between “power filter input&output” and “power & load” side), the more effective the attenuation of electrical magneto interference is.



Lvds 1 Single Phase Emi Filter Design 240v Power Line Filter For Test Room
Lvds 1 Single Phase Emi Filter Design 240v Power Line Filter For Test Room

Tags:

emi rfi ac power line filters,

signal emi filter,

Emi Filter 5A
