Emc Test Rf Anechoic Chamber RF SHIELDING ROOM EMC CHAMBER EMC ANECHOIC CHAMBER
  • name
  • name
  • name
  • name
  • name
  • name

Emc Test Rf Anechoic Chamber RF SHIELDING ROOM EMC CHAMBER EMC ANECHOIC CHAMBER

MOQ: >=1 Sets
Price: $15,000.00
Supply Capacity: 1 Set/Sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
haozhuo
Certification
CE RoHS
Model Number
customized
Type:
RC Filter
Transfer Function:
Low Pass
Testing Standard:
Customized
EMC Chamber Type:
Semi-EMC Chamber Or Full EMC Chamber
Testing Service:
Testing Service Is Accept
Warranty:
1 Year
RF Chamber Door Size:
Standard Size 2.38*1.2M, Customized Accepted
RF Shield Room Panel:
2mm Or 3mm Galvanized Steel Panel
RF Shielding Room Packing:
Wooden Carton Packing
Anechoic Chamber Delivery Time:
3-5 Weeks
RF Room Attenuation:
14KHz-40GHz More Than 100dB
Port:
Shanghai
Highlight:

anechoic noise test chamber

,

Anechoic Test Chamber

,

Rf Anechoic Chamber

Product Description

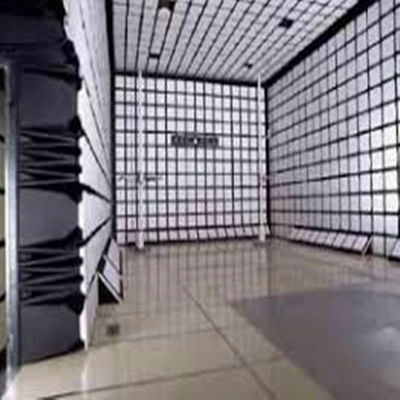

EMC RF shielded Anechoic Chamber for testing



Anechoic Chamber

Anechoic Chamber Description

we provide Semi-EMC Chamber and Full EMC Chamber for EMC Testing.



An Anechoic Chamber generally consists of an RF shielded room which is either partially or fully lined with RF absorber material. It is used to perform several types of testing and measurements.



our chambers are typically constructed from the modular shielding system.



EMC anechoic test chambers are used by industry to perform radiated emissions and radiated immunity testing of electrical/electronic equipment to various International specifications such as EN 50147 part 2 / ANSI C63.4 / EN55022 / EN61000-4-3 and various CISPR documents.



Chambers are also designed for EMC testing for testing in accordance with military and avionics specifications such as MIL STD 4612E, DO 160 and DEF STD 59-41.



we offers a fully range of anechoic chambers, including:

  • Antenna EMC Testing Chamber
  • Compact Chambers
  • 3 Meter Chambers
  • 5 Meter Chambers
  • 10 Meter Chambers
  • Free Space Chambers
  • MIL-STD Chambers



The types we provided for anechoic chamber room with RF absorber

- Compact chamber

- 3 Meter chamber

- 5 Meter chamber

- 10 Meter  chamber

- Free space chamber

- MIL-STD chamber

- Customized Anechoic chamber acceptable



Shielding performance for anechoic chamber room with RF absorber

Magnetic field 14kHz 75dB
100KHz 100dB
200KHz 110dB
Plane wave 50-103MHz 120dB
Microware 1-10GHz 110dB
10-20GHz 100dB
20-40GHz 80dB





Emc Test Rf Anechoic Chamber RF SHIELDING ROOM EMC CHAMBER EMC ANECHOIC CHAMBER
