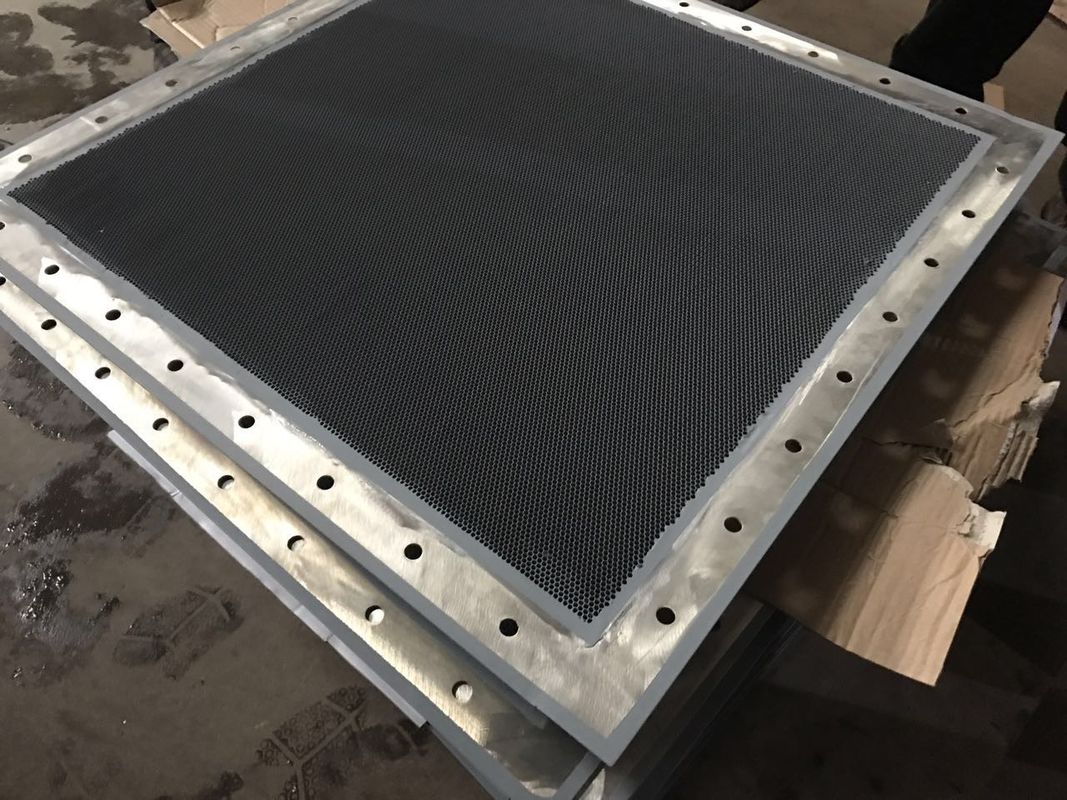

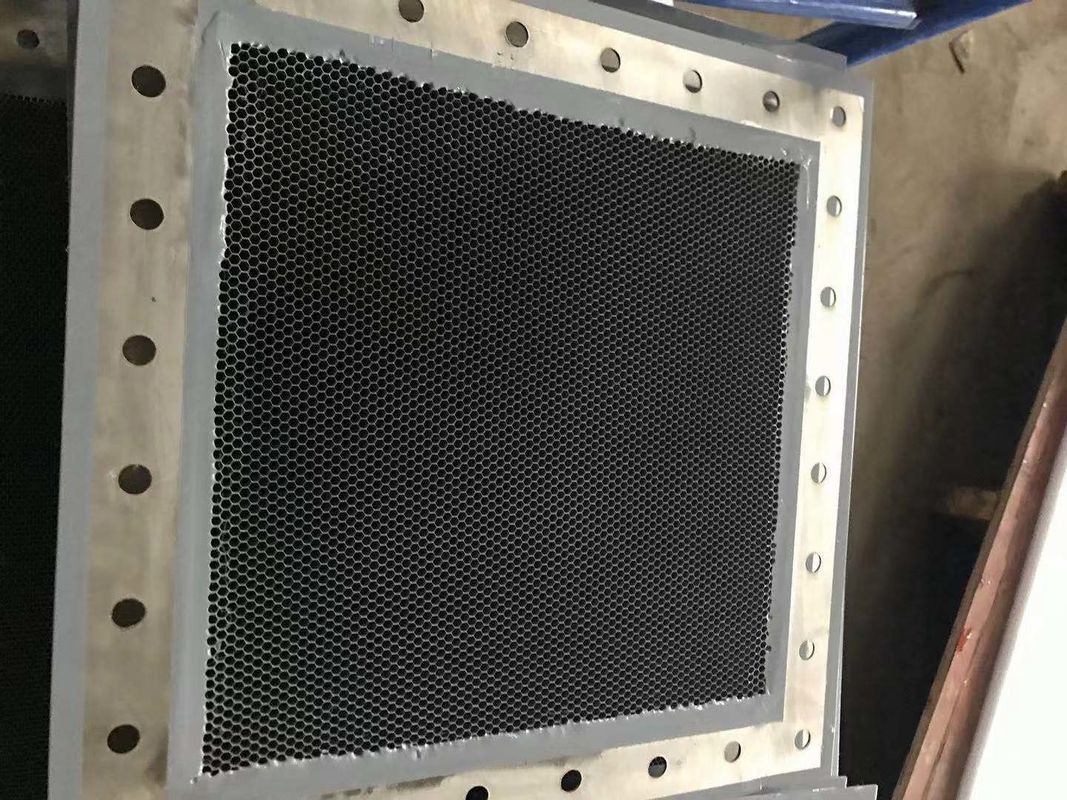

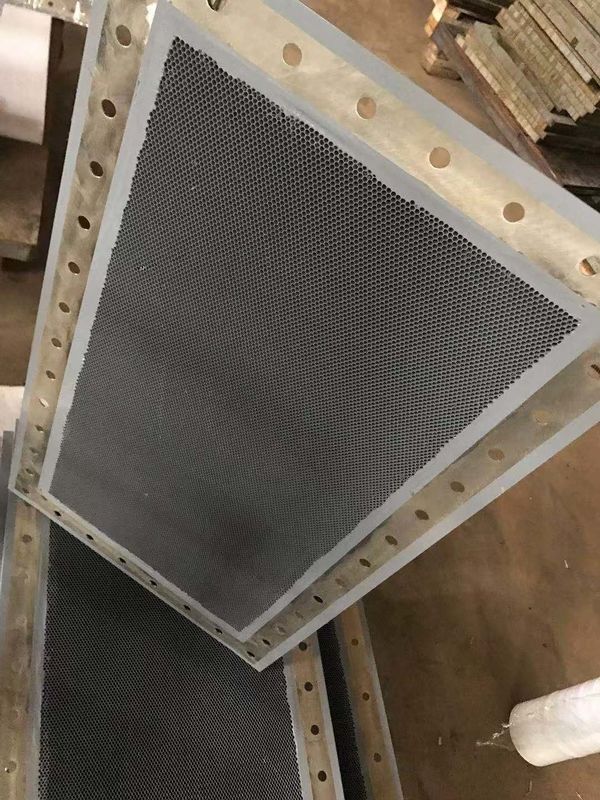

4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room rf shielding room emc chamber anechoic chamber

MOQ: 1 PCS
Price: USD 100 PER PCS
Standard Packaging: CARTON
Supply Capacity: 1000 PCS PER WEEK
Detail Information
Product Description
Detail Information
Place of Origin
P.R.CHINA
Brand Name
HAOZHUO
Certification
CE RoHS
Model Number
V SERIES
Product:
HONEYCOMB VENT
Honeycomb Filter Size::
300x300x25
Material:
Steel
Cell Size:
4.8mm
Frame:
Have
Surface Treatment:
Customized
Thickness:
15mm 20mm 25mm
Application:
Rf Shielding Room
Install Way:
Through Wall
Shielding Effective:
100dB
Highlight:

EMI Honeycomb Vent panel

,

4.8mm EMI Honeycomb Vents

,

300Mm emi vents

Product Description

Steel Honeycomb Vent For Rf Shielding Room High Quality Cell Size 4.8mm



Options

  • Cross-cell honeycomb for extra high shielding performance
  • Slant honeycomb 30°, 45°, 60° for outdoor rainproof applications
  • 45° degrees is the most common implementation
  • Please note, slant honeycombs are available on request
  • Polyurethane filter for dust protection
  • Kick plate for mechanical protection
  • Stainless steel, mild steel or brass versions
  • Cell sizes 1.6mm, 3.2mm, 6.4mm, 9.5mm, 12.7mm, or 19mm (standard 3.2mm)
  • Gaskets for firm connections



Specifications

EMI Honeycomb filter
1. Material:Steel, brass,aluminum
2. W*L: 300x300mm, 300x600mm, 600x600mm
3. thickness: 12.5mm, 25mm, 19mm

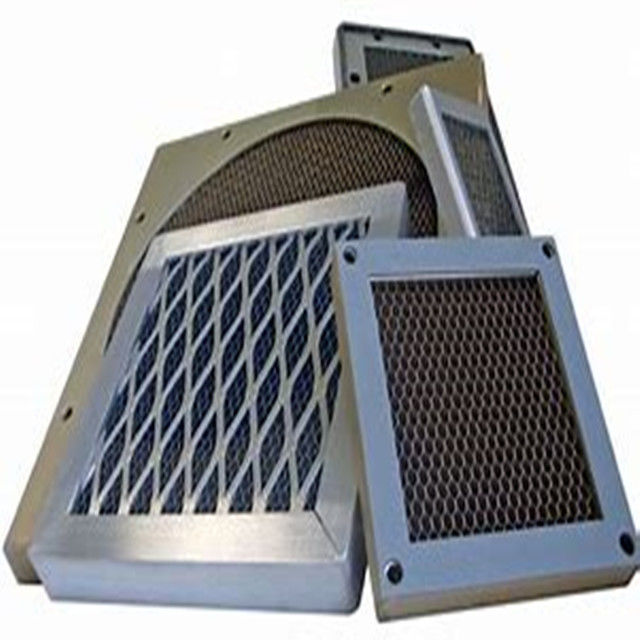

Customized Brass/Steel/Aluminum Honeycomb



Brass/Steel/ Stainless steel honeycomb
1. Material:Steel, brass,stainless steel,aluminum
2. standard size: 300x300mm, 300x600mm
3. Standard cell size: 3.2/4.0/4.8mm

4. MOQ 1 piece



Product Features
Honeycomb filter use for shielding room and cabinet
Materials: Steel, brass, Aluminum, Stainless steel
The waveguide vent provides maximum RF attenuation while allowing optimum airflow
We can also produce various customized specification for civil or military use according to customer`s requirements.
High quality, Reasonable price and Short delivery, sample order accept
Technical Specifications
Honeycomb Standard Thickness(mm) 12.5mm/19mm/25mm/50mm
Honeycomb standard size 300x300/300x600/450x450/600x600mm
Hole size 3.2mm/4.0mm/4.8mm
The frame materials Brass, Steel, Stainless steel
MOQ 1PCS
Shielding Performance
Magnetic field 14KHz≥75dB 150KHz≥100dB
Electric field 200KHz-50MHz≥110dB
Flatwave 50MHz-1GHz≥110dB
Microwave

1GHz-10GHz≥100dB

10GHz-18GHz≥90dB
Tags:

EMI Honeycomb Vent Panel,

Emc shielding vents,

Emi Air Vent Filter
