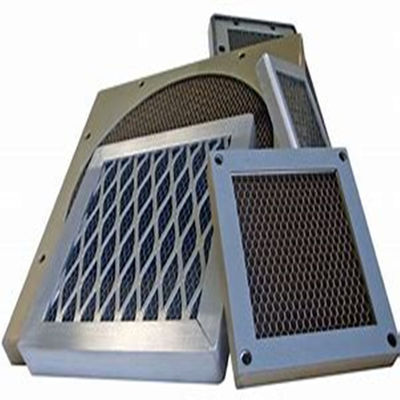

4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room

4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room

Products - Honeycomb Air Vent
  • High Light

    EMI Honeycomb Vent panel

    ,

    4.8mm EMI Honeycomb Vents

    ,

    300Mm emi vents

  • Product
    HONEYCOMB VENT
  • Honeycomb Filter Size
    300x300x25
  • Material
    Steel
  • Cell Size
    4.8mm
  • Frame
    Have
  • Surface Treatment
    Customized
  • Thickness
    15mm 20mm 25mm
  • Application
    Rf Shielding Room
  • Install Way
    Through Wall
  • Shielding Effective
    100dB
  • Place of Origin
    P.R.CHINA
  • Brand Name
    HAOZHUO
  • Certification
    CE RoHS
  • Model Number
    V SERIES
  • Minimum Order Quantity
    1 PCS
  • Price
    USD 100 PER PCS
  • Packaging Details
    CARTON
  • Supply Ability
    1000 PCS PER WEEK

4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room

  • 4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
  • 4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
  • 4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
  • 4.8mm 300x300Mm Steel EMI Honeycomb Air Vents Panel For Mrictxray Room
Get Price Contact Now

Steel Honeycomb Vent For Rf Shielding Room High Quality Cell Size 4.8mm



Options

  • Cross-cell honeycomb for extra high shielding performance
  • Slant honeycomb 30°, 45°, 60° for outdoor rainproof applications
  • 45° degrees is the most common implementation
  • Please note, slant honeycombs are available on request
  • Polyurethane filter for dust protection
  • Kick plate for mechanical protection
  • Stainless steel, mild steel or brass versions
  • Cell sizes 1.6mm, 3.2mm, 6.4mm, 9.5mm, 12.7mm, or 19mm (standard 3.2mm)
  • Gaskets for firm connections



Specifications

EMI Honeycomb filter
1. Material:Steel, brass,aluminum
2. W*L: 300x300mm, 300x600mm, 600x600mm
3. thickness: 12.5mm, 25mm, 19mm

Customized Brass/Steel/Aluminum Honeycomb



Brass/Steel/ Stainless steel honeycomb
1. Material:Steel, brass,stainless steel,aluminum
2. standard size: 300x300mm, 300x600mm
3. Standard cell size: 3.2/4.0/4.8mm

4. MOQ 1 piece



Product Features
Honeycomb filter use for shielding room and cabinet
Materials: Steel, brass, Aluminum, Stainless steel
The waveguide vent provides maximum RF attenuation while allowing optimum airflow
We can also produce various customized specification for civil or military use according to customer`s requirements.
High quality, Reasonable price and Short delivery, sample order accept
Technical Specifications
Honeycomb Standard Thickness(mm) 12.5mm/19mm/25mm/50mm
Honeycomb standard size 300x300/300x600/450x450/600x600mm
Hole size 3.2mm/4.0mm/4.8mm
The frame materials Brass, Steel, Stainless steel
MOQ 1PCS
Shielding Performance
Magnetic field 14KHz≥75dB 150KHz≥100dB
Electric field 200KHz-50MHz≥110dB
Flatwave 50MHz-1GHz≥110dB
Microwave

1GHz-10GHz≥100dB

10GHz-18GHz≥90dB
