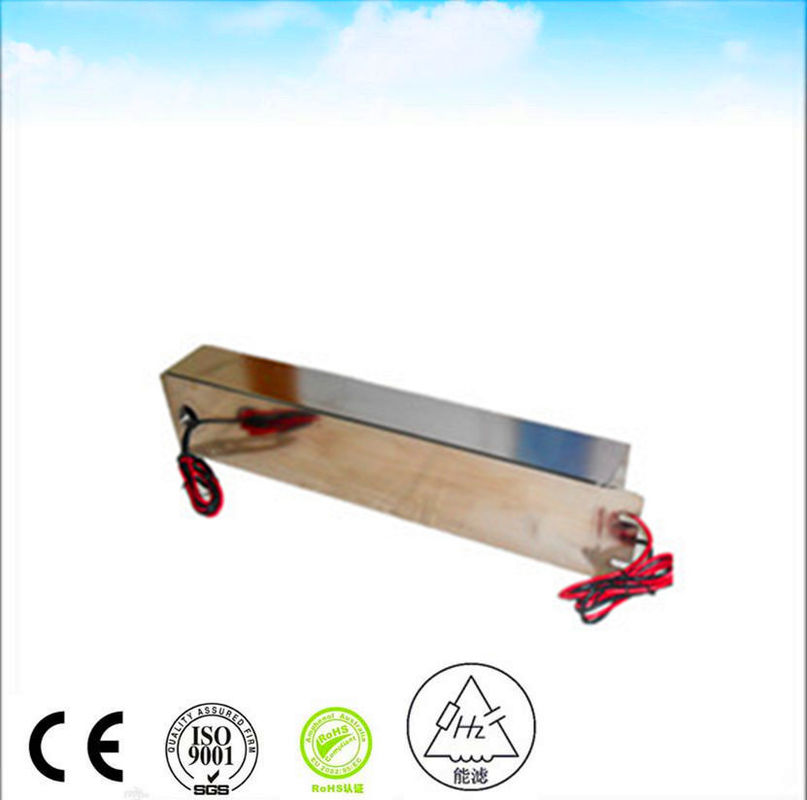

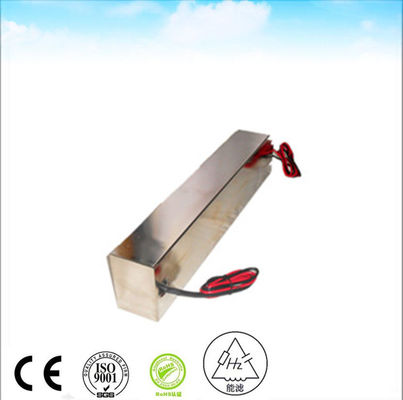

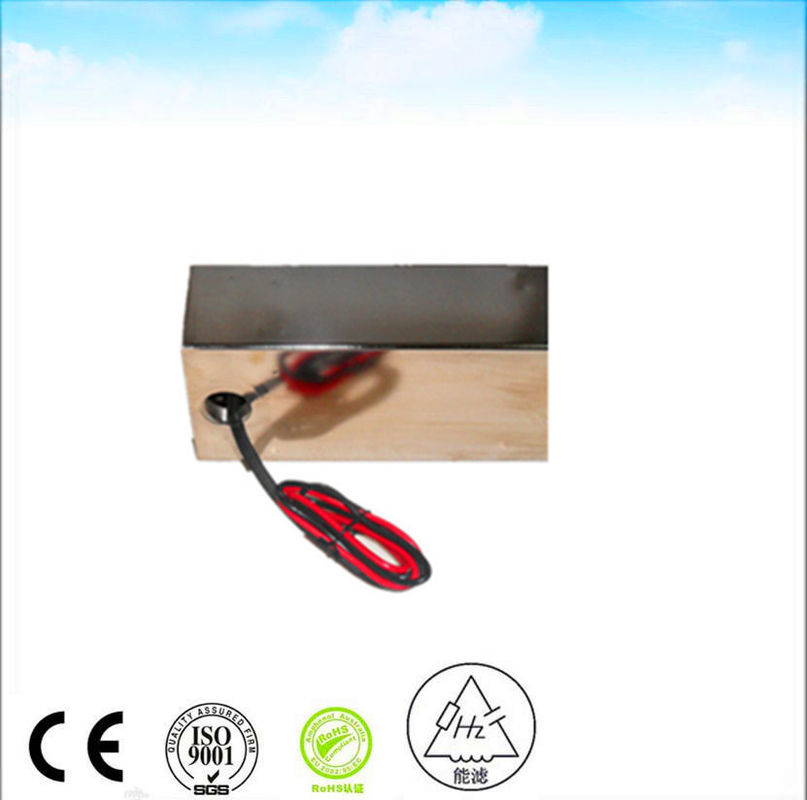

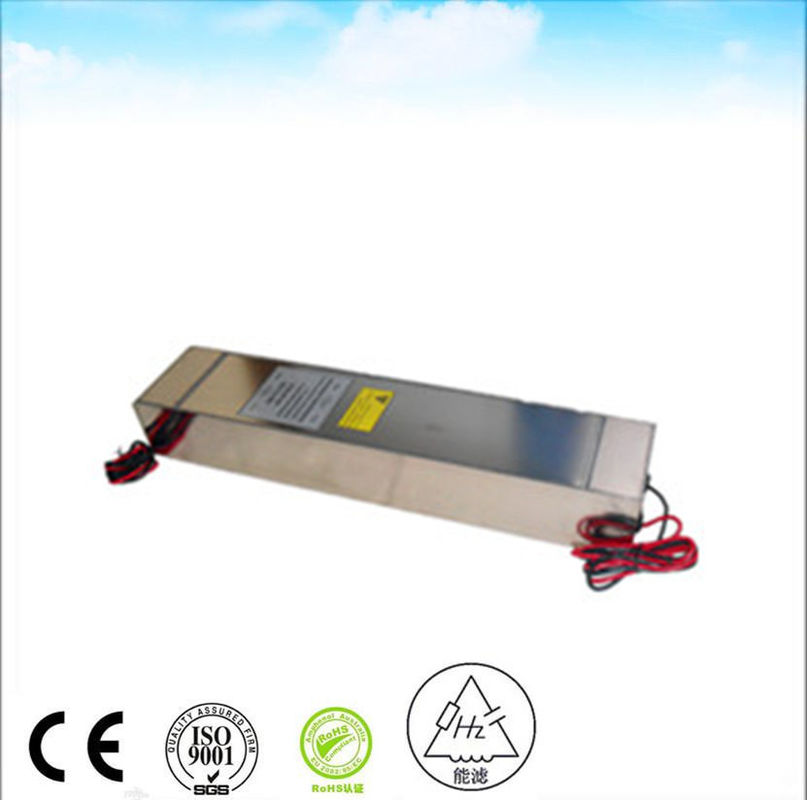

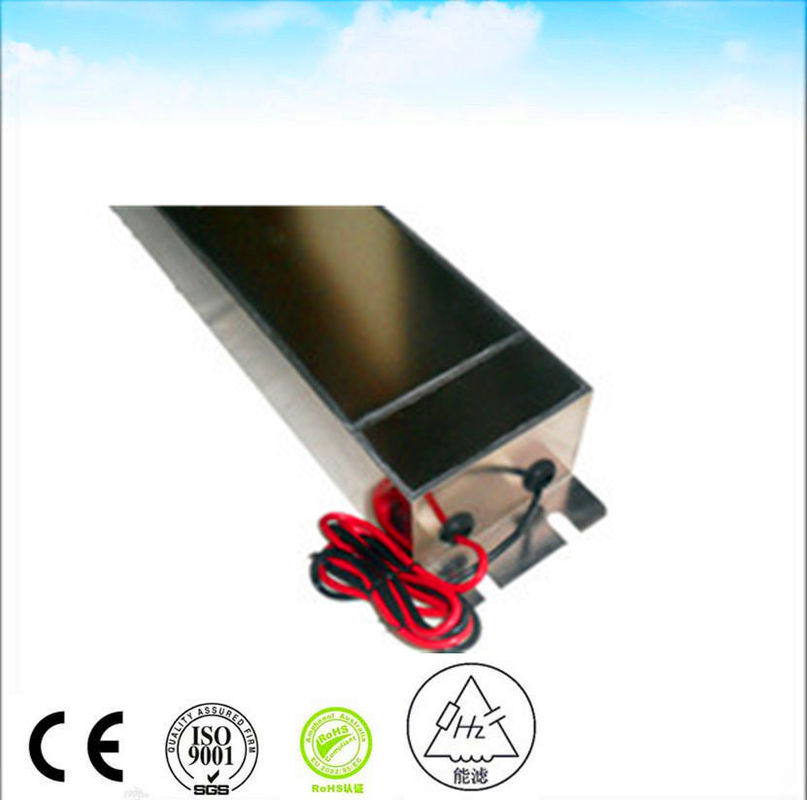

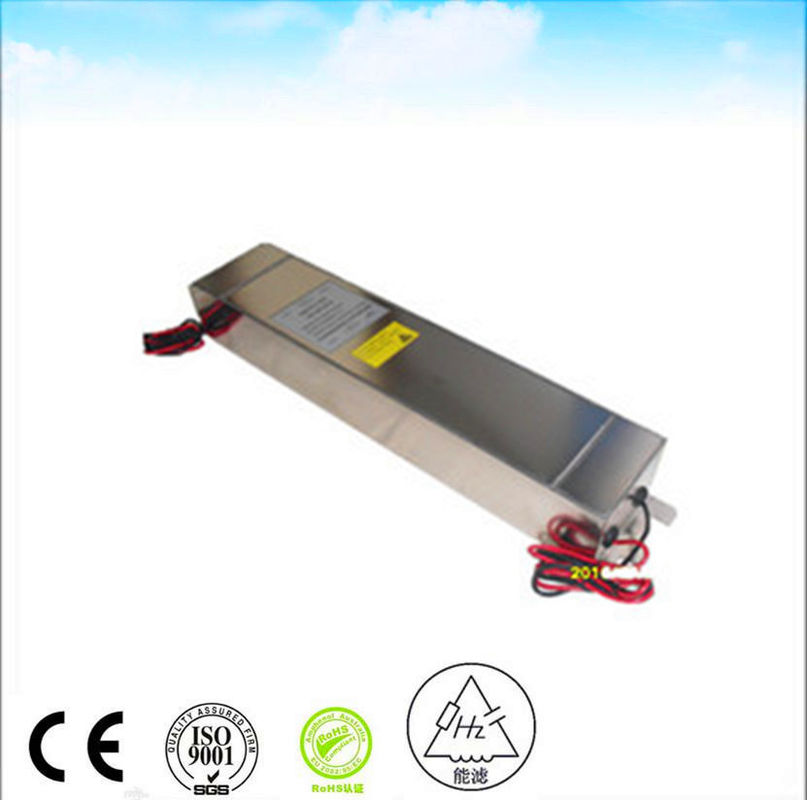

250VAC 30A emi power line filter anechoic chamber
Product Description
| RATED VOLTAGE |
250 VAC |
| RATED CURRENT |
30 A |
| OPERATIONAL FREQUENCY |
50 60Hz |
| Voltage Drop |
Less than 1V |
| Overload |
140% of rated current for 15 minutes |
| Harmonic Distortion |
Less than 2% @ full rated current |
| Leakage Current |
≤0.2A@380/230VAC and 50Hz |
| Dielectric Withstanding Voltage |
1000VDC (line to line) 1000VDC (line to case) |
| DC Insulation Resistance |
As Per MIL-STD-202 Method 202 |
| Terminal Strength |
As Per MIL-STD-202 Method 211 |
| Temperature Rise |
As Per MIL-F-15733 |
| Insertion Loss: |
≥70dB@150K-10GHz As Per MIL-STD-220A, Under Load Condition |
| Climatic Classification |
25/070/21 |
The following tips can help ensure proper EMI grounding:
- Use low impedance connections to connect the various parts of the ground system. Flat wires, for instance, offer lower HF impedance than round wires do.
- Ensure that all the ground connections are as short as possible. Consider using a flat, braided ground strap, as these components provide increased surface area.
- Use the largest available area as the ground conductor. The cabinet wall is often a suitable surface.
- Removing paint from mounting surfaces of the cabinets can help achieve a low impedance bond.
- To ensure safety and proper performance, make sure the power system ground is connected to the filter ground termination point before connecting any wires.
- Be sure to research and follow all relevant safety regulations related to grounding.
- Examine all the connections in your low impedance grounding systems as part of your routine maintenance checks.
