50A 120 250V Ac Dc Emi Power Line Filter Ac Noise Filter Emc Line Filter

50A 120 250V Ac Dc Emi Power Line Filter Ac Noise Filter Emc Line Filter

  • High Light

    50A Ac Dc Emi Filter

    ,

    250V Ac Dc Emi Filter

    ,

    Ac 1000VDC Emi Filter

  • Type
    EMI Filter
  • Transfer Function
    Low Pass
  • Package Type
    Throught Hole
  • Nominal Center Frequency
    50/60Hz
  • 3dB Bandwidth
    14K
  • Insertion Loss
    100dB
  • Input Impedance
    50ohm
  • Stopband Attenuation
    100dB
  • Rated Voltage
    120/250VAC
  • Rated Current
    16A 30A
  • Operating Frequency
    50/60Hz
  • Application
    Rf Shielding Room
  • Port
    Shanghai
  • Place of Origin
    China
  • Brand Name
    nenglv
  • Certification
    ce
  • Model Number
    HZ-2X50C5
  • Minimum Order Quantity
    >=1 Pieces
  • Price
    $300.00
  • Packaging Details
    1 pcs in one carton the gross weight is about 20Kg
  • Supply Ability
    100 Piece/Pieces per Week

50A 120 250V Ac Dc Emi Power Line Filter Ac Noise Filter Emc Line Filter

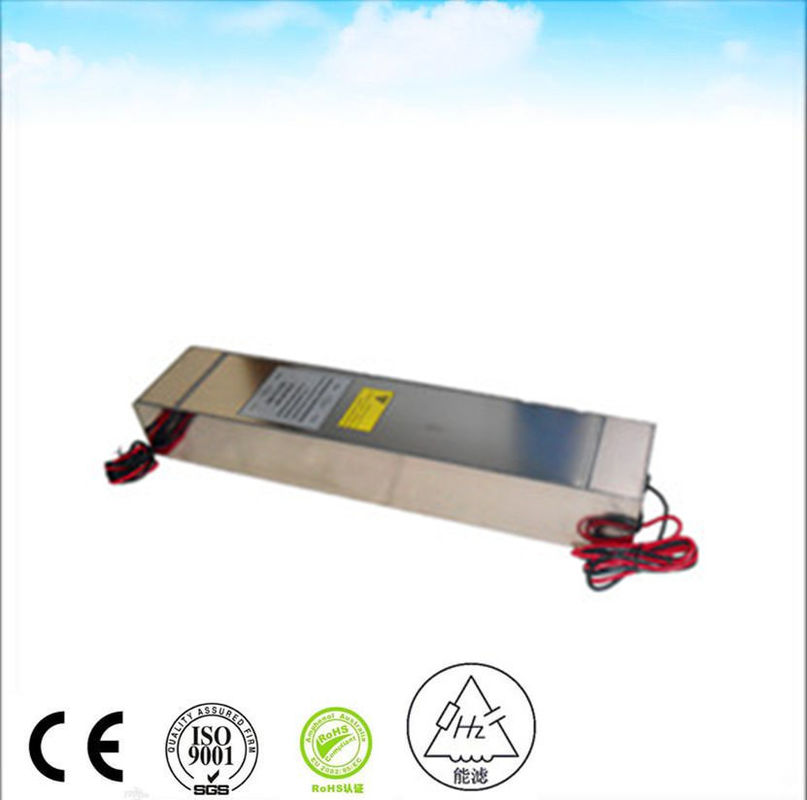

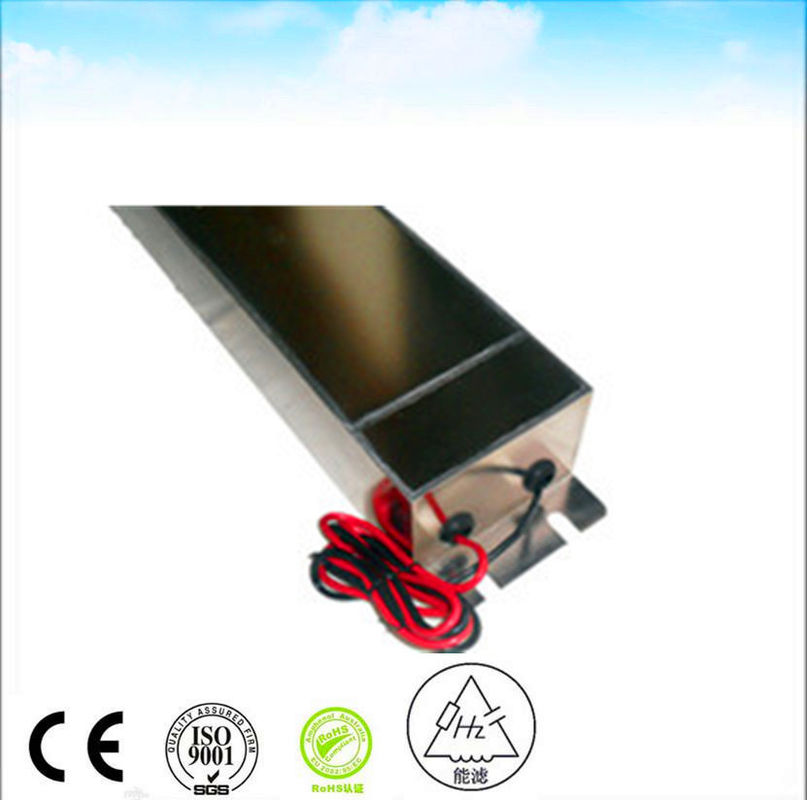

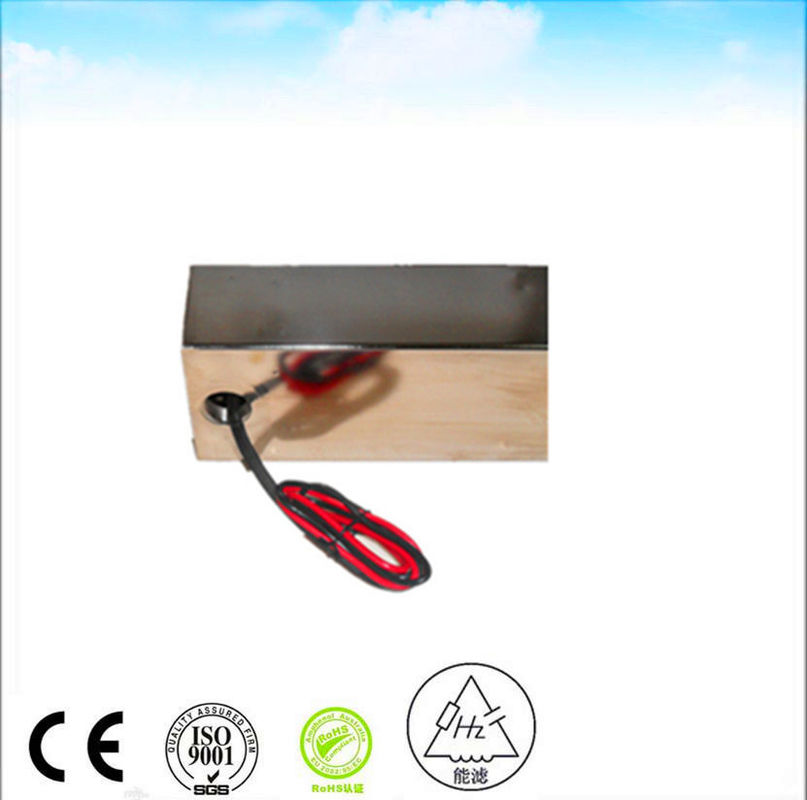

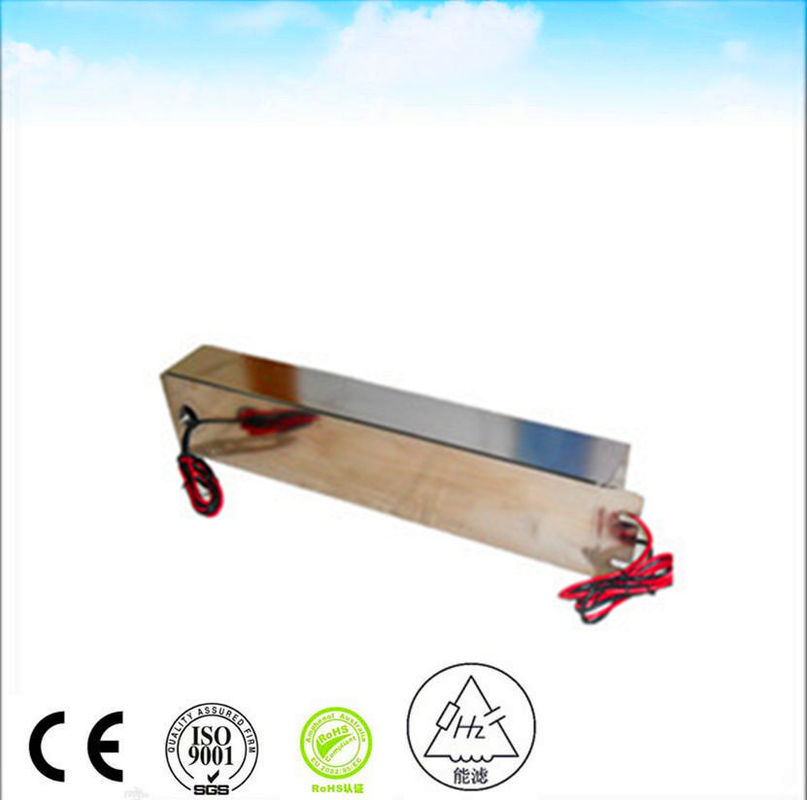

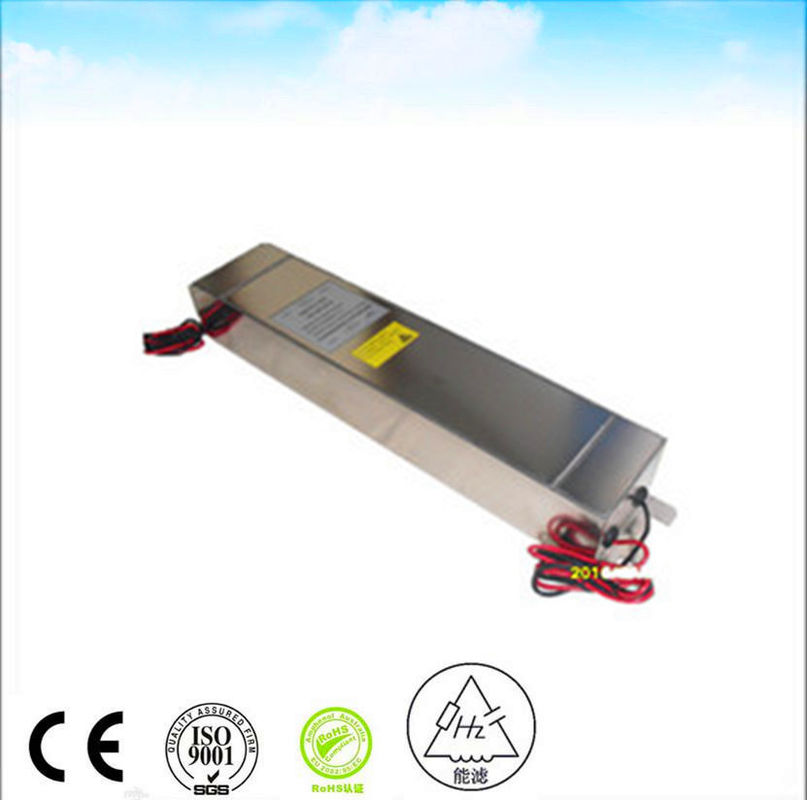

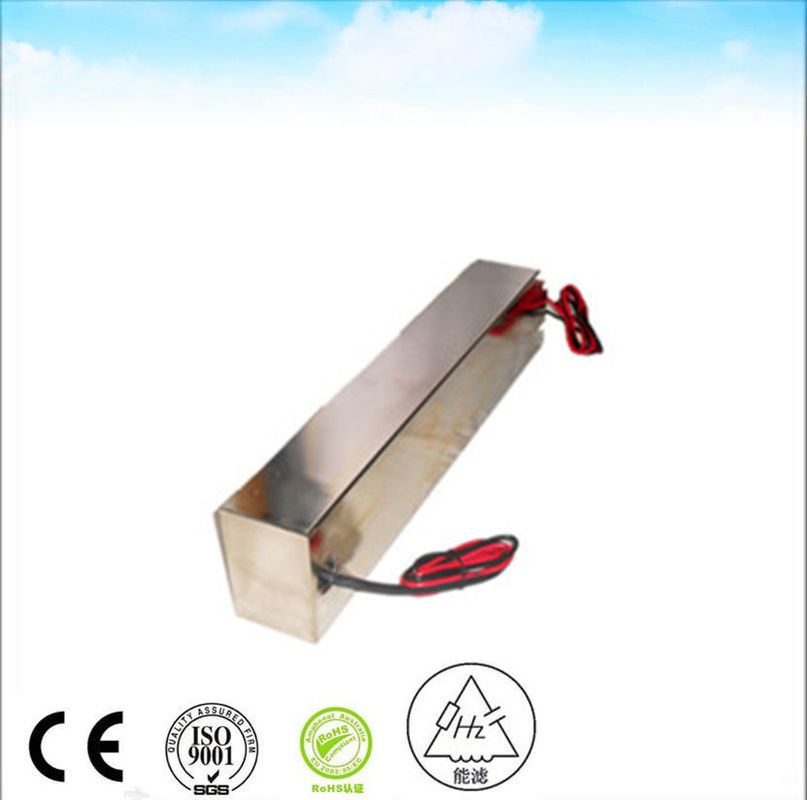

250VAC 50A Emi Power Line Filter Anechoic Chamber



RATED VOLTAGE 250 VAC
RATED CURRENT 30 A
OPERATIONAL FREQUENCY 50 60 Hz
Voltage Drop Less than 1V
Overload 140% of rated current for 15 minutes
Harmonic Distortion Less than 2% @ full rated current
Leakage Current ≤0.2A@380/230VAC and 50Hz
Dielectric Withstanding Voltage 1000VDC (line to line) 1000VDC (line to case)
DC Insulation Resistance As Per MIL-STD-202 Method 202
Terminal Strength As Per MIL-STD-202 Method 211
Temperature Rise As Per MIL-F-15733
Insertion Loss ≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
Climatic Classification 25/070/21





Filter Wiring / Connection Tips
EMI filtering works both ways. It stops noise on the power line from getting in and stops the noise generated inside the system from going out. Since the noise predominantly travels over the power lines and is often radiated from those, filter wiring/connection becomes crucial in the EMI filter installation process. Keeping wiring best practices in mind can help to reduce a lot of potential EMI problems.

  • Aim to keep power and control wiring separated. Ensure that power and control wires do not run parallel. If cables must cross, ensure that cables cross at or as close to a right angle as possible.
  • Route the conductors as close to the panel as you can.
  • Ensure that the filter input and output conductors are separated.
  • Keep input and output leads separated.
  • Use shielded wiring if necessary, especially, on the side that needs to be protected from the radiated noise.
  • Ensure that the shield of shielded cables is terminated at both ends.



  1. Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
  2. Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
  3. Our test equipment: LCR digital bridge/voltage proof tester/insulation resistance tester/spectrum analyzer/inductor tester/standard signal source/shield room/interference intensity tester etc
  4. Our product: EMI filter for general purpose/EMI filter for frequency inverter/EMI filter for shielding facility/EMI filter for military application
  5. Our advantage: high quality/high cost-effective/short lead time
  6. Our service: all products have two years guarantee
  7. Our main customers: frequency inverter drive and servo drive system/MRI shielding system/solar inverter system/rail transit system etc
