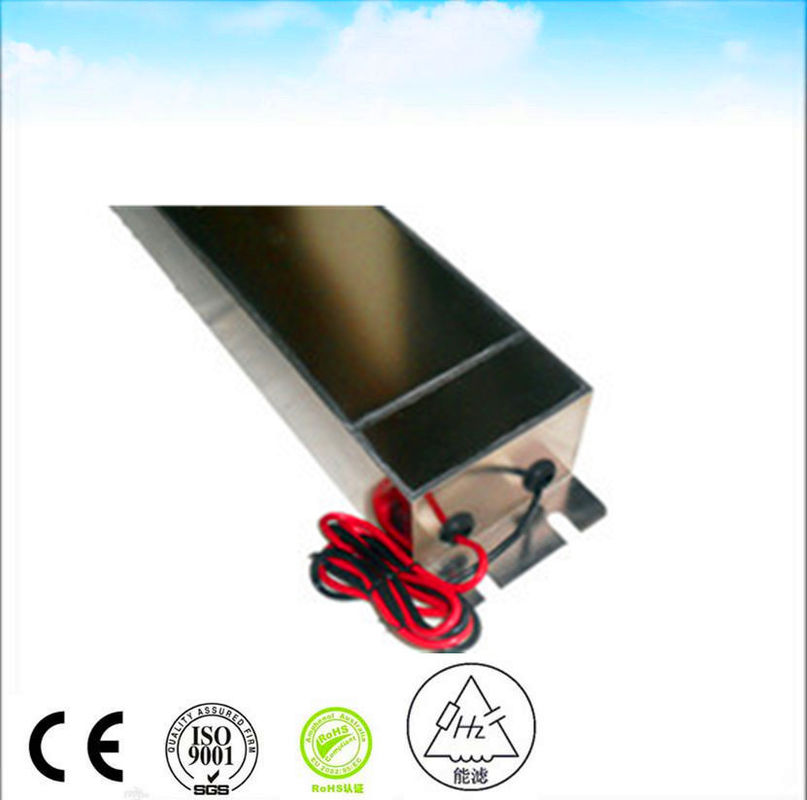

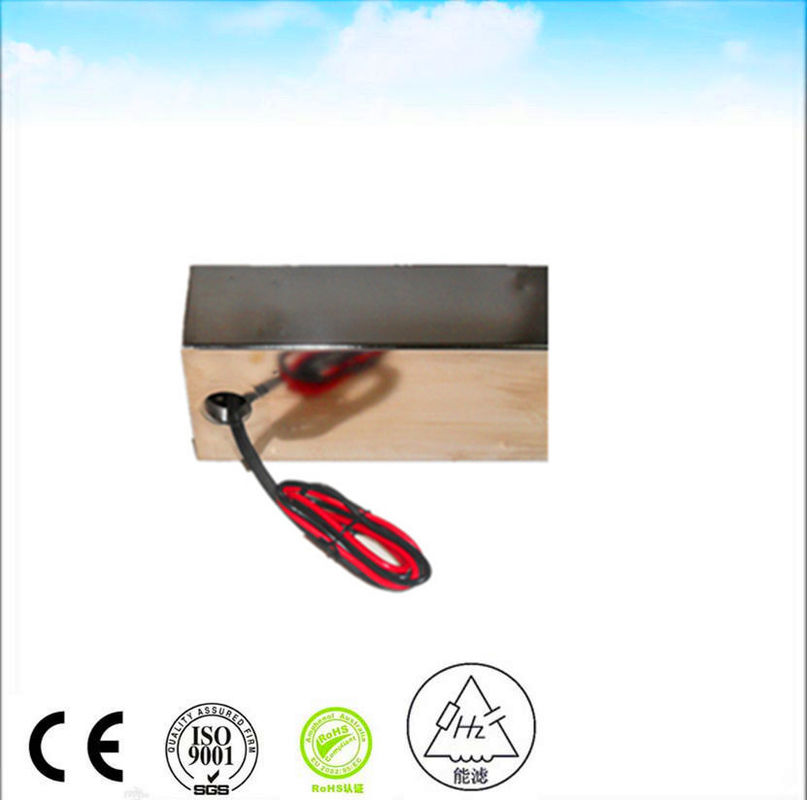

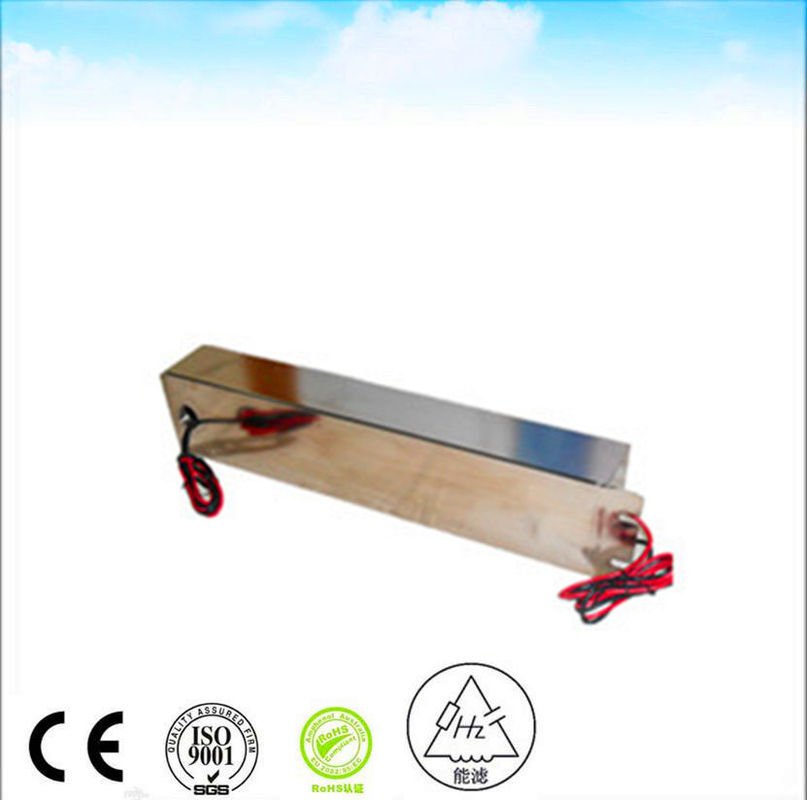

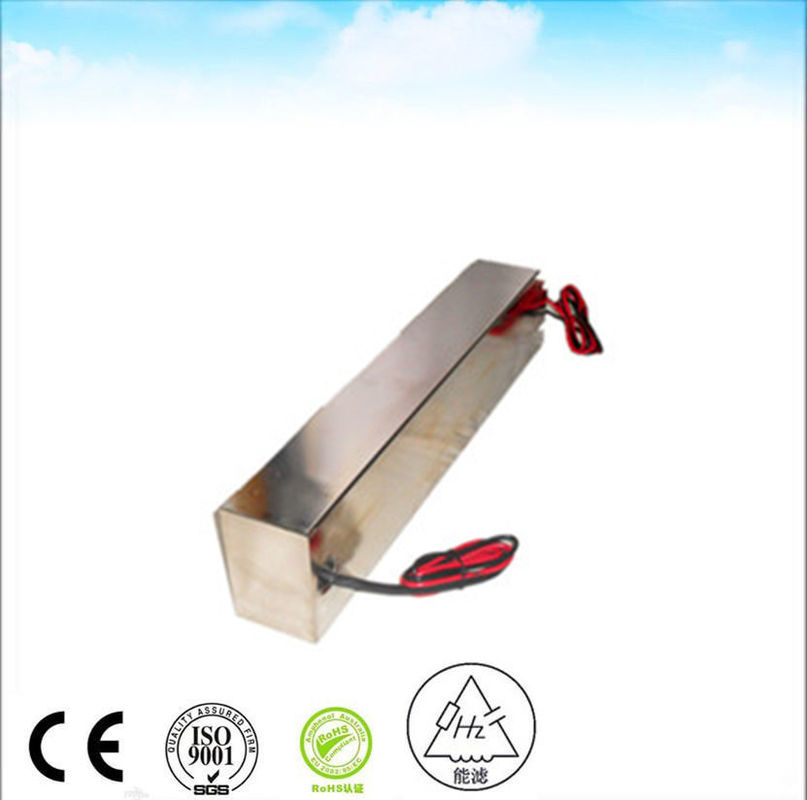

250VAC 70A Iec Ethernet Emi Rfi Ac Power Signal Line Filters Single Phase For Radio rf shielding room emc anechoic chamber
  • name
  • name
  • name
  • name

250VAC 70A Iec Ethernet Emi Rfi Ac Power Signal Line Filters Single Phase For Radio rf shielding room emc anechoic chamber

MOQ: >=1 Pieces
Price: $350.00
Standard Packaging: 1 pcs in one carton the gross weight is about 20Kg
Supply Capacity: 100 Piece/Pieces per Week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
nenglv
Certification
CE RoHS
Model Number
HZ-2X70C5
Type:
EMI Filter
Transfer Function:
Low Pass
Package Type:
Throught Hole
Nominal Center Frequency:
50/60Hz
3dB Bandwidth:
14K
Insertion Loss:
100dB
Input Impedance:
50ohm
Stopband Attenuation:
100dB
Rated Voltage:
120/250VAC
Rated Current:
70A
Operating Frequency:
50/60Hz
Application:
Rf Shielding Room
Port:
Shanghai
Highlight:

emi rfi power line filter

,

Rfi Power Line Filter Single Phase

,

emi rfi ac power line filters

Product Description
250VAC 70A Emi Power Line Filter Anechoic Chamber
  • General purpose,three phase four line filters
  • Excellent interference suppression performance for CM and DM
  • High quality components,high performance/cost
  • Available for power electronics and other industrial noise environments.
  • Various connection: fast on/bolt/wire terminals
  • Made to order acceptable
  • ODM/OEM welcome

Emi Power Line Filter ​ Product Description

RATED VOLTAGE 250 VAC
RATED CURRENT 70 A
OPERATIONAL FREQUENCY 50 60 Hz
Voltage Drop Less than 1V
Overload 140% of rated current for 15 minutes
Harmonic Distortion Less than 2% @ full rated current
Leakage Current ≤0.2A@380/230VAC and 50Hz
Dielectric Withstanding Voltage 1000VDC (line to line) 1000VDC (line to case)
DC Insulation Resistance As Per MIL-STD-202 Method 202
Terminal Strength As Per MIL-STD-202 Method 211
Temperature Rise As Per MIL-F-15733
Insertion Loss ≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
Climatic Classification 25/070/21





Rated current Rated voltage Operating frenquency temperature range AC/DC
8A-180A 275/480VAC 50/60Hz 25/100/21 AC
50A 275/480VAC 50/60Hz 25/100/21 AC
30A 275/480VAC 50/60Hz 25/100/21 AC
36A 275/480VAC 50/60Hz 25/100/21 AC
6A-200A 275/480VAC 50/60Hz 25/100/21 AC
8A-180A 275/480VAC 50/60Hz 25/100/21 AC
6-200A 275/480VAC 50/60Hz 25/100/21 AC
1-100A 275/480VAC 50/60Hz 25/100/21 AC


250VAC 70A Iec Ethernet Emi Rfi Ac Power Signal Line Filters Single Phase For Radio rf shielding room emc anechoic chamber
We are a professional and famous EMI filter manufacturer. Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well. Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.

Tags:

RFI EMI Signal Line Filters,

Signal Line Filters,

Rfi Power Line Filter Single Phase
