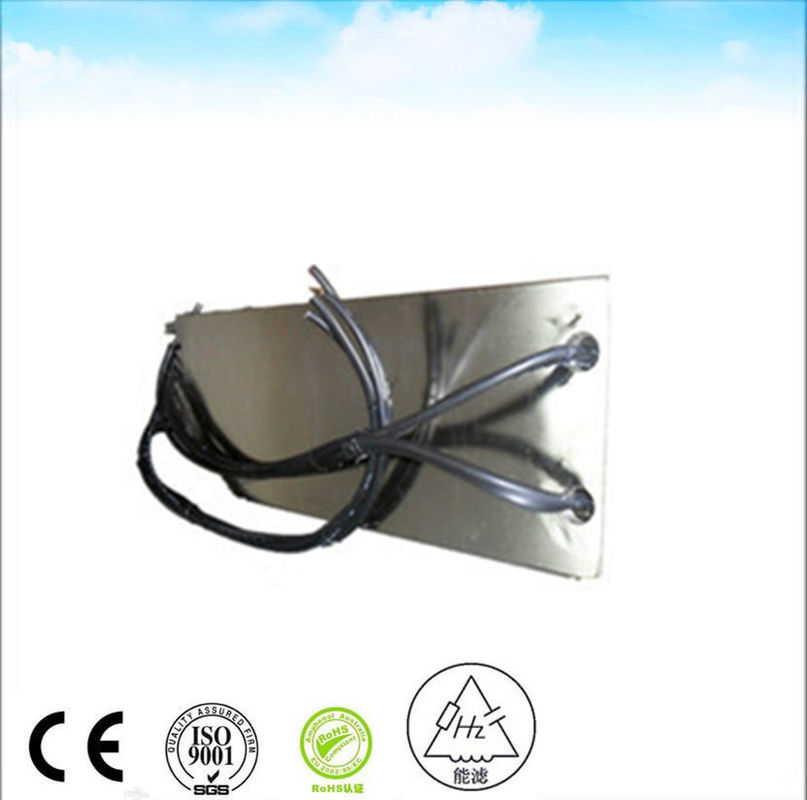

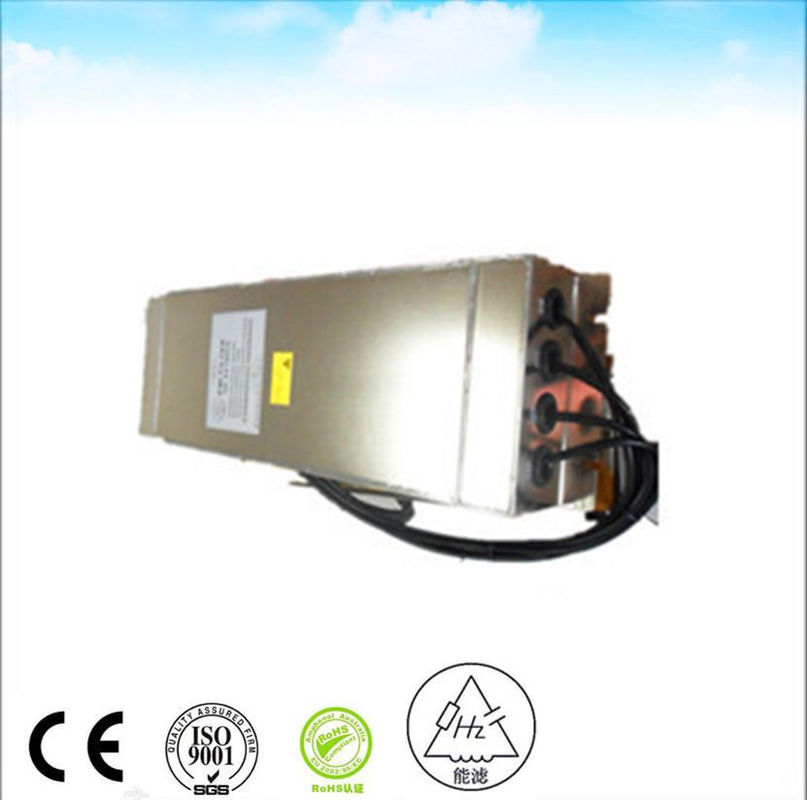

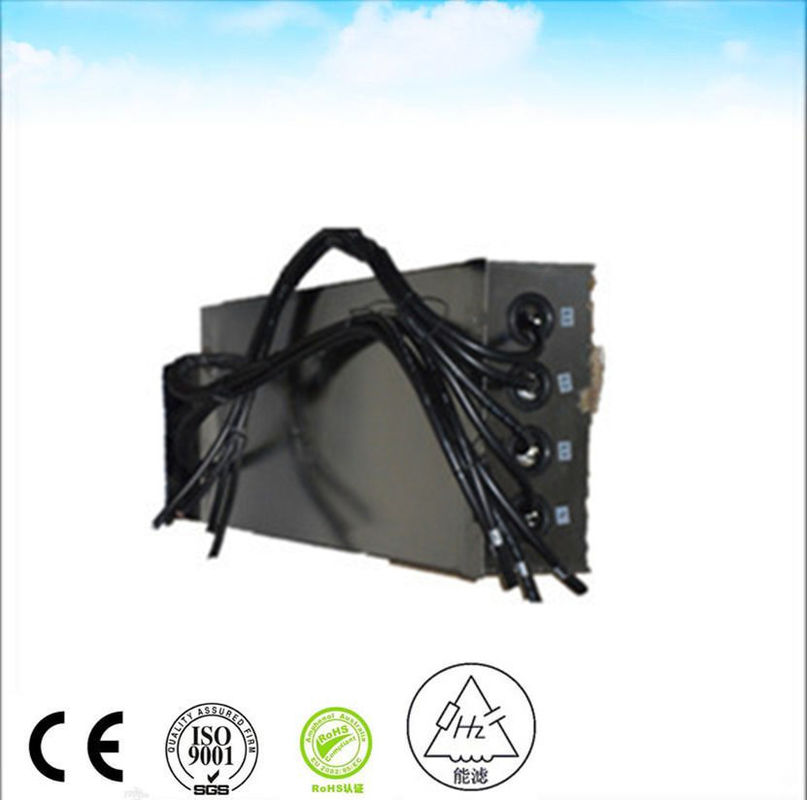

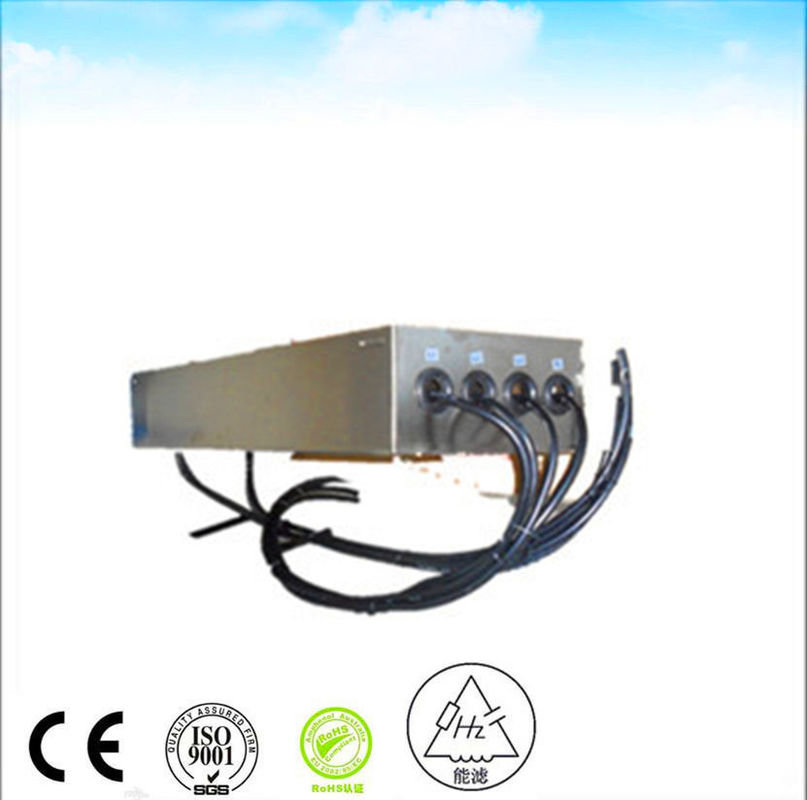

100A 380V Ac Input Emi Filter Design emc anechoic chamber

380VAC 100A emi power line filter rf shielding

A line filter is the kind of electronic filter that is placed between electronic equipment and a line external to it, to attenuate conducted radio frequencies -- RFI, also known as electromagnetic interference (EMI) -- between the line and the equipment. In particular, an AC Line Filter is used between the AC power line and the equipment (SMPS or an Electronic Circuit).

 A line filter may be used to attenuate EMI in either direction. For example:

  • Emissions: It may be used to reduce the unintentional conducted emission from the equipment, to a level sufficiently low to pass regulatory limits (such as FCC part 15). For example, in switching power supplies.
  • Immunity: It may be used to reduce the level of EMI entering the equipment, to a level sufficiently low not to cause any undesired behavior. For example, in equipment used in Radio Transmitter facilities

The attenuation of Line filters is measured in 2 areas:

  • Common Mode - attenuation to signals that appear identically on each of the wires going through the filter
  • Differential Mode - attenuation to signals that appear on just one of the lines

For each Mode, the attenuation is characterized over the frequency spectrum, and measured in dB

Product Description
380 VAC
 100 A
Voltage Drop
Less than 1V
140% of rated current for 15 minutes
Harmonic Distortion
Less than 2% @ full rated current
Leakage Current
≤0.2A@380/230VAC and 50Hz
Dielectric Withstanding Voltage
1000VDC (line to line) 1000VDC (line to case)
DC Insulation Resistance
 As Per MIL-STD-202 Method 202
Terminal Strength
As Per MIL-STD-202 Method 211
Temperature Rise
 As Per MIL-F-15733
Insertion Loss
≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
Climatic Classification
