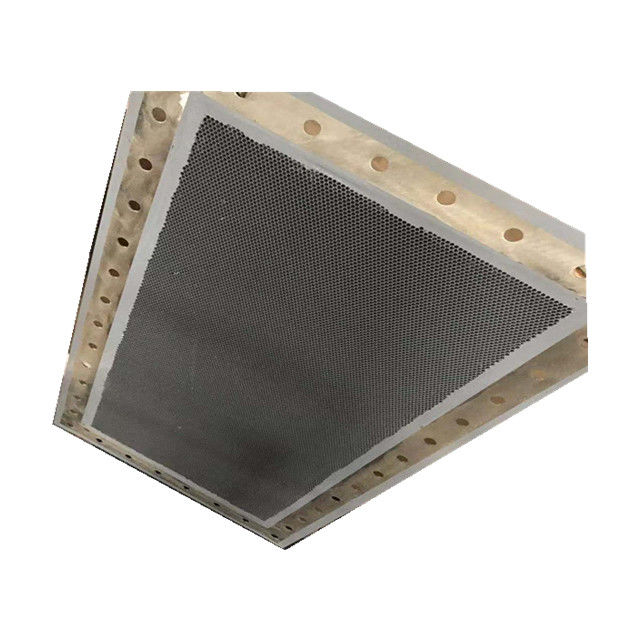

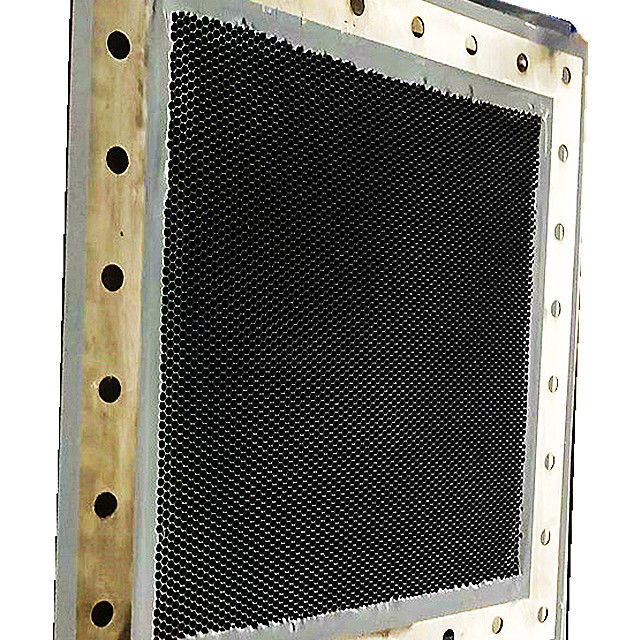

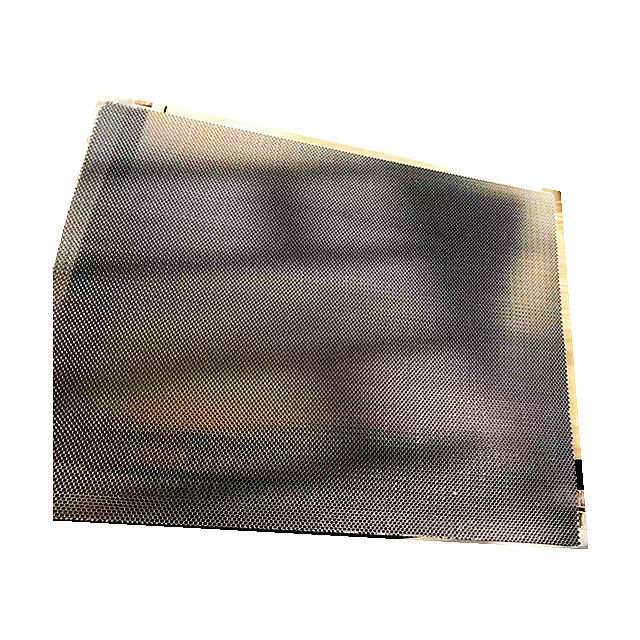

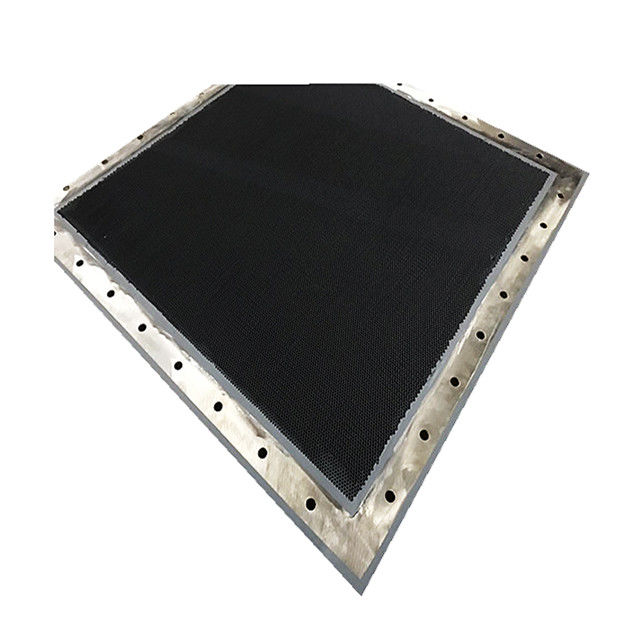

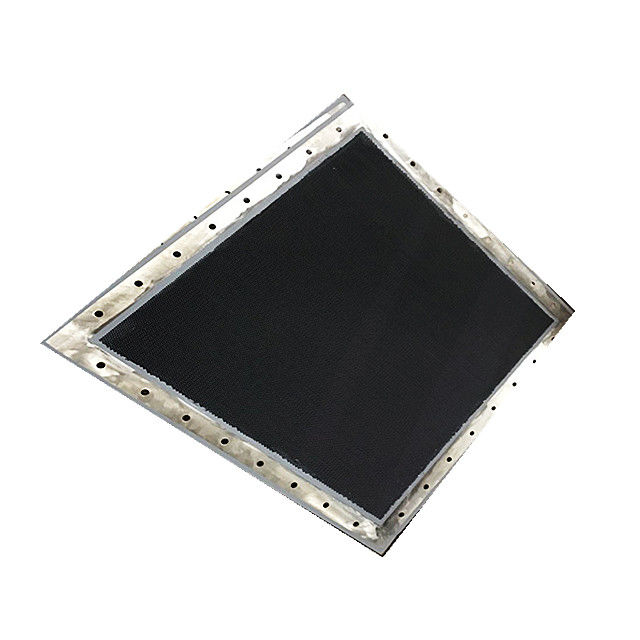

Name: honeycomb air vent steel type rf shielding room emc anechoic chamber
Brand: Changzhou Haozhuo Electronic Co., Ltd.
SKU: none
Price: 1500.00 USD
Availability: InStock

MOQ:	1 - 9 Pieces
Price:	$1500.00
Standard Packaging:	1 pcs in one carton
Supply Capacity:	10 Piece/Pieces per Day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

N/A

Certification

CE RoHS

Model Number

none

Material:

Steel

Size:

300*300mm

Thickness:

25mm

Hole Size:

3.2 4.2 5.2

Frame Type:

Without Frame

Moq:

1 Pcs

Lead Time:

10 Days

Highlight:

Vfd Line Filter

plug in Emi Filters

Vfd Noise Filter

Product Description

Customized Brass/Steel/Aluminum Honeycomb

Brass/Steel/ Stainless steel honeycomb
1.Material:Steel, brass,stainless steel,aluminum
2.standard size: 300x300mm, 300x600mm
3.Standard cell size: 3.2/4.0/4.8mm

4. MOQ 1 piece

Product Features
Honeycomb filter use for shielding room and cabinet
Materials: Steel, brass, Aluminum, Stainless steel
The waveguide vent provides maximum RF attenuation while allowing optimum airflow
We can also produce various customized specification for civil or military use according to customer`s requirements.
High quality, Reasonable price and Short delivery, sample order accept
Technical Specifications
Honeycomb Standard Thickness(mm)	12.5mm/19mm/25mm/50mm
Honeycomb standard size	300x300/300x600/450x450/600x600mm
Hole size	3.2mm/4.0mm/4.8mm
The frame materials	Brass, Steel, Stainless steel
MOQ	1PCS
Shielding Performance
Magnetic field	14KHz≥75dB 150KHz≥100dB
Electric field	200KHz-50MHz≥110dB
Flatwave	50MHz-1GHz≥110dB
Microwave	1GHz-10GHz≥100dB 10GHz-18GHz≥90dB

Honeycomb Materials	(A) Steel (B) Brass (C) Stainless stee (D) Aluminum
Honeycomb Size	(A) 300300mm (B) 300600mm (C) 450450mm (D) 600600mm (E) 600*900mm
Honeycomb Thickness	(A) 12.5mm (B) 19mm (C) 25mm (D) 50mm
The Hole size	(A) 3.2mm (B) 4.0mm (C) 4.8mm
Frame Type	(A) With frame (B) Without frame

honeycomb air vent steel type rf shielding room emc anechoic chamber

Shielding Performance
Magnetic field	14KHz≥75dB 150KHz≥100dB
Electric field	200KHz-50MHz≥110dB
Flatwave	50MHz-1GHz≥110dB
Microwave	1GHz-10GHz≥100dB 10GHz-18GHz≥90dB

Tags:

12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels rf shielding room emc anechoic chamber

Contact Now

Products

MOQ:	1 - 9 Pieces
Price:	$1500.00
Standard Packaging:	1 pcs in one carton
Supply Capacity:	10 Piece/Pieces per Day

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

N/A

Certification

CE RoHS

Model Number

none

Material:

Steel

Size:

300*300mm

Thickness:

25mm

Hole Size:

3.2 4.2 5.2

Frame Type:

Without Frame

Moq:

1 Pcs

Lead Time:

10 Days

Minimum Order Quantity:

1 - 9 Pieces

Price:

$1500.00

Packaging Details:

1 pcs in one carton

Supply Ability:

10 Piece/Pieces per Day

Highlight

Vfd Line Filter

plug in Emi Filters

Vfd Noise Filter

Product Description

Customized Brass/Steel/Aluminum Honeycomb

Brass/Steel/ Stainless steel honeycomb
1.Material:Steel, brass,stainless steel,aluminum
2.standard size: 300x300mm, 300x600mm
3.Standard cell size: 3.2/4.0/4.8mm

4. MOQ 1 piece

Product Features
Honeycomb filter use for shielding room and cabinet
Materials: Steel, brass, Aluminum, Stainless steel
The waveguide vent provides maximum RF attenuation while allowing optimum airflow
We can also produce various customized specification for civil or military use according to customer`s requirements.
High quality, Reasonable price and Short delivery, sample order accept
Technical Specifications
Honeycomb Standard Thickness(mm)	12.5mm/19mm/25mm/50mm
Honeycomb standard size	300x300/300x600/450x450/600x600mm
Hole size	3.2mm/4.0mm/4.8mm
The frame materials	Brass, Steel, Stainless steel
MOQ	1PCS
Shielding Performance
Magnetic field	14KHz≥75dB 150KHz≥100dB
Electric field	200KHz-50MHz≥110dB
Flatwave	50MHz-1GHz≥110dB
Microwave	1GHz-10GHz≥100dB 10GHz-18GHz≥90dB

Honeycomb Materials	(A) Steel (B) Brass (C) Stainless stee (D) Aluminum
Honeycomb Size	(A) 300300mm (B) 300600mm (C) 450450mm (D) 600600mm (E) 600*900mm
Honeycomb Thickness	(A) 12.5mm (B) 19mm (C) 25mm (D) 50mm
The Hole size	(A) 3.2mm (B) 4.0mm (C) 4.8mm
Frame Type	(A) With frame (B) Without frame

honeycomb air vent steel type rf shielding room emc anechoic chamber

Shielding Performance
Magnetic field	14KHz≥75dB 150KHz≥100dB
Electric field	200KHz-50MHz≥110dB
Flatwave	50MHz-1GHz≥110dB
Microwave	1GHz-10GHz≥100dB 10GHz-18GHz≥90dB
