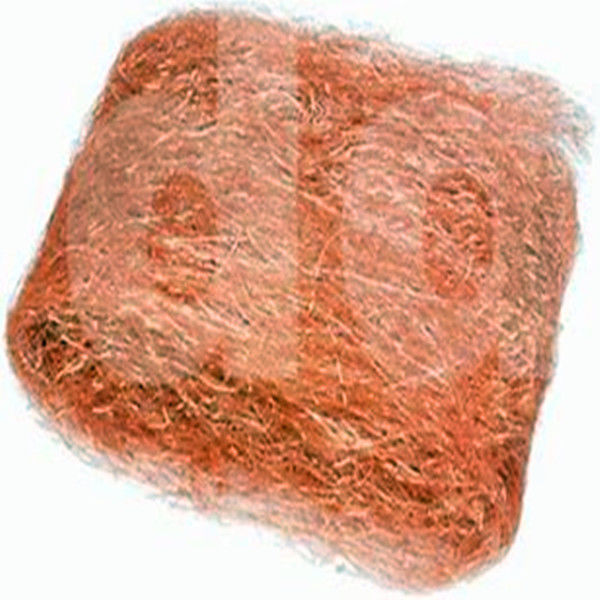

Fine 100 Pure Copper Wire Mesh Screen Pure Copper Wool For Faraday Cage

Fine 100 Pure Copper Wire Mesh Screen Pure Copper Wool For Faraday Cage

Products - RF Shielding Copper Foil
  • High Light

    100 pure copper mesh

    ,

    Pure Copper Wool

    ,

    pure copper mesh screen

  • Type
    RC Filter
  • Transfer Function
    Low Pass
  • Package Type
    Surface Mount
  • Nominal Center Frequency
    50
  • 3dB Bandwidth
    10M
  • Insertion Loss
    100dB
  • Input Impedance
    50
  • Stopband Attenuation
    3dB
  • Application
    Mri Rf Room
  • Color
    Copper
  • Wire Diameter
    0.07mm
  • Moq
    2.5Kg
  • Lead Time
    7-10 Workdays
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    HAOZHUO
  • Certification
    CE RoHS
  • Model Number
    H
  • Minimum Order Quantity
    >=1 Rolls
  • Price
    $300.00
  • Packaging Details
    carton
  • Supply Ability
    100 Roll/Rolls per Week

Fine 100 Pure Copper Wire Mesh Screen Pure Copper Wool For Faraday Cage

  • Fine 100 Pure Copper Wire Mesh Screen Pure Copper Wool For Faraday Cage
  • Fine 100 Pure Copper Wire Mesh Screen Pure Copper Wool For Faraday Cage
  • Fine 100 Pure Copper Wire Mesh Screen Pure Copper Wool For Faraday Cage
  • Fine 100 Pure Copper Wire Mesh Screen Pure Copper Wool For Faraday Cage
  • Fine 100 Pure Copper Wire Mesh Screen Pure Copper Wool For Faraday Cage
  • Fine 100 Pure Copper Wire Mesh Screen Pure Copper Wool For Faraday Cage
Get Price Contact Now

RF EMC Shielded 99.99 Pure Copper Wool For Faraday Cage



Product description
Name copper foil
Material 99.8% copper
Width standard 1350mm
Thickness standard 0.105mm(3oz),0.14mm(4oz)
Feature EMI shielding
Application faraday cage,MRI room



Product description:

1. The product structure is based on copper foil as the substrate, conductive acrylic adhesive as the adhesive, plus release paper.

2. Three-tier architecture is very suitable for cutter mold or the metal mold die-cutting, Can be flat cutter or round cutter to die-cutting.

3. The width of the product available from 3mm ~ 380mm. Standard length is 50m., also do 100m, 150m or longer, save customers the trouble of frequently reloading.



Part Number Backing Material Thickness of Backing (mm) Total Thickness (mm) Holding Power Min/inch Adhesion Strength kg/25mm Adhesive Component Shield Efficacy 10MHz~ 1GHz (dB) Conductivity z-ohms Integrated thermal conductivity (W/mK)
XPH0M123 Copper Foil 0.012 0.030±0.01 ≥1440 >0.8 Acrylic ≥60 <0.03 60
XPH0M183 Copper Foil 0.018 0.050±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 60
XPH0M253 Copper Foil 0.025 0.06±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 80
XPH0M353 Copper Foil 0.035 0.070±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 90
XPH0M503 Copper Foil 0.050 0.085±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 110
XPH0M753 Copper Foil 0.075 0.11±0.01 ≥1440 >1.0 Acrylic ≥60 <0.03 130
XPH0MA03 Copper Foil 0.100 0.135±0.01 ≥1440 >1.0 Acrylic ≥60 <0.03 160
XPH0MA23 Copper Foil 0.125 0.15±0.015 ≥1440 >1.0 Acrylic ≥60 <0.03 170
XPH0MA53 Copper Foil 0.150 0.20±0.02 ≥1440 >1.0 Acrylic ≥60 <0.03

190







Product Features
shielding ED copper foil
thickness 0.009--3mm, width 10-1380mm
easier to make a faraday cage, EMI room
generally 400-500kg/roll
Physical Properties
Density:8.9g/cm³
Electrical conductivity(20°C):min 90%IACS for annealed to temper 80%IACS for rolled to temper min
Thermal conductivity(20°C):390W/(m°C)
Elastic modulus:118000N/m
Softening temperature:≥380°C
Certification
meet the technical conditions GB/T 5187-2008 standards.

in accordance with ISO9001-2000 Quality system requirements



Fine 100 Pure Copper Wire Mesh Screen Pure Copper Wool For Faraday Cage 0Fine 100 Pure Copper Wire Mesh Screen Pure Copper Wool For Faraday Cage 1
