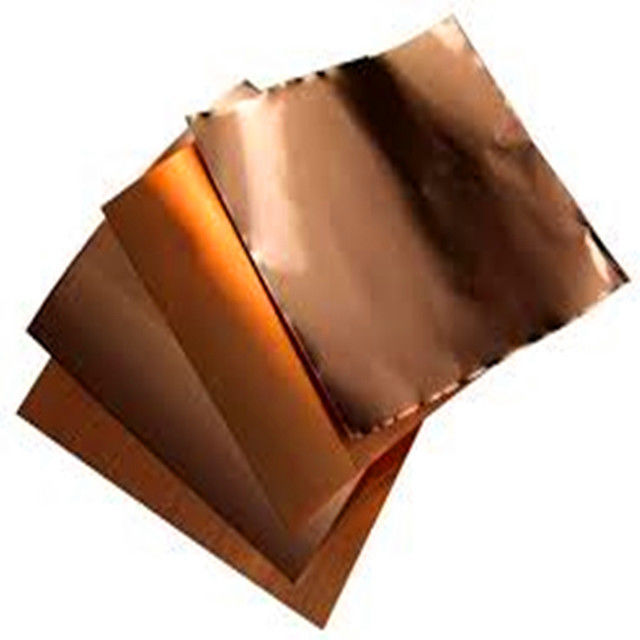

1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality

1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality

Products - RF Shielding Copper Foil
  • Highlight

    1295mm Rf Shielding Copper Foil

    ,

    Rf Shielding Copper Foil 1oz

    ,

    99.8% Cu Rf Shielding Foil

  • Material
    99.8% Cu
  • Width
    1295mm Or Customized
  • Package Type
    Wooden Case
  • Thickness
    1oz 3oz 4oz 5oz
  • Application
    Rf Shielding
  • Lead Time
    Stock
  • Moq
    1000Kg
  • RoHS
    Yes
  • Place of Origin
    China
  • Brand Name
    haozhuo
  • Certification
    CE RoHS
  • Model Number
    neutral
  • Minimum Order Quantity
    1000Kg
  • Price
    $10000
  • Packaging Details
    wooden case
  • Supply Ability
    100000kg per week

1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality

  • 1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
  • 1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
  • 1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
  • 1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
  • 1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
  • 1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality
Get Price Contact Now
Product Features
shielding ED copper foil
thickness 0.009--3mm, width 10-1380mm
easier to make a faraday cage, EMI room
generally 400-500kg/roll
Physical Properties
Density:8.9g/cm³
Electrical conductivity(20°C):min 90%IACS for annealed to temper 80%IACS for rolled to temper min
Thermal conductivity(20°C):390W/(m°C)
Elastic modulus:118000N/m
Softening temperature:≥380°C
Certification
meet the technical conditions GB/T 5187-2008 standards.
in accordance with ISO9001-2000 Quality system requirements



EMI RFI shielding copper tape strip, lightning copper tape

Product description:

1.The product structure is based on copper foil as the substrate, conductive acrylic adhesive as the adhesive, plus release paper.



2.Three-tier architecture is very suitable for cutter mold or the metal mold die-cutting, Can be flat cutter or round cutter to die-cutting.



3.The width of the product available from 3mm ~ 380mm. Standard length is 50m., also do 100m, 150m or longer, save customers the trouble of frequently reloading.



Product Properties:



Part Number Backing Material Thickness of Backing (mm) Total Thickness (mm) Holding Power Min/inch Adhesion Strength kg/25mm Adhesive Component Shield Efficacy 10MHz~ 1GHz (dB) Conductivity z-ohms Integrated thermal conductivity (W/mK)
XPH0M123 Copper Foil 0.012 0.030±0.01 ≥1440 >0.8 Acrylic ≥60 <0.03 60
XPH0M183 Copper Foil 0.018 0.050±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 60
XPH0M253 Copper Foil 0.025 0.06±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 80
XPH0M353 Copper Foil 0.035 0.070±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 90
XPH0M503 Copper Foil 0.050 0.085±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 110
XPH0M753 Copper Foil 0.075 0.11±0.01 ≥1440 >1.0 Acrylic ≥60 <0.03 130
XPH0MA03 Copper Foil 0.100 0.135±0.01 ≥1440 >1.0 Acrylic ≥60 <0.03 160
XPH0MA23 Copper Foil 0.125 0.15±0.015 ≥1440 >1.0 Acrylic ≥60 <0.03 170
XPH0MA53 Copper Foil 0.150 0.20±0.02 ≥1440 >1.0 Acrylic ≥60 <0.03

190





Product description
Name copper foil
Material 99.8% copper
Width standard 1350mm
Thickness standard 0.105mm(3oz),0.14mm(4oz)
Feature EMI shielding
Application faraday cage,MRI room



1295mm Rf Shielding Copper Foil 1oz 3oz 4oz 5oz high quality 0

Tags:

EMI Shielding Copper Wool

RF EMI Shielding Copper Foil

Mri EMI Shielding Foil
