Copper Emf EMI Shielding Mesh Emi Gaskets And Seals Electromagnetic Interference

Copper Emf EMI Shielding Mesh Emi Gaskets And Seals Electromagnetic Interference

  • High Light

    Emi Gaskets And Seals

    ,

    Emf EMI Shielding Mesh

    ,

    emi shielding copper mesh

  • Material
    Galvanized Steel Wire, Tin-plated Copper-clad Steel
  • Type
    EMI Shielding
  • Weave Style
    Dutch Weave
  • Technique
    Perforated
  • Wire Mesh Layer
    Single Or Double Layer
  • Configuration
    Round Or Rectangular
  • Internal Material
    Rubber/sponge
  • Product Size
    Customized Accepted
  • Wire Diameter
    0.5-8mm
  • Selling Units
    Single Item
  • Single Package Size
    10X10X140 Cm
  • Single Gross Weight
    1.000 Kg
  • Package Type
    Carton
  • Place of Origin
    Jiangsu, China
  • Brand Name
    HZ
  • Certification
    CE RoHS
  • Model Number
    wire mesh
  • Minimum Order Quantity
    1 Meter
  • Price
    $1.50 / Meter

Copper Emf EMI Shielding Mesh Emi Gaskets And Seals Electromagnetic Interference

Knitted wire mesh gaskets, EMI mesh, emi emc shielding materials



RFI (radio frequency interference) shielding is a method of protecting electronic devices and technological systems from damaging electromagnetic interference (EMI). One of the most effective materials for defending against these electromagnetic waves is metal mesh — particularly copper wire cloth. Typically, EMI is generated from large electronic equipment to smaller devices. However, small electronics can also transmit waves that negatively affect other systems.

As a result, electronics tend to malfunction due to:

  • The suppression of radio signals within a device
  • Internally generated emissions, which interfere with functionality
  • Ambient interference from the outside, which impacts operation efficiency
  1. Brass wire: copper 65%,zinc35%
  2. Purple copper wire: copper 99.8%
  3. Phosphorus copper wire :copper 85%-90%,tin 5%-15%
Product Features
All mesh gasket’s cross section are rectangular, round,round with tail and double round with tail.
Materials are available intin-plated phosphor
bronze (Sn/Ph/Bz), tin-plated copper-clad steel (Sn/Cu/Fe), silver-plated brass (Ag/Brass), Monel, and aluminum(Al).
Elastomeric core has various function(anti-chemistry, thermal resistance and water proof) for elasticity.

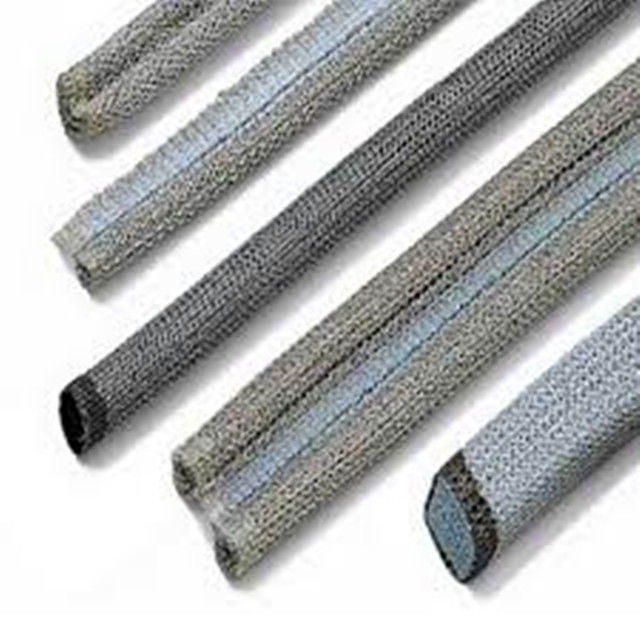

Selection shape
Solid Round Type
Solid Rectangular Type
Hollow Round Type
Solid Round with Fin Type
Hollow Round with Fin Type



  Mesh/inch Wire dia(mm/inch) Aperture(mm)





Stainless steel wire mesh

100 0.089/0.0035 0.17
110 0.1060/0.0040 0.1295
120 0.0904/0.0037 0.1168
150 0.0660/0.0026 0.1041
160 0.0635/0.0025 0.0965
180 0.0584/0.0023 0.0838
200 0.0533/0.0021

0.737





Production range:

  • Width: Standard 1M, Special requirement is accepted.
  • Length:30M/roll
  • Size:Standard 60/100/150 mesh/inch
  • Faraday cage shielding stainless steel wire mesh

Product Description

• Material: SUS302,201, 304, 304L, 316, 316L, 310, 310S etc

• Weave: plain, twill, dutch

• Mesh: 1-2800 mesh

• Application: EMI/RFI shielding, Faraday cages, RF window,

• Specification list for faraday cage shielding stainless steel wire mesh
