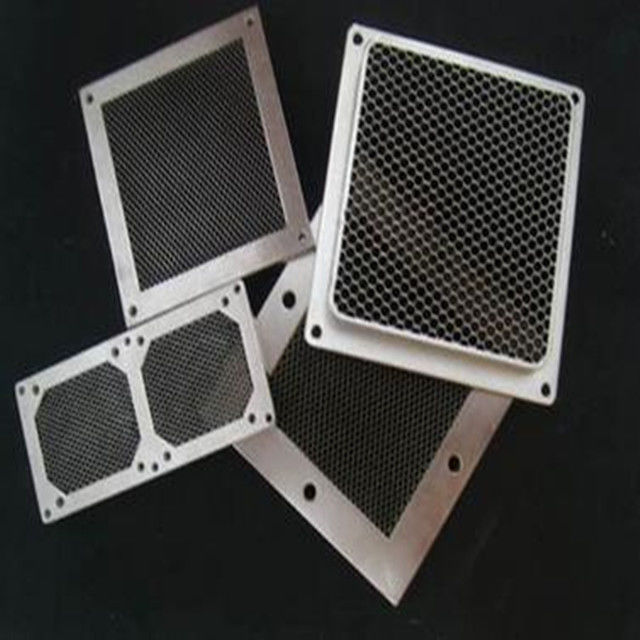

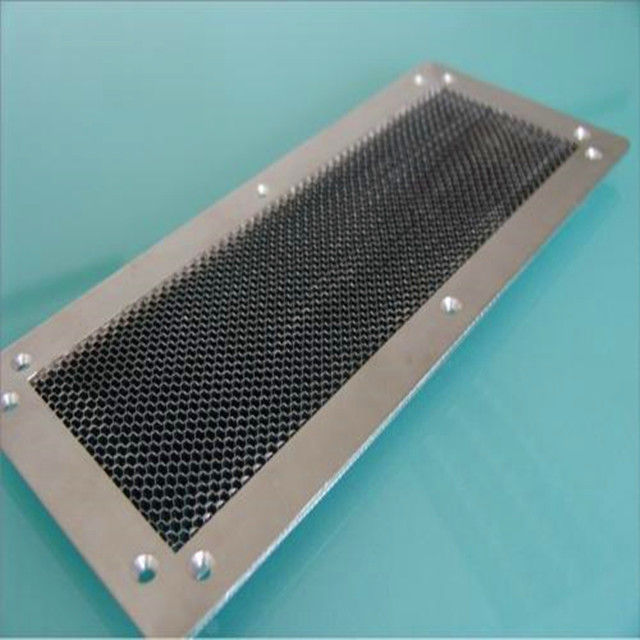

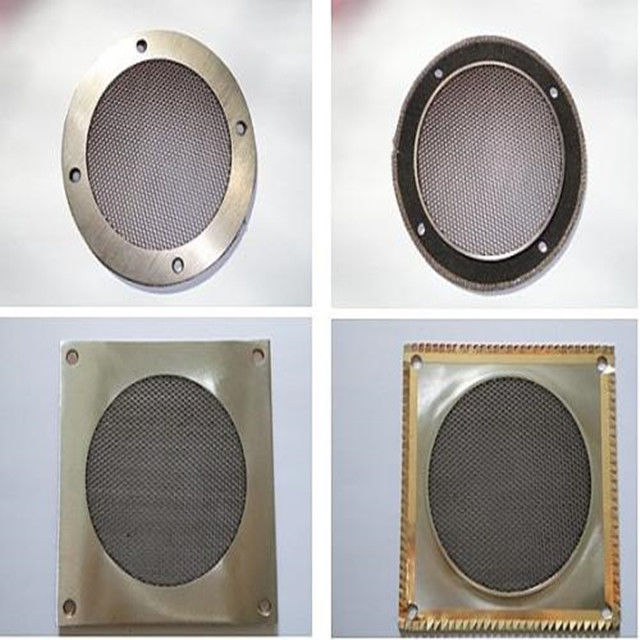

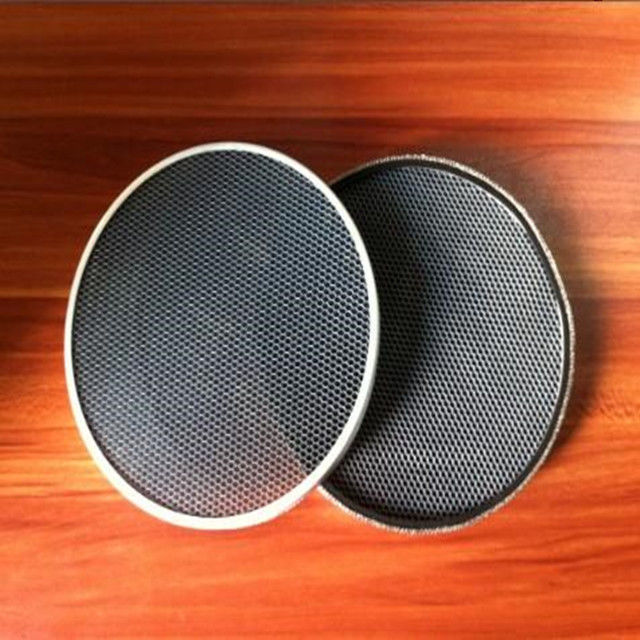

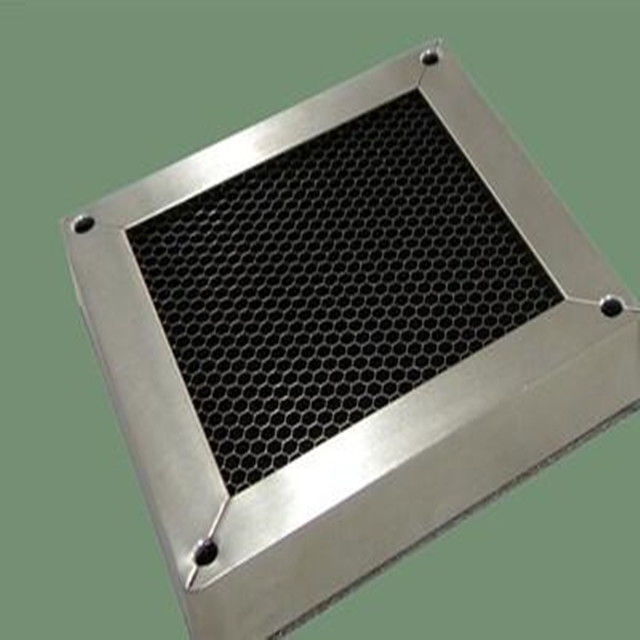

600x600 RF Air EMI Honeycomb Vents Rf Shieled Room Honeycomb Air Vents rf chamber
  • name
  • name
  • name
  • name
  • name
  • name

600x600 RF Air EMI Honeycomb Vents Rf Shieled Room Honeycomb Air Vents rf chamber

MOQ: >=1 Pieces
Price: $100.00
Standard Packaging: woonden case
Supply Capacity: 10000 Piece/Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
HZ
Certification
CE RoHS
Model Number
HZ
Type:
RC Filter
Transfer Function:
Low Pass
Package Type:
Surface Mount
Nominal Center Frequency:
/
3dB Bandwidth:
/
Insertion Loss:
/
Input Impedance:
/
Stopband Attenuation:
/
Honeycomb Filter Mertial:
Brass/steel/Aluminum
Honeycomb Filter Thickness:
12.5-25mm
Honeycomb Filter Packing:
Wooden Packing
Honeycomb Filter Standard Thickness:
12.5mm, 19mm, 25mm
Honeycomb Filter Frame:
Customized
Honeycomb Filter Size:
300*300 600*600
Honeycomb Filter Application:
Rf Shielding Room
Port:
Shanghai
Highlight:

Air EMI Honeycomb Vents

,

RF Air EMI Honeycomb Vents

,

600mm EMI Shielded Vents

Product Description

EMI RFI shield ventilation air filter for rf shielding room​



Lightweight and versatile aluminium honeycomb vents are supplied in a variety of styles to facilitate mounting requirements and any overall size. Panels are designed to provide minimum pressure drop of airflow through the assembly whilst giving good RF attenuation. Panels are normally supplied using two layers of honeycomb oriented at 90° to provide non polarised attenuation. Straight through panels can be supplied with plating to overcome the polarisation problem.

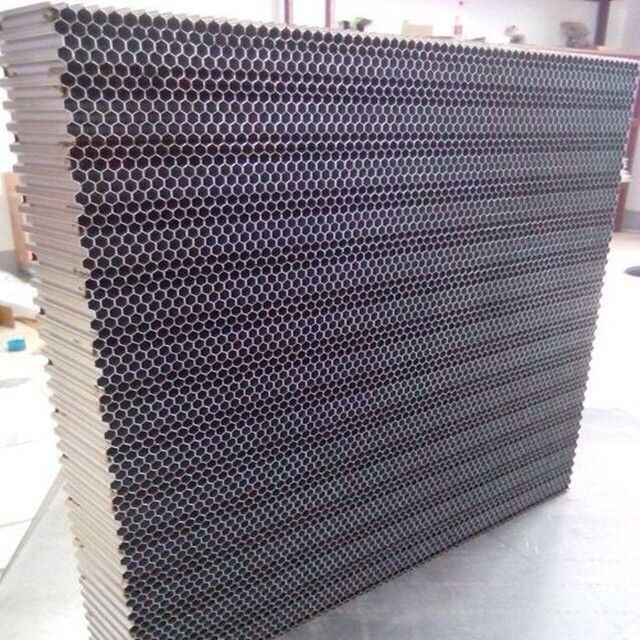

Brass/Steel/ Stainless steel honeycomb
1. Material: Steel, brass,stainless steel,aluminum
2. standard size: 300x300mm, 300x600mm
3. Standard cell size: 3.2/4.0/4.8mm

4. MOQ 1 piece



Product Features

Honeycomb filter use for shielding room and cabinet

Materials: Steel, brass, Aluminum, Stainless steel

The waveguide vent provides maximum RF attenuation while allowing optimum airflow

We can also produce various customized specification for civil or military use according to customer`s requirements.

High quality, Reasonable price and Short delivery, sample order accept

Technical Specifications

Honeycomb Standard Thickness(mm)

12.5mm/19mm/25mm/50mm

Honeycomb standard size

300x300/300x600/450x450/600x600mm

Hole size

3.2mm/4.0mm/4.8mm

The frame materials

Brass, Steel, Stainless steel

MOQ

1PCS

Shielding Performance

Magnetic field

14KHz≥75dB   150KHz≥100dB

Electric field

200KHz-50MHz≥110dB

Flatwave

50MHz-1GHz≥110dB

Microwave

1GHz-10GHz≥100dB

10GHz-18GHz≥90dB





Features for honeycomb vent window for shielding room

1- Provide maximum RF attenuation while allowing optimum airflow.

2- Available to suit individual requirements

3- Soldering waveguide windows use imported tin-plating to press molding, to ensure the quality while transport and assembly process and guarantee the shielding effect.

4- Produce various customized specification for civil or military use



600x600 RF Air EMI Honeycomb Vents Rf Shieled Room Honeycomb Air Vents rf chamber600x600 RF Air EMI Honeycomb Vents Rf Shieled Room Honeycomb Air Vents rf chamber
