25mm Emi Rfi Shielded Waveguide Air Vents Emi Vent Panel MRI RF EMC Shielding

25mm Emi Rfi Shielded Waveguide Air Vents Emi Vent Panel MRI RF EMC Shielding

  • Highlight

    Rfi Shielded Waveguide Air Vents

    ,

    Emi Shielded Waveguide Air Vents

    ,

    25mm honeycomb ventilation panels

  • Type
    RC Filter
  • Transfer Function
    Low Pass
  • Package Type
    Surface Mount
  • Nominal Center Frequency
    /
  • 3dB Bandwidth
    /
  • Insertion Loss
    /
  • Input Impedance
    /
  • Stopband Attenuation
    /
  • Honeycomb Filter Mertial
    Brass/steel/Aluminum
  • Honeycomb Filter Thickness
    12.5-25mm
  • Honeycomb Filter Packing
    Wooden Packing
  • Honeycomb Filter Standard Thickness
    12.5mm, 19mm, 25mm
  • Honeycomb Filter Frame
    Customized
  • Honeycomb Filter Size
    300*300 600*600
  • Honeycomb Filter Application
    Rf Shielding Room
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    HZ
  • Certification
    CE RoHS
  • Model Number
    HZ
  • Minimum Order Quantity
    >=1 Pieces
  • Price
    $100.00
  • Packaging Details
    woonden case
  • Supply Ability
    10000 Piece/Pieces per Month

25mm Emi Rfi Shielded Waveguide Air Vents Emi Vent Panel MRI RF EMC Shielding

EMI RFI shield ventilation air filter for faraday cage

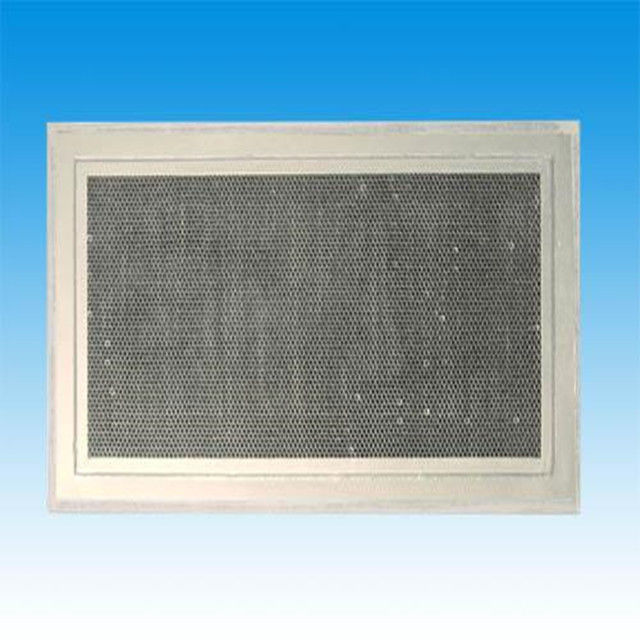

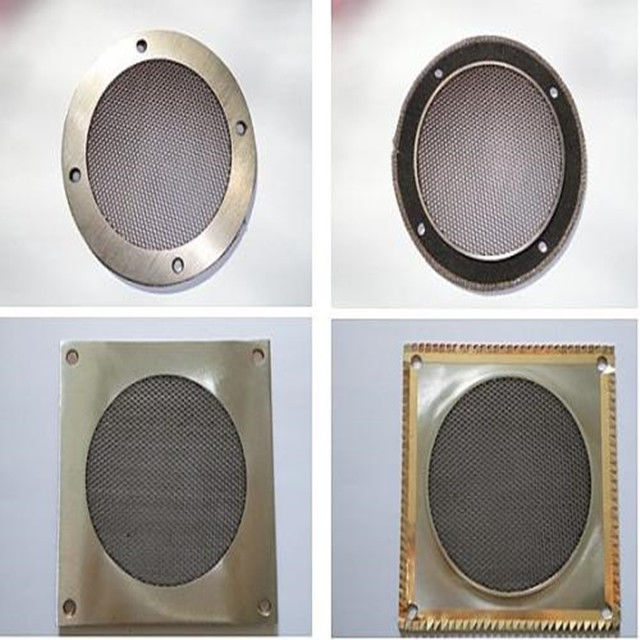

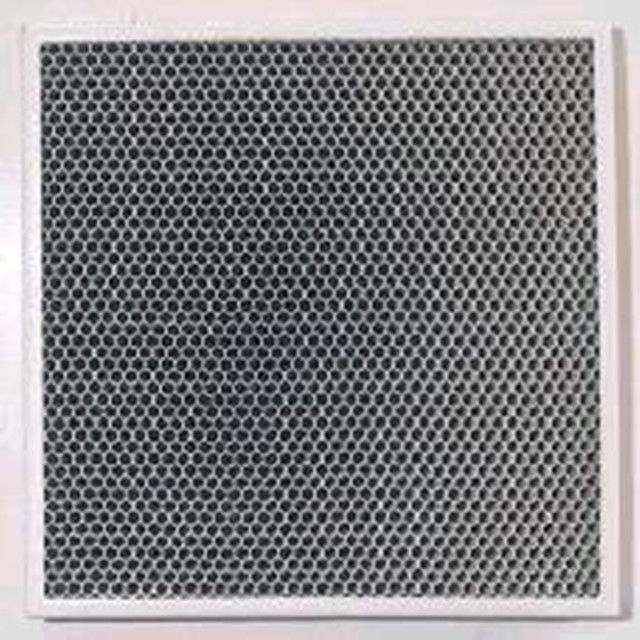

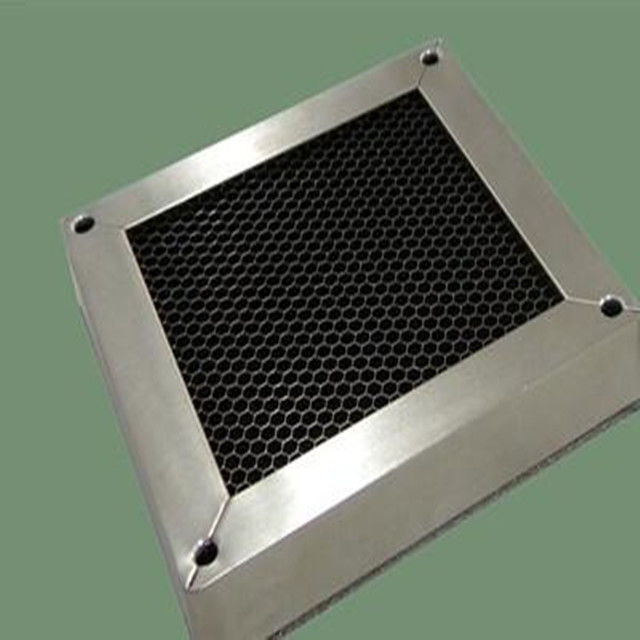

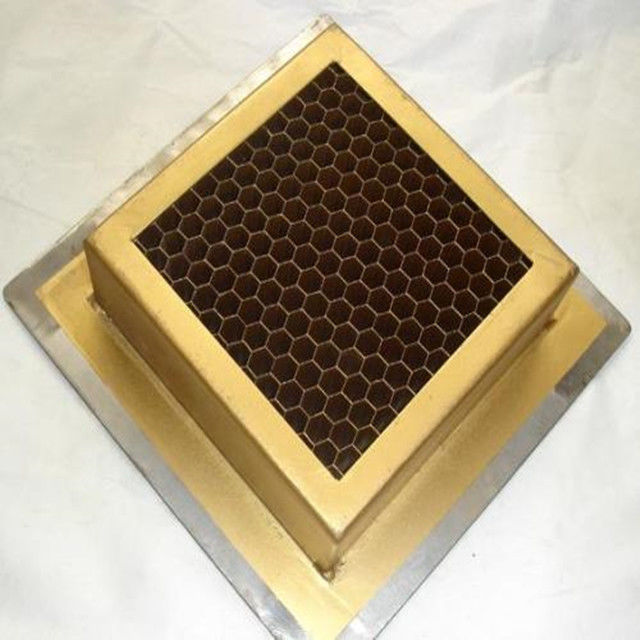

EMI shielding vent panels or attenuvents are made from aluminium or steel honeycomb mounted into a frame. Many aluminium frame styles are available together with different thicknesses and configuration of honeycomb to meet different shielding requirements. Protective grilles are available for vulnerable areas together with dust filtration foams. Many plated or painted finishes can be specified.



1. Material:Steel, brass,stainless steel,aluminum

2. standard size: 300x300mm, 300x600mm
3. Standard cell size: 3.2/4.0/4.8mm

4. MOQ 1 piece



Product Features

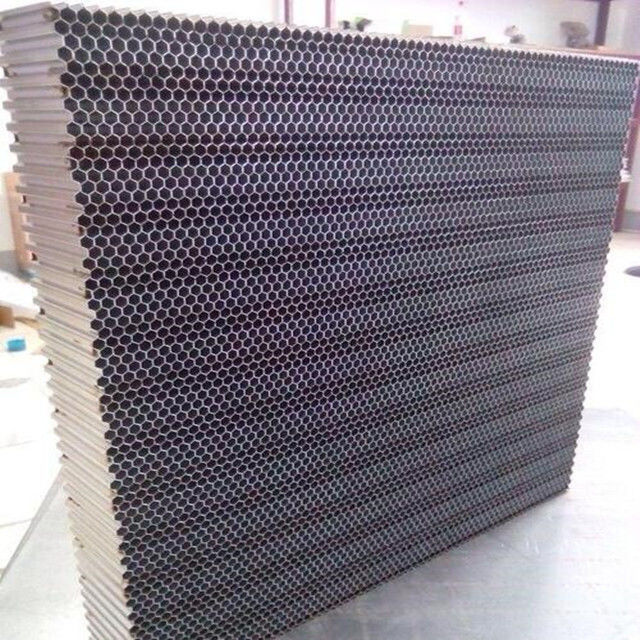

Honeycomb filter use for shielding room and cabinet
Materials: Steel, brass, Aluminum, Stainless steel
The waveguide vent provides maximum RF attenuation while allowing optimum airflow
We can also produce various customized specification for civil or military use according to customer`s requirements.
High quality, Reasonable price and Short delivery, sample order accept
Technical Specifications
Honeycomb Standard Thickness(mm) 12.5mm/19mm/25mm/50mm
Honeycomb standard size 300x300/300x600/450x450/600x600mm
Hole size 3.2mm/4.0mm/4.8mm
The frame materials Brass, Steel, Stainless steel
MOQ 1PCS
Shielding Performance
Magnetic field 14KHz≥75dB 150KHz≥100dB
Electric field 200KHz-50MHz≥110dB
Flatwave 50MHz-1GHz≥110dB
Microwave

1GHz-10GHz≥100dB

10GHz-18GHz≥90dB
