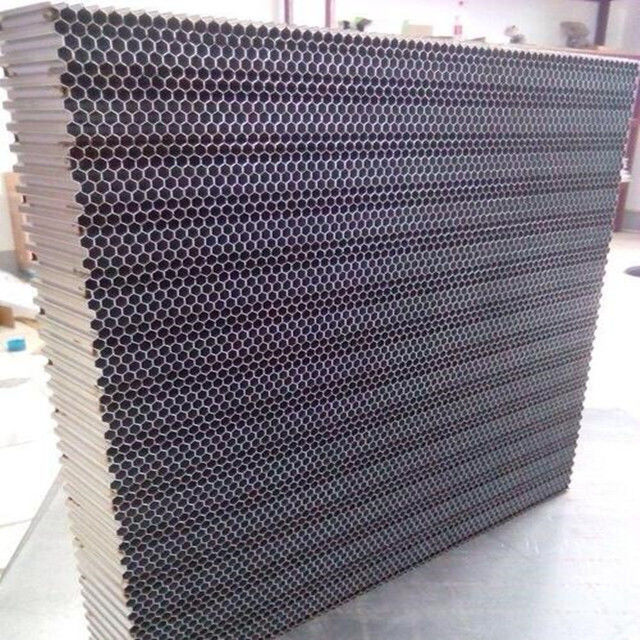

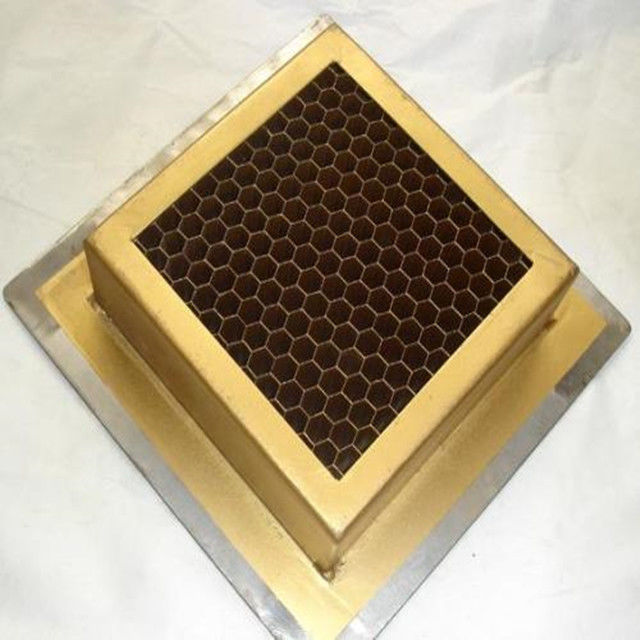

EMI RFI shield honeycomb ventilation air filter for faraday cage
Brass/Steel/ Stainless steel honeycomb
1. Material:Steel, brass,stainless steel,aluminum
2. standard size: 300x300mm, 300x600mm
3. Standard cell size: 3.2/4.0/4.8mm
4. MOQ 1 piece
| Product Features | |
| Honeycomb filter use for shielding room and cabinet | |
| Materials: Steel, brass, Aluminum, Stainless steel | |
| The waveguide vent provides maximum RF attenuation while allowing optimum airflow | |
| We can also produce various customized specification for civil or military use according to customer`s requirements. | |
| High quality, Reasonable price and Short delivery, sample order accept | |
| Technical Specifications | |
| Honeycomb Standard Thickness(mm) | 12.5mm/19mm/25mm/50mm |
| Honeycomb standard size | 300x300/300x600/450x450/600x600mm |
| Hole size | 3.2mm/4.0mm/4.8mm |
| The frame materials | Brass, Steel, Stainless steel |
| MOQ | 1PCS |
| Shielding Performance | |
| Magnetic field | 14KHz≥75dB 150KHz≥100dB |
| Electric field | 200KHz-50MHz≥110dB |
| Flatwave | 50MHz-1GHz≥110dB |
| Microwave |
1GHz-10GHz≥100dB 10GHz-18GHz≥90dB |
Our products are sold all over the world, you can rest assured.
