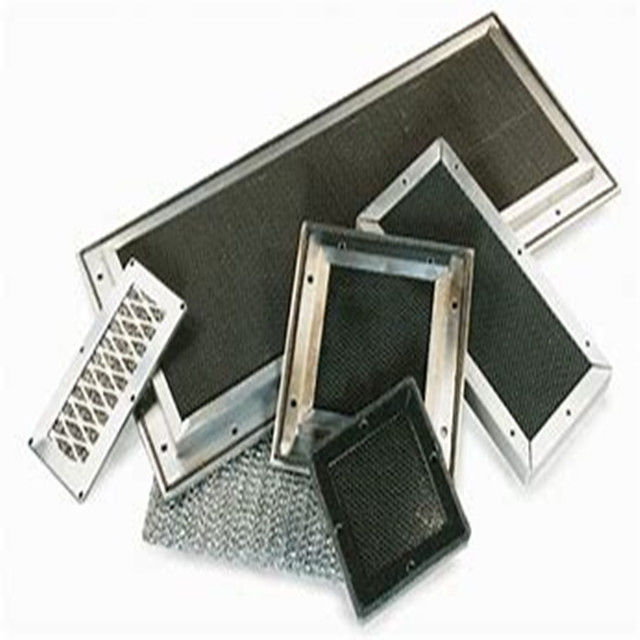

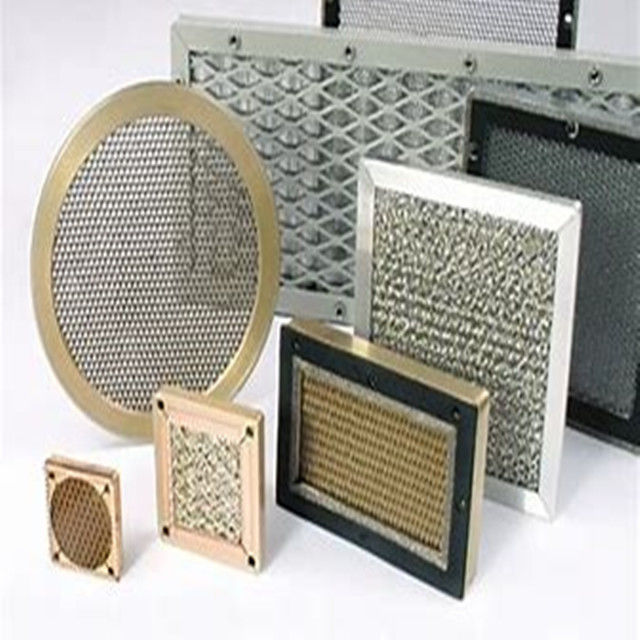

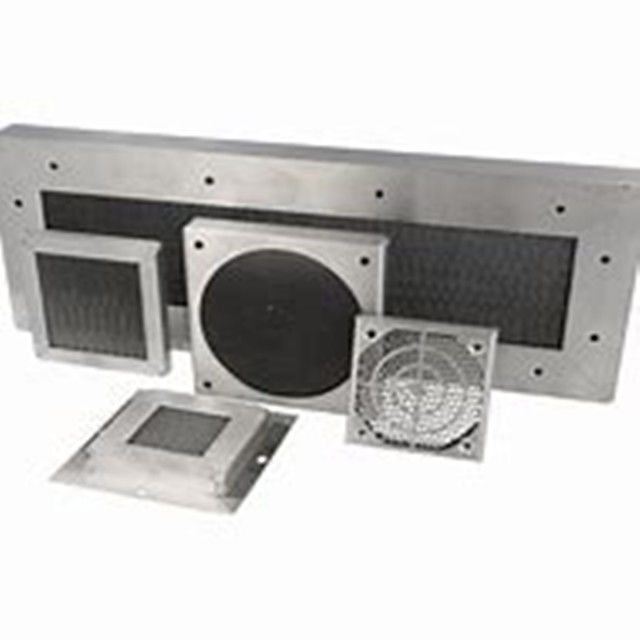

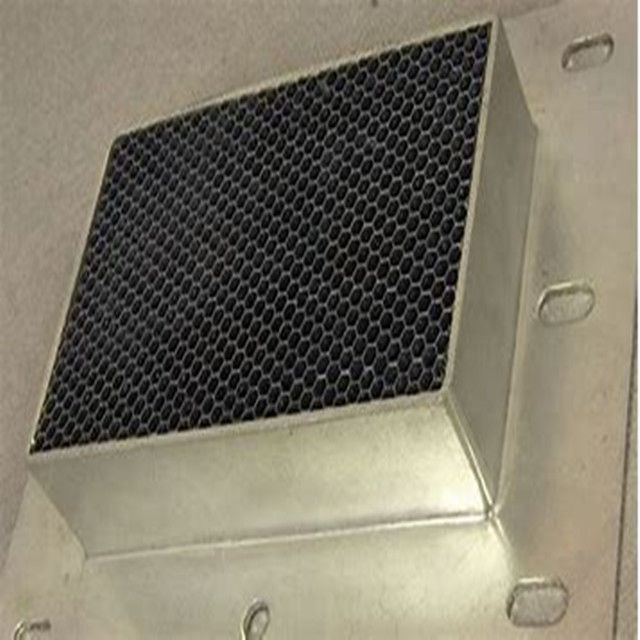

EMI RFI shield ventilation air filter for mri faraday cage brass material
Features for honeycomb vent window for shielding room
1- Provide maximum RF attenuation while allowing optimum airflow.
2- Available to suit individual requirements
3- Soldering waveguide windows use imported tin-plating to press molding, to ensure the quality while transport and assembly process and guarantee the shielding effect.
4- Produce various customized specification for civil or military use
Standard Dimension for honeycomb vent window for shielding room
|
Honeycomb Materials |
(A) Steel (B) Brass (C) Stainless stee (D) Aluminum |
|
Honeycomb Size |
(A) 300*300mm (B) 300*600mm (C) 450*450mm (D) 600*600mm (E) 600*900mm |
|

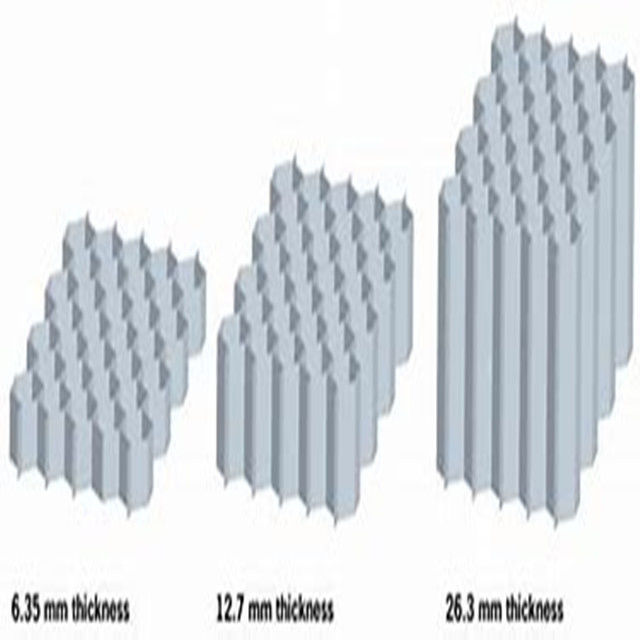

Honeycomb Thickness |
(A) 12.5mm (B) 19mm (C) 25mm (D) 50mm |
|
The Hole size |
(A) 3.2mm (B) 4.0mm (C) 4.8mm |
|
Frame Type |
(A) With frame (B) Without frame |
Sheilding Performance for honeycomb vent window for shielding room
| Magnetic field |
14KHz≥75dB 150KHz≥100dB |
| Electric field | 200KHz-50MHz≥110dB |
| Flat wave | 50MHz-1GHz≥110dB |
| Microwave |
1GHz-10GHz≥100dB |
