12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels

12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels

  • High Light

    emi air filter

    ,

    12.5MM EMI Vents

    ,

    emi shielding honeycomb vents

  • Type
    RC Filter
  • Transfer Function
    Low Pass
  • Package Type
    Surface Mount
  • Nominal Center Frequency
    /
  • 3dB Bandwidth
    /
  • Insertion Loss
    /
  • Input Impedance
    /
  • Stopband Attenuation
    /
  • Honeycomb Filter Mertial
    Brass/steel/Aluminum
  • Honeycomb Filter Thickness
    12.5-25mm
  • Honeycomb Filter Packing
    Wooden Packing
  • Honeycomb Filter Standard Thickness
    12.5mm, 19mm, 25mm
  • Honeycomb Filter Frame
    Customized
  • Honeycomb Filter Size
    300*300 600*600
  • Honeycomb Filter Application
    Rf Shielding Room
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    HZ
  • Certification
    CE RoHS
  • Model Number
    HZ
  • Minimum Order Quantity
    >=1 Pieces
  • Price
    $100.00
  • Packaging Details
    woonden case
  • Supply Ability
    10000 Piece/Pieces per Month

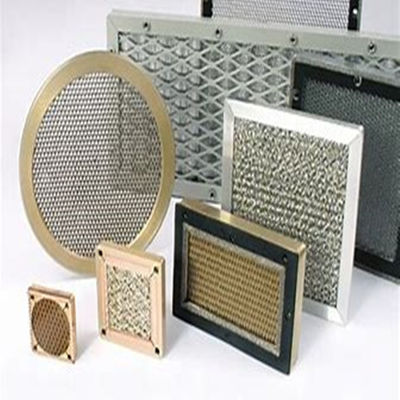

12.5MM EMI Honeycomb Air Vents Filter Stainless Steel Honeycomb Ventilation Panels

EMI RFI shield ventilation air filter for mri rf shielding stainless steel material



Honeycomb vents are used to shield openings for ventilation or acoustic/visual contact. We can make these vents according to your drawing within a few days, or you can use our standard range from stock.



We can supply Honeycomb vents with frames, pre-drilled with fasteners, or with flow-drilled thread holes. The standard material is aluminium which can be given a nickel finish (or any other finish you choose).



If high shielding levels are required, the use of cross-cell honeycombs is recommended. These are constructed from multiple sections of 6.35 mm or 12.7 mm or 26.3 mm thick honeycombs within a single frame. The shielding performance will improve as airflow is decreased, but not eliminated.



Features for honeycomb vent window for shielding room

1- Provide maximum RF attenuation while allowing optimum airflow.

2- Available to suit individual requirements

3- Soldering waveguide windows use imported tin-plating to press molding, to ensure the quality while transport and assembly process and guarantee the shielding effect.

4- Produce various customized specification for civil or military use



Standard Dimension for honeycomb vent window for shielding room

 Honeycomb Materials

 (A) Steel                                                         (B) Brass

 (C) Stainless stee

 (D) Aluminum

 Honeycomb Size

 (A) 300*300mm

 (B) 300*600mm

 (C) 450*450mm

 (D) 600*600mm

 (E) 600*900mm

 Honeycomb Thickness

 (A) 12.5mm

 (B) 19mm

 (C) 25mm

 (D) 50mm

 The Hole size

 (A) 3.2mm

 (B) 4.0mm

 (C) 4.8mm

 Frame Type

 (A) With frame

 (B) Without frame





Sheilding Performance for honeycomb vent window for shielding room



 Magnetic field

 14KHz≥75dB

 150KHz≥100dB

 Electric field

 200KHz-50MHz≥110dB

 Flat wave

 50MHz-1GHz≥110dB

 Microwave

 1GHz-10GHz≥100dB
 10GHz-18GHz≥90dB
