Radiation Absorbent Rf Foam Absorber RF Absorbing Material For Radar Telecom System

Radiation Absorbent Rf Foam Absorber RF Absorbing Material For Radar Telecom System

  • Highlight

    RF Absorbing Material Pyramidal

    ,

    rf foam absorber

    ,

    600mm RF Absorbing Material

  • Size
    600*600 Or Customized
  • Height
    10 30 50 80 100
  • Color
    Blue
  • Reflectivity
    10-50dB
  • Customized
    Accept
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Haozhuo
  • Certification
    CE RoHS
  • Model Number
    HZ series
  • Minimum Order Quantity
    >=1 Square Meters
  • Price
    $50.00
  • Packaging Details
    carton
  • Supply Ability
    1000000 Square Meter/Square Meters per Week

Radiation Absorbent Rf Foam Absorber RF Absorbing Material For Radar Telecom System

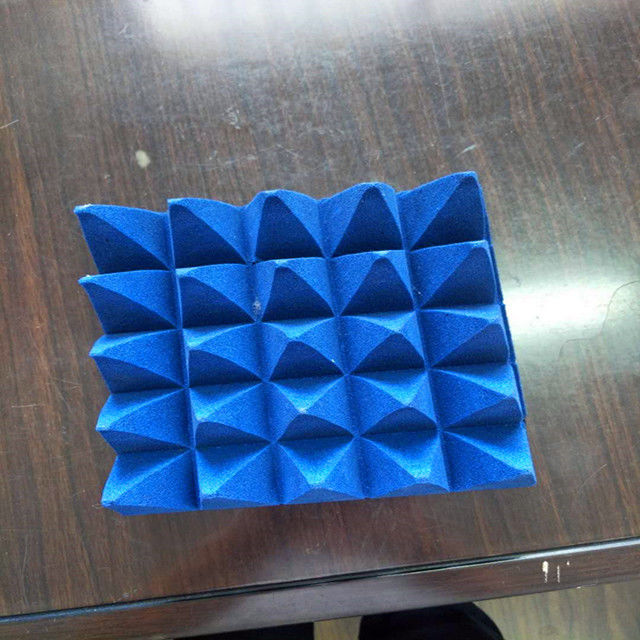

Pyramidal foam absorber for rf shielding room

  • Frequency range: 30 MHz - 110 GHz
  • Power Handling: 1.5 kW/m²
  • Typical Reflection Loss: 35-45 dB
  • Oxygen index ≥29% (GB/T2406-93), flame retardant B2 level (GB8624-1997)
  • Working temp: -60C~90C
  • Relative humidity: 55%±15%



RF Foam Absorber Types

· Rubber sheet micromave absorber

· Carbon-based foam microwave absorber

· Honeycomb & high power microwave absorber

· Sprayable microwave absorber

· Rigid and castable microwave absorber



TYPE BASE SIZE NUMBER OF PYRAMIDAL WEIGHT TOTAL HEIGHT BASE HEIGHT PYRAMIDAL HEIGHT

PYRAMIDAL

WIDTH

HZ-30 500*500 36*36 1.1 30 15 15 14
HZ-50 500*500 20*20 1.8 50 20 30 25
HZ-70 500*500 20*20 2.5 70 20 50 25
HZ-100 500*500 13*13 3.3 100 25 75 38
HZ-150 500*500 9*9 4.8 150 30 120 56
HZ-200 500*500 7*7 6.3 200 40 160 71
HZ-300 500*500 5*5 9 300 60 240 100
HZ-400 500*500 4*4 12 400 70 330 125
HZ-500 500*500 3*3 15 500 80 420 167
HZ-600 400*400 2*2 18 600 90 510 200
HZ-700 250*500 1*2 21 700 100 600 250
HZ-800 250*500 1*2 24 800 100 700 250
HZ-1000 334*334 1*1 30 1000 150 850 3



TYPE HEIGHT REFLECTIVITY
40 15 10 3 1.5 0.5 0.3 0.2 0.15
HZ-100 100 50 45 40 30 20
HZ-150 150 50 50 45 33 25
HZ-200 200 50 50 50 37 30 17
HZ-300 300 50 50 50 40 33 20
HZ-400 400 50 50 50 45 40 25 17
HZ-500 500 50 50 50 45 40 30 20 17
HZ-600 600 50 50 50 50 40 30 25 20
HZ-700 700 50 50 50 50 43 35 30 20 17
HZ-800 800 50 50 50 50 45 36 30 20 17
HZ-1000 1000 50 50 50 50 45 38 35 25 20






RF Foam Absorber Basic Information

· Base size: 500*500mm, customized acceptable

· Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm



RF Foam Absorber Features

· The traditional material for anechoic chambers

· Outstanding absorbing over a wide frequency range

· Flexible



About US

  • Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
  • Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
  • Our test equipment: LCR digital bridge/voltage proof tester/insulation resistance tester/spectrum analyzer/inductor tester/standard signal source/shield room/interference intensity tester etc
  • Our product: EMI filter for general purpose/EMI filter for frequency inverter/EMI filter for shielding facility/EMI filter for military application
  • Our advantage: high quality/high cost-effective/short lead time
  • Our service: all products have two years guarantee
  • Our main customers: frequency inverter drive and servo drive system/MRI shielding system/solar inverter system/rail transit system etc
