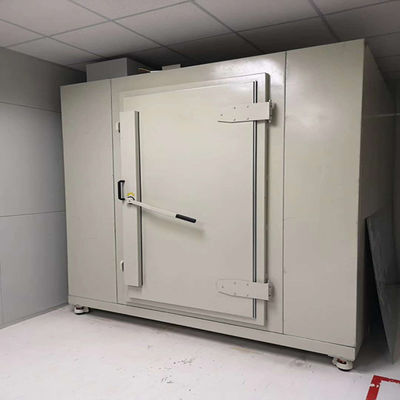

1.2m Faraday Cage RF EMI Shielding Gate For Rf Shielding Enclosure

1.2m Faraday Cage RF EMI Shielding Gate For Rf Shielding Enclosure

  • High Light

    RF EMI Shielding Gate


    1.2m RF door


    1.2m faraday cage door

  • Open Style
  • Door Material
    Galvanized Steel
  • Standard Opening Size
  • Shielding Performance
    14KHz-40GHz, Meet 75-120dB
  • Hardware
    Beryllium Copper Fingers
  • Door Type 1
    Manual Door, Electric Door, Pneumatic Door
  • Door Type 2
    Single Door Or Double Door
  • Door Type 3
    Single Knife Or Double Knife
  • Port
  • Place of Origin
    Jiangsu, China
  • Brand Name
  • Certification
    CE RoHS
  • Model Number
    HZ 1.2m
  • Minimum Order Quantity
    >=1 Pieces
  • Price
  • Packaging Details
    wooden case 1 pcs in one wooden case
  • Supply Ability
    1000 Piece/Pieces per Month

1.2m Faraday Cage RF EMI Shielding Gate For Rf Shielding Enclosure

1.2m Rf Door For Rf Shielding Enclosure High Quality Competitive Price


The following components comprise an effective EMI/RFI management solution:

  • A complete Faraday Cage over the EMI/RFI transmitting components that are tied to a true ground.
  • The EMI/RFID shielding cans or lids are the last resort and can always be relied on if the circuit design cannot take care of the EMI/RFI noise.
  • A good EMI/RFI gasket made of compressible metal springs or a conductive rubber is the solution when a large area inside a cabinet must be addressed.
  • If a see through window is required, a blackened mesh over a transparent window is a good solution.
  • If there is still EMI/RFI leakage, a good conductive caulk will take care of it.
  • Conductivity of the shielding materials is directly related to the shielding effectiveness of the solution, then followed by the thickness of the shielding materials.
  • Ventilation holes along the top surfaces are currently the only solution when heat must be removed for the components inside the shielding can.


Product Descriptio

Size Customized
Material Customized
Attenuation requirements Customized
Packing Wooden packing or customized
Flange With a copper flange for shielding


Features for RF shielding door for EMC chamber

1. The most widely used electromagnetic shielding door nowadays. Access control system can be added.

2. Using high performance Becu fingerstrips, long service life, easy and convenient to open and close.

3. Hinge rotation, single & double knife edge technology, double shielding effectiveness performance

4. Two-point latching mechanism for tight, locking seat frame with roller bearings structure, running smooth and light

5. PESD series RF shielding door compliance to GB/T-12190-2006, GJB5792-2006, LEEE Std 299-1997, MIL-STD-285:1956 Standards.


Application for RF shielding door for EMC chamber

- Nuclear magnetic resonance(NMR)

- Shielding room

- Communications room

- Security room and laboratory

- MRI room

- Military office


Options for RF shielding door for EMC chamber

Door type 1: Manual door, Electric door, Pneumatic door.

Door type 2: Single door or double door

Door type 3: Single knife or double knife
