220VAC Electronics AC EMI Mains Filter For RF Shielding

220VAC Electronics AC EMI Mains Filter For RF Shielding

  • High Light

    RF Shielding EMI mains filter

    ,

    electronics EMI mains filter

    ,

    220VAC electronics power line filter

  • PRODUCT
    EMI POWER FILTER FOR RF SHIELDING
  • RATED CURRENT
    16A
  • RATED FREQUENCY
    50/60Hz
  • RATED VOLTAGE
    220VAC
  • Voltage Drop
    Less Than 1V
  • Overload
    140% Of Rated Current For 15 Minutes
  • Harmonic Distortion
    Less Than 2% @ Full Rated Current
  • Dielectric Withstanding Voltage
    1000VDC (line To Line) 1000VDC (line To Case)
  • Shielding Effective
    10KHz≥60dB
  • DC Insulation Resistance
    As Per MIL-STD-202 Method 202
  • Climatic Classification
    25/070/21
  • Place of Origin
    P.R.CHINA
  • Brand Name
    HAOZHUO
  • Certification
    ce
  • Model Number
    HZ-2X16C5
  • Minimum Order Quantity
    10 PCS PER ORDER
  • Packaging Details
    CARTON
  • Supply Ability
    100 PCS PER WEEK

220VAC Electronics AC EMI Mains Filter For RF Shielding

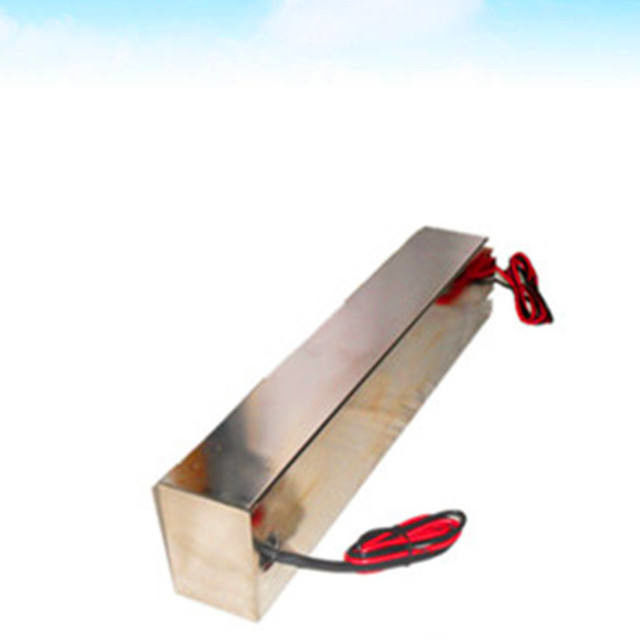

1P 220VAC 50/60 Hz16A EMI POWER LINE FILTER FOR RF SHIELDING ROOM



Most electronics contains an EMI filter, either as a separate device, or embedded in circuit boards. Its function is to reduce high frequency electronic noise that may cause interference with other devices. Regulatory standards exist in most countries that limit the amount of noise that can emitted.



Performance Data

Voltage Drop: Less than 1V

Overload: 140% of rated current for 15 minutes

Harmonic Distortion: Less than 2% @ full rated current

Leakage Current:≤0.2A@380/230VAC and 50Hz

Dielectric Withstanding Voltage: 1000VDC (line to line) 1000VDC (line to case)

DC Insulation Resistance: As Per MIL-STD-202 Method 202

Terminal Strength: As Per MIL-STD-202 Method 211

Temperature Rise: As Per MIL-F-15733

Shielding effective:

10KHz≥60dB



1MHz~20MHz≥100dB



20MHz~18GHz≥100dB



18GHz~40GHz≥80dB



Climatic Classification: 25/070/21



A power line filter, also called EMI power line filter, is a passive bi-directional network, electrical equipment which effectively filters the particular frequency point in the power line or the frequency out of the particular frequency point. Line filters are designed for electromagnetic interference (EMI) in the mains, and it is a frequency-selective two-port network usually composed of inductors, capacitors, resistors. Actually it is a kind of filters and can also be called reflection filter according the working principle. It provides high series impedance and low parallel impedance in the filter stop band, severely mismatching noise source and its impedance with load impedance, thus transmitting the undesired frequency components back to the noise source.



When selecting the power line filter, three main indicators should be considered: first is voltage and current, the following is insertion loss, and finally it is size and structure. Since the filter inside is typically potted, environment is not a main concern. However, the temperature characteristics of all potting materials and filter capacitors have some influence on the environmental characteristics of the power filter.
