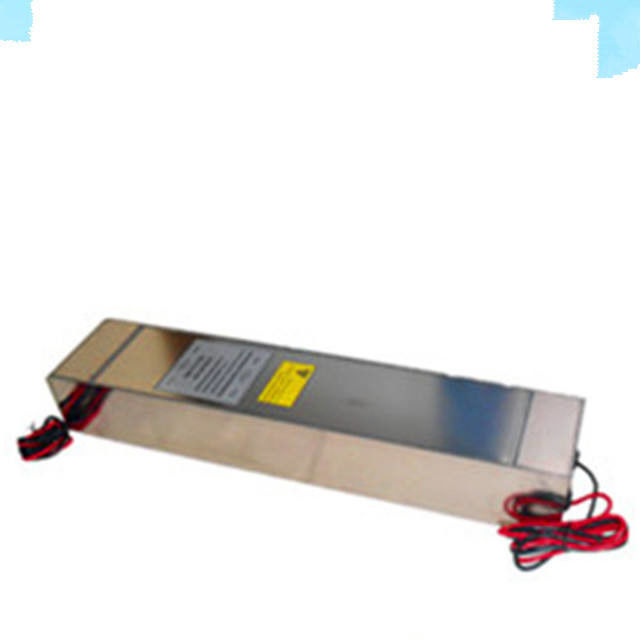

240v 250VAC Single Phase DC Noise Filter Low Pass Inline EMI Power Line Filter high quality

240v 250VAC Single Phase DC Noise Filter Low Pass Inline EMI Power Line Filter high quality

Products - EMI Power Line Filter
  • High Light

    Single Phase DC Noise Filter

    ,

    250VAC DC Noise Filter

    ,

    Low Pass inline EMI filter

  • Type
    EMI Filter
  • Transfer Function
    Low Pass
  • Package Type
    Throught Hole
  • Nominal Center Frequency
    50/60Hz
  • 3dB Bandwidth
    14K
  • Insertion Loss
    100dB
  • Input Impedance
    50ohm
  • Stopband Attenuation
    100dB
  • Rated Voltage
    120/250VAC
  • Rated Current
    16A 30A
  • Operating Frequency
    50/60Hz
  • Application
    Rf Shielding Room
  • Port
    Shanghai
  • Place of Origin
    China
  • Brand Name
    nenglv
  • Certification
    ce
  • Model Number
    HZ-30C-G
  • Minimum Order Quantity
    >=1 Pieces
  • Price
    $170.00
  • Packaging Details
    1 pcs in one carton the gross weight is about 20Kg
  • Supply Ability
    100 Piece/Pieces per Week

240v 250VAC Single Phase DC Noise Filter Low Pass Inline EMI Power Line Filter high quality

  • 240v 250VAC Single Phase DC Noise Filter Low Pass Inline EMI Power Line Filter high quality
Get Price Contact Now
250VAC 30A emi earth line filter rf shielding
  • PHASE DETECT - Phase and the ground wire connection of AC source can be detected automatically.
  • OVERLOAD PROTECTION - The sockets will be powered off when total current over 15A, press RESET button to restore power supply.
  • VOLTAGE PROTECTION - Its circuit detects dangerous voltage irregularities and provides the highest level of surge & spike protection.
  • HEAVY DUTY DESIGN - Metal casin with thickness aluminum plates, come with 6pcs hospital grade filtered outlets and 4pcs industrial grade direct outlets.

Product Description

RATED VOLTAGE 250 VAC
RATED CURRENT 30 A
OPERATIONAL FREQUENCY 50 60 Hz



Voltage Drop
 Less than 1V
Overload 140% of rated current for 15 minutes
Harmonic Distortion Less than 2% @ full rated current
Leakage Current ≤0.2A@380/230VAC and 50Hz
Dielectric Withstanding Voltage 1000VDC (line to line) 1000VDC (line to case)
DC Insulation Resistance As Per MIL-STD-202 Method 202
Terminal Strength As Per MIL-STD-202 Method 211
Temperature Rise As Per MIL-F-15733
Insertion Loss ≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
Climatic Classification 25/070/21



emi earth line filter application

  • Modems
  • Hard-disk systems
  • Computers
  • Data terminals
  • Linear power supplies
  • Systems with switching power supplies
  • SMPS with on-board filter



Our selection of EMI power line filters include single phase filters and three phase filters in an assortment of styles and configurations to meet your specific requirements. Along with promoting compliance with international EMI standards, EMI filters also make your system more reliable and allow you to save money long term by conserving power.

240v 250VAC Single Phase DC Noise Filter Low Pass Inline EMI Power Line Filter high quality 0

240v 250VAC Single Phase DC Noise Filter Low Pass Inline EMI Power Line Filter high quality 1

Our Company
  • We are a professional and famous EMI filter manufacturer.
  • Our technical team has more than 10 years’ experience in designing EMI filter. We know UL VDE CSA CE CQC etc safety standard very well.
  • Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
  • Our test equipment: LCR digital bridge/voltage proof tester/insulation resistance tester/spectrum analyzer/inductor tester/standard signal source/shield room/interference intensity tester etc
