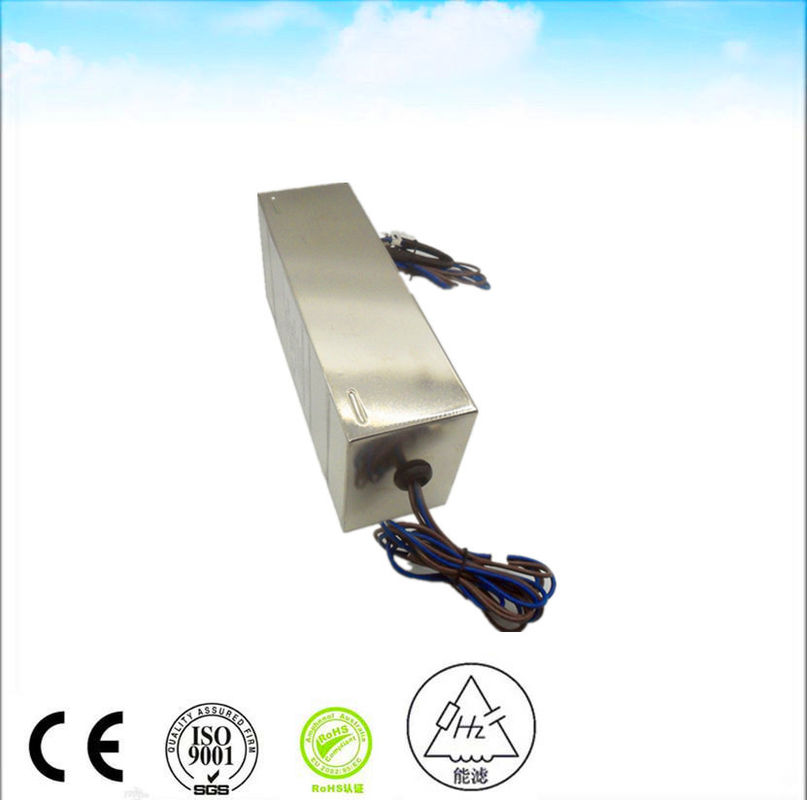

6 Line EMI Power Line Filter 50/60Hz Through Hole

Product Description:

The EMI Power Line Filter is a crucial component in ensuring the efficient operation and protection of electronic devices by minimizing electromagnetic interference (EMI) and radio frequency interference (RFI). This high-quality filter is designed for reliable performance and is suitable for a wide range of applications.

Package Type: Through Hole

Operating Frequency: 50/60Hz

Shielding Effectiveness: 100dB @ 14K-10GHz

Storage Temperature: -40°C to +85°C

Dielectric Strength: 1500VAC for 1 Minute

The EMI Power Line Filter module is engineered to meet the demanding requirements of modern electronic systems. With a package type of Through Hole, this filter can be easily integrated into various circuit designs. The filter's operating frequency of 50/60Hz ensures compatibility with standard power systems, making it ideal for a wide range of applications.

One of the key features of this EMI Line Filter is its exceptional shielding effectiveness of 100dB @ 14K-10GHz. This high level of shielding ensures that electromagnetic and radio frequency interference is effectively suppressed, providing clean power and signal transmission for sensitive electronic components.

With a wide storage temperature range of -40°C to +85°C, this filter is designed to withstand extreme environmental conditions, making it suitable for use in diverse industrial and commercial settings. Whether operating in freezing cold or scorching heat, this filter maintains optimal performance and reliability.

Additionally, the EMI Power Line Filter boasts a dielectric strength of 1500VAC for 1 minute, ensuring robust insulation and protection against electrical breakdown. This feature enhances the safety and longevity of the filter, providing peace of mind for users and system integrators.

Overall, the EMI Power Line Filter is a versatile and dependable solution for mitigating EMI and RFI in electronic systems. Whether used as a standalone EMI filter or as part of an RFI filter assembly, this filter module delivers consistent performance and protection for sensitive electronic devices.

Features:

• Product Name: EMI Power Line Filter
• Dielectric Strength: 1500VAC For 1 Minute
• Transfer Function: Low Pass
• Harmonic Distortion: Less Than 2% @ Full Rated Current
• Shieling Effective: 100dB @ 14K-10GHz
• Termination Style: Screw Terminals

Technical Parameters:

Applications:

EMI Power Line Filters are essential components used to mitigate electromagnetic interference (EMI) and radio-frequency interference (RFI) in various electrical systems. With a shielding effectiveness of 100dB at 14K-10GHz, these filters are highly effective in reducing unwanted noise and disturbances in power lines.

These filters are designed with a Through Hole package type, making them suitable for easy installation on printed circuit boards or in electrical enclosures. The filters feature 6 lines, providing comprehensive filtering capabilities for multiple power lines within a system.

EMI Power Line Filters are particularly useful in scenarios where sensitive electronic equipment is at risk of being affected by EMI and RFI. Common applications include industrial machinery, medical devices, telecommunications equipment, and automotive electronics.

With an operating frequency of 50/60Hz, these filters are optimized for use in standard power systems. The screw terminals termination style simplifies the connection process, ensuring secure and reliable connections.

EMI Power Line Filters serve as crucial components in EMC compliance, as they help systems meet regulatory standards for electromagnetic compatibility. By incorporating these filters into their designs, manufacturers can ensure the reliability and performance of their products in various operating environments.

Overall, the EMI Power Line Filter is a versatile and effective solution for reducing EMI and RFI in power lines, making it an essential component for maintaining the integrity of electronic systems in a wide range of applications.

Customization:

Product Customization Services for the EMI/RFI Power Filter Module:

Storage Temperature: -40°C To +85°C

Operating Frequency: 50/60Hz

Termination Style: Screw Terminals

Transfer Function: Low Pass

Package Type: Through Hole

Customize your EMC Power Line Filter to meet your specific requirements.
