220VAC 16A EMI Power Line Filter RF Shielding

EMI Power Line Filter
December 27, 2025
Category Connection: EMI Power Line Filter
Chat Now Contact Us
Tags:
#emi rfi ac power line filters #signal emi filter #Emi Filter 5A
Brief: From concept to demonstration, this video highlights the evolution and practical outcomes of the 220VAC EMI Power Line Filter. You'll see how this systematic filter design effectively suppresses electromagnetic interference for SMPS and VFD applications, ensuring reliable performance in RF shielding environments. We walk through its working principle, key performance metrics, and real-world testing scenarios to showcase its high attenuation capabilities across a wide frequency range.
Related Product Features:
  • Systematic EMI power line filter design optimized for Switch-Mode Power Supplies (SMPS) and Variable Frequency Drives (VFD).
  • Provides effective RF shielding with attenuation of ≥60dB at 10KHz and ≥100dB from 1MHz to 18GHz.
  • Rated for 220VAC operation with current capacities including 16A, 32A, and 50A versions at 50/60Hz.
  • Features low voltage drop (less than 1V) and minimal harmonic distortion (under 2% at full rated current).
  • Designed with high dielectric strength: 1000VDC line-to-line and 1000VDC line-to-case.
  • Complies with military standards including MIL-STD-202 for DC insulation resistance and terminal strength.
  • Offers reliable overload protection capable of handling 140% of rated current for 15 minutes.
  • Backed by a two-year guarantee and supported by comprehensive technical service and testing capabilities.
FAQs:
  • What is the primary function of this EMI power line filter?
    The filter functions as an impedance adaption network to attenuate electromagnetic interference (EMI) by creating impedance mismatching between input/output sides and power/load sides, effectively smoothing DC output by reducing ripple voltage in power supplies.
  • What applications is this EMI filter suitable for?
    It's designed for various applications including industrial uses like frequency inverter drives, elevators, medical equipment, and military applications, providing noise filtration for SMPS, VFDs, and RF shielding facilities.
  • What are the key performance specifications for RF shielding effectiveness?
    The filter provides excellent shielding effectiveness: ≥60dB at 10KHz, ≥100dB from 1MHz to 18GHz, and ≥80dB from 18GHz to 40GHz, ensuring comprehensive electromagnetic compatibility across broad frequency ranges.
  • What testing standards and quality assurances does this product meet?
    Our products comply with industrial standards like IEC61800-3, EN12015, EN55011 and military standards GJB151A/GJB152A, with all products undergoing rigorous testing and backed by a two-year guarantee.
Related Videos

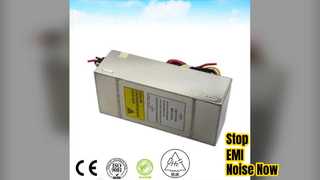

EMI Filter 25A Noise Reduction Up to 1GHz 00:18
