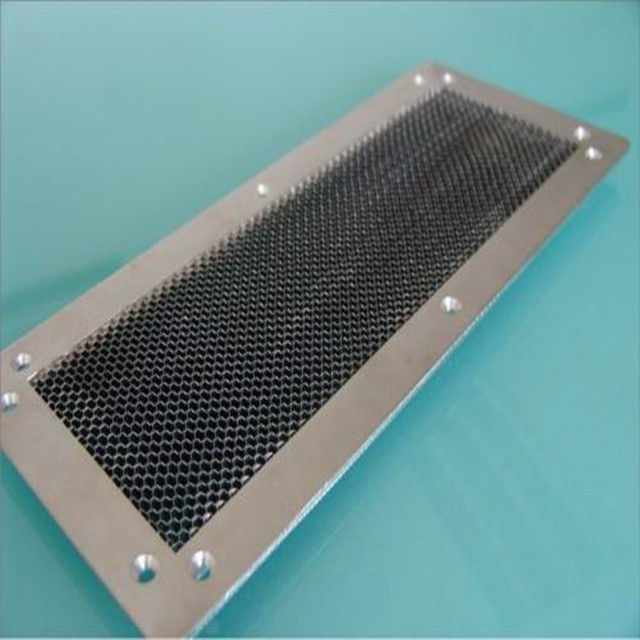

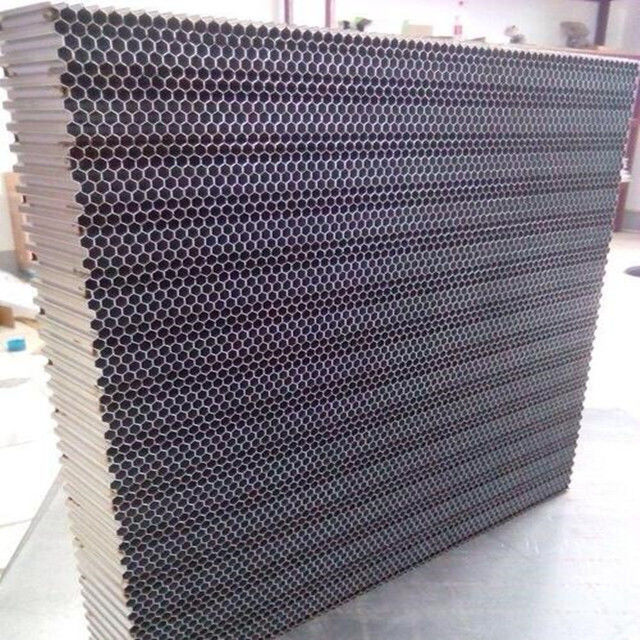

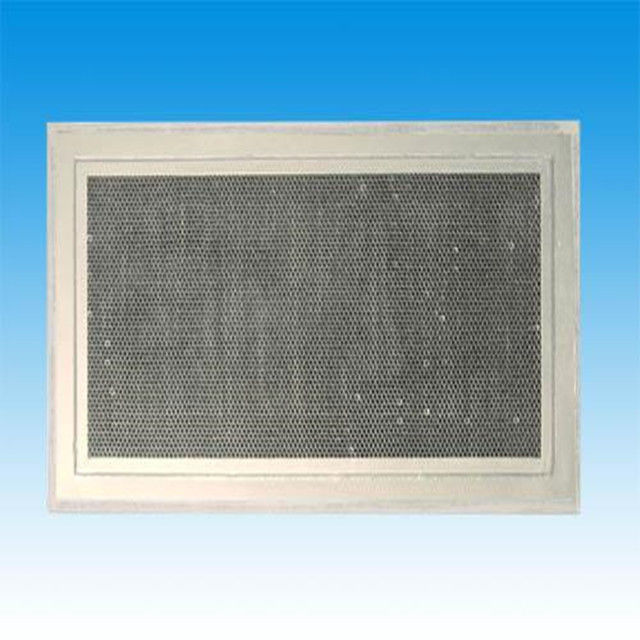

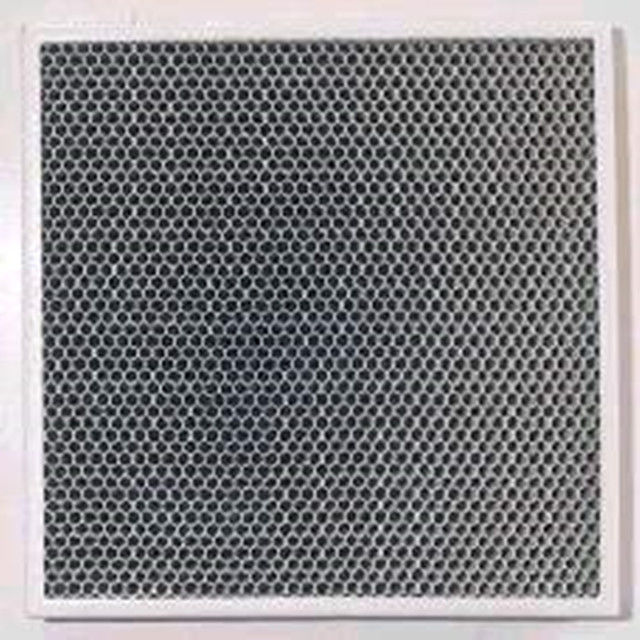

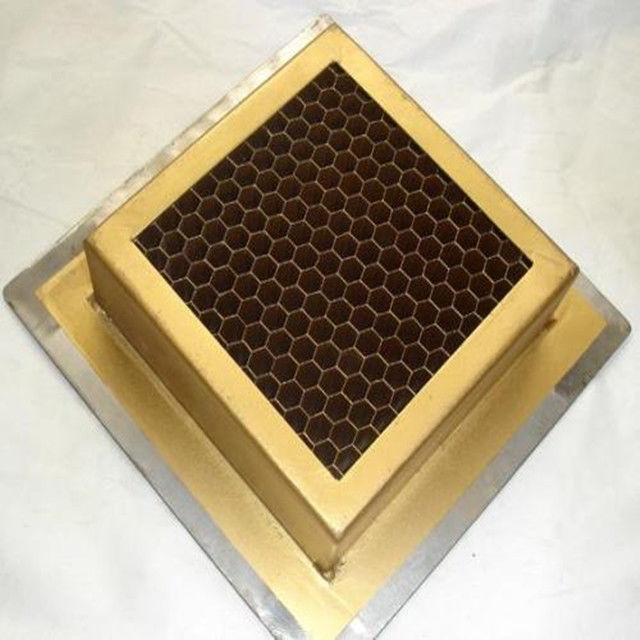

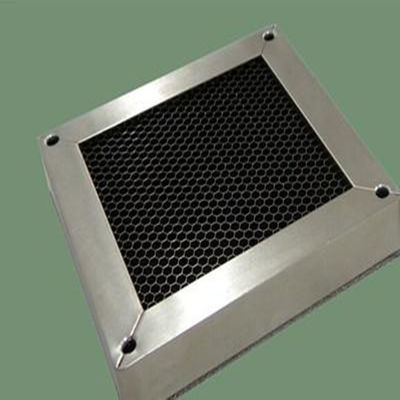

Anechoic Chamber EMI Honeycomb Vents for rf shielding room emc chamber
  • name
  • name
  • name
  • name
  • name
  • name

Anechoic Chamber EMI Honeycomb Vents for rf shielding room emc chamber

MOQ: >=1 Pieces
Price: $100.00
Standard Packaging: woonden case
Supply Capacity: 10000 Piece/Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
HZ
Certification
CE RoHS
Model Number
HZ
Type:
RC Filter
Transfer Function:
Low Pass
Package Type:
Surface Mount
Nominal Center Frequency:
/
3dB Bandwidth:
/
Insertion Loss:
/
Input Impedance:
/
Stopband Attenuation:
/
Honeycomb Filter Mertial:
Brass/steel/Aluminum
Honeycomb Filter Thickness:
12.5-25mm
Honeycomb Filter Packing:
Wooden Packing
Honeycomb Filter Standard Thickness:
12.5mm, 19mm, 25mm
Honeycomb Filter Frame:
Customized
Honeycomb Filter Size:
300*300 600*600
Honeycomb Filter Application:
Rf Shielding Room
Port:
Shanghai
Highlight:

Anechoic Chamber EMI Honeycomb Vents

,

rfi emi vent

,

honeycomb waveguide air vents

Product Description

EMI RFI shield ventilation air filter for anechoic chamber



EMI shielding vent panels or attenuvents are made from aluminium or steel honeycomb mounted into a frame. Many aluminium frame styles are available together with different thicknesses and configuration of honeycomb to meet different shielding requirements. Protective grilles are available for vulnerable areas together with dust filtration foams. Many plated or painted finishes can be specified.



Brass/Steel/ Stainless steel honeycomb
1. Material:Steel, brass,stainless steel,aluminum
2. standard size: 300x300mm, 300x600mm
3. Standard cell size: 3.2/4.0/4.8mm

4. MOQ 1 piece



Product Features

Honeycomb filter use for shielding room and cabinet

Materials: Steel, brass, Aluminum, Stainless steel

The waveguide vent provides maximum RF attenuation while allowing optimum airflow

We can also produce various customized specification for civil or military use according to customer`s requirements.

High quality, Reasonable price and Short delivery, sample order accept

Technical Specifications

Honeycomb Standard Thickness(mm)

12.5mm/19mm/25mm/50mm

Honeycomb standard size

300x300/300x600/450x450/600x600mm

Hole size

3.2mm/4.0mm/4.8mm

The frame materials

Brass, Steel, Stainless steel

MOQ

1PCS

Shielding Performance

Magnetic field

14KHz≥75dB   150KHz≥100dB

Electric field

200KHz-50MHz≥110dB

Flatwave

50MHz-1GHz≥110dB

Microwave

1GHz-10GHz≥100dB

10GHz-18GHz≥90dB



Features for honeycomb vent window for shielding room

1- Provide maximum RF attenuation while allowing optimum airflow.

2- Available to suit individual requirements

3- Soldering waveguide windows use imported tin-plating to press molding, to ensure the quality while transport and assembly process and guarantee the shielding effect.

4- Produce various customized specification for civil or military use



Anechoic Chamber EMI Honeycomb Vents for rf shielding room emc chamberAnechoic Chamber EMI Honeycomb Vents for rf shielding room emc chamber



Tags:

EMI Honeycomb Vent Panel,

Emc shielding vents,

Emi Air Vent Filter
