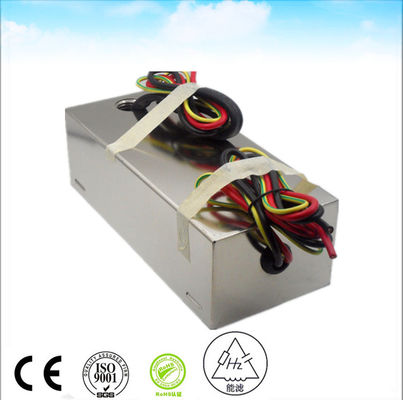

25A Single Phase EMI Filter Design

25A Single Phase EMI Filter Design

  • High Light

    Single Phase emc Filter 25A

    ,

    single phase emi filter design

    ,

    single phase emc filter design

  • Type
    EMI Filter
  • Transfer Function
    Low Pass
  • Package Type
    Throught Hole
  • Nominal Center Frequency
    50/60Hz
  • 3dB Bandwidth
    1
  • Insertion Loss
    100db
  • Input Impedance
    50ohm
  • Stopband Attenuation
    70-100dB
  • Rated Voltage
    250VAC
  • Rated Current
    30A
  • LINES NUMBER
    2
  • Application
    POWER LINE FOR MRI FARADAY CAGE
  • Port
    Changzhou Shanghai Hangzhou Or Others
  • Place of Origin
    Jiangsu, China
  • Brand Name
    Nenglv
  • Certification
    CE RoHS
  • Model Number
    HZ-2X25A
  • Minimum Order Quantity
    >=1 Pieces
  • Price
    $100.00
  • Packaging Details
    8 PCS IN ONE CARTON THE GROSS WEIGHT OF ONE CARTON IS ABOUT 10KG
  • Supply Ability
    1000 Piece/Pieces per Week

25A Single Phase EMI Filter Design


Product Description

Electromagnetic interference (EMI) filters are crucial for a wide range of equipment and devices. Installing an EMI filter helps them function as intended and prevent them from interfering with other devices. Electromagnetic compatibility (EMC) is also a key component of meeting the compliance requirements of global regulations and many industry standards. For EMI filters to provide desired performance, they must be installed correctly. Following best practices for installing EMI filters helps in optimizing their performance and ensures safe compliance margins for the devices.

RATED VOLTAGE 250 VAC
RATED CURRENT 30 A
OPERATIONAL FREQUENCY 50 60Hz
Voltage Drop Less than 1V
Overload 140% of rated current for 15 minutes
Harmonic Distortion Less than 2% @ full rated current
Leakage Current ≤0.2A@380/230VAC and 50Hz
Dielectric Withstanding Voltage 1000VDC (line to line) 1000VDC (line to case)
DC Insulation Resistance As Per MIL-STD-202 Method 202
Terminal Strength As Per MIL-STD-202 Method 211
Temperature Rise As Per MIL-F-15733
Insertion Loss: ≥70dB@150K-10GHz As Per MIL-STD-220A, Under Load Condition
Climatic Classification 25/070/21


While certain best practices apply to almost all EMI filter installations, the installation process for each filter can be slightly different. Because of this variation, be sure to consult the product literature for the EMI filter when installing it or contact application engineering. With that in mind, here are some of the most important recommended installation practices for EMI filters.



The following tips can help ensure proper EMI grounding:

  • Use low impedance connections to connect the various parts of the ground system. Flat wires, for instance, offer lower HF impedance than round wires do.
  • Ensure that all the ground connections are as short as possible. Consider using a flat, braided ground strap, as these components provide increased surface area.
  • Use the largest available area as the ground conductor. The cabinet wall is often a suitable surface.
  • Removing paint from mounting surfaces of the cabinets can help achieve a low impedance bond.
  • To ensure safety and proper performance, make sure the power system ground is connected to the filter ground termination point before connecting any wires.
  • Be sure to research and follow all relevant safety regulations related to grounding.
  • Examine all the connections in your low impedance grounding systems as part of your routine maintenance checks.





25A Single Phase EMI Filter Design 0
25A Single Phase EMI Filter Design 1
