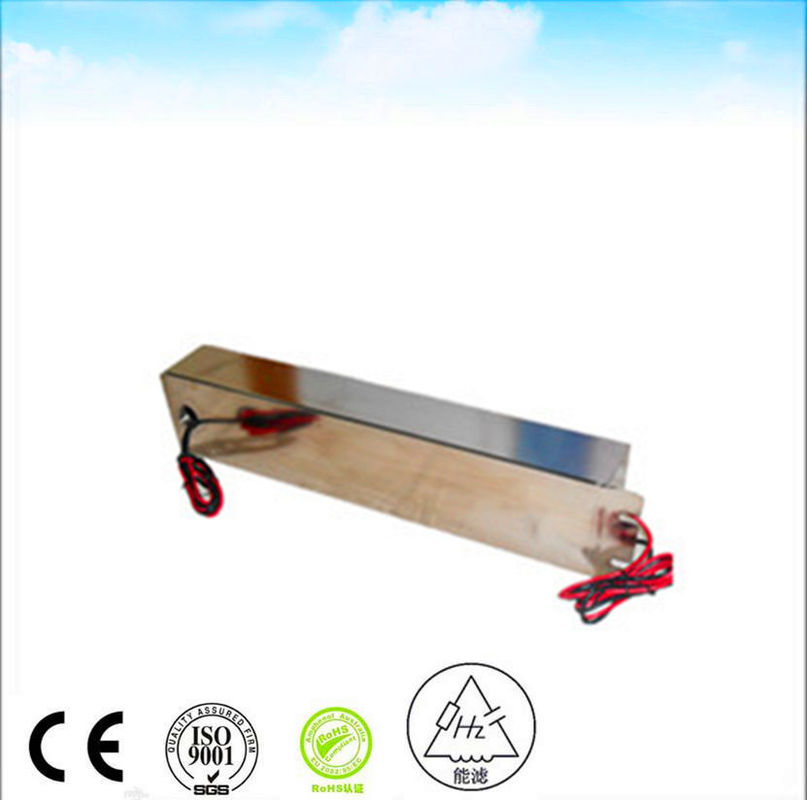

220vac 32A 50a Systematic Emi Power Line Filter Design For Smps Vfd Noise Filter rf shielding

220vac 32A 50a Systematic Emi Power Line Filter Design For Smps Vfd Noise Filter rf shielding

  • High Light

    50a Emi Power Line Filter

    ,

    Systematic Emi Power Line Filter

    ,

    50a Single Phase Line Filter

  • PRODUCT
    EMI POWER FILTER FOR RF SHIELDING
  • RATED CURRENT
    50A
  • RATED FREQUENCY
    50/60Hz
  • RATED VOLTAGE
    220VAC
  • Voltage Drop
    Less Than 1V
  • Overload
    140% Of Rated Current For 15 Minutes
  • Harmonic Distortion
    Less Than 2% @ Full Rated Current
  • Dielectric Withstanding Voltage
    1000VDC (line To Line) 1000VDC (line To Case)
  • Shielding Effective
    10KHz≥60dB
  • DC Insulation Resistance
    As Per MIL-STD-202 Method 202
  • Climatic Classification
    25/070/21
  • Place of Origin
    P.R.CHINA
  • Brand Name
    HAOZHUO
  • Certification
    ce
  • Model Number
    HZ-2X50C5
  • Minimum Order Quantity
    10 PCS PER ORDER
  • Packaging Details
    CARTON
  • Supply Ability
    100 PCS PER WEEK

220vac 32A 50a Systematic Emi Power Line Filter Design For Smps Vfd Noise Filter rf shielding

1P 220VAC 50/60 Hz16A EMI POWER LINE FILTER FOR RF SHIELDING ROOM



Power line filter's principle is an impedance adaption network: the larger the impedance mismatching between line filter input & output side and power & load side, the more effective the attenuation of electromagnetic interference (EMI). The specific working principle is as follows. After AC is rectified by diode, the direction is single, but the current intensity is still constantly changing. Generally, this ripple DC is not directly used to power supply. To make the ripple DC into a smooth waveform, one thing need to be done, that is filtering. In other words, the task of filters is to reduce the ripple in the output voltage of the rectifier as much as possible and transform it into near constant DC.



Performance Data

Voltage Drop: Less than 1V

Overload: 140% of rated current for 15 minutes

Harmonic Distortion: Less than 2% @ full rated current

Leakage Current:≤0.2A@380/230VAC and 50Hz

Dielectric Withstanding Voltage: 1000VDC (line to line) 1000VDC (line to case)

DC Insulation Resistance: As Per MIL-STD-202 Method 202

Terminal Strength: As Per MIL-STD-202 Method 211

Temperature Rise: As Per MIL-F-15733

Shielding effective:

10KHz≥60dB



1MHz~20MHz≥100dB



20MHz~18GHz≥100dB



18GHz~40GHz≥80dB



Climatic Classification: 25/070/21

The commonly-used filter circuits of power line filters have passive filtering and active filtering. The main forms of passive filtering are capacitive filtering, inductive filtering and complex filtering (including inverted L-type, LC filtering, LC π-type filtering and RC π-type filtering, etc.). The main form of active filtering is active RC filtering, also known as electronic filters. The magnitude of the ripple component in DC electricity is represented by the ripple coefficient S: the larger the value, the worse the filtering effect of the filter.



  1. Our technical service team learn many kinds of test standard such as industrial application (IEC61800-3 for frequency inverter drive EN12015 for elevator EN55011 for ISM device etc) and military application (GJB151A GJB152A etc).We can solve EMI problem quickly effectively and low-costly.
  2. Our test equipment: LCR digital bridge/voltage proof tester/insulation resistance tester/spectrum analyzer/inductor tester/standard signal source/shield room/interference intensity tester etc
  3. Our product: EMI filter for general purpose/EMI filter for frequency inverter/EMI filter for shielding facility/EMI filter for military application
  4. Our advantage: high quality/high cost-effective/short lead time
  5. Our service: all products have two years guarantee

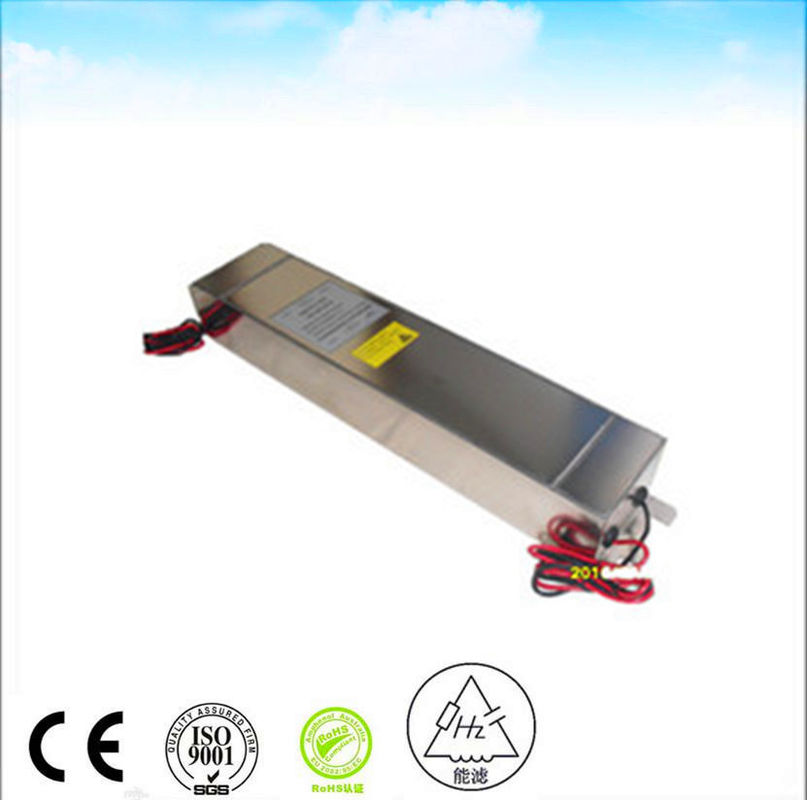

220vac 32A 50a Systematic Emi Power Line Filter Design For Smps Vfd Noise Filter rf shielding 0

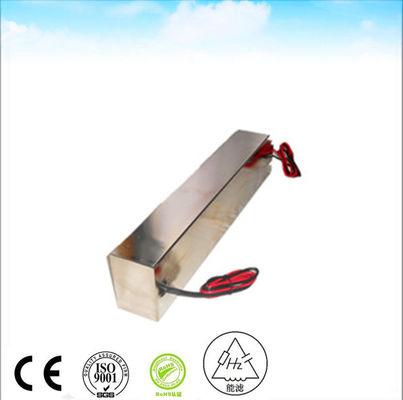

220vac 32A 50a Systematic Emi Power Line Filter Design For Smps Vfd Noise Filter rf shielding 1

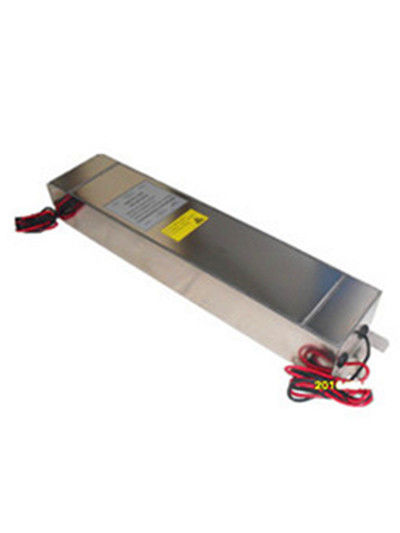

220vac 32A 50a Systematic Emi Power Line Filter Design For Smps Vfd Noise Filter rf shielding 2
