High Performance EMC Testing Chamber RF Shielding Room 40GHz

High Performance EMC Testing Chamber RF Shielding Room 40GHz

Products - RF Shielding Room
  • High Light

    40GHz EMC Testing Chamber

    ,

    RF Shielding Room 40GHz

    ,

    EMC Testing RF Shielding Room

  • Type
    RC Filter
  • Transfer Function
    Low Pass
  • Testing Standard
    Customized
  • EMC Chamber Type
    Semi-EMC Chamber Or Full EMC Chamber
  • Testing Service
    Testing Service Is Accept
  • Warranty
    1 Year
  • RF Chamber Door Size
    Standard Size 2.38*1.2M, Customized Accepted
  • RF Shield Room Panel
    2mm Or 3mm Galvanized Steel Panel
  • RF Shielding Room Packing
    Wooden Carton Packing
  • Anechoic Chamber Delivery Time
    3-5 Weeks
  • RF Room Attenuation
    14KHz-40GHz More Than 100dB
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    haozhuo
  • Model Number
    customized
  • Minimum Order Quantity
    >=1 Sets
  • Price
    $15,000.00
  • Supply Ability
    1 Set/Sets per Month

High Performance EMC Testing Chamber RF Shielding Room 40GHz

  • High Performance EMC Testing Chamber RF Shielding Room 40GHz
  • High Performance EMC Testing Chamber RF Shielding Room 40GHz
  • High Performance EMC Testing Chamber RF Shielding Room 40GHz
  • High Performance EMC Testing Chamber RF Shielding Room 40GHz
  • High Performance EMC Testing Chamber RF Shielding Room 40GHz
  • High Performance EMC Testing Chamber RF Shielding Room 40GHz
Get Price Contact Now

Anechoic Chamber

Anechoic Chamber Description

we provide Semi-EMC Chamber and Full EMC Chamber for EMC Testing.



An Anechoic Chamber generally consists of an RF shielded room which is either partially or fully lined with RF absorber material. It is used to perform several types of testing and measurements.



our chambers are typically constructed from the modular shielding system.



EMC anechoic test chambers are used by industry to perform radiated emissions and radiated immunity testing of electrical/electronic equipment to various International specifications such as EN 50147 part 2 / ANSI C63.4 / EN55022 / EN61000-4-3 and various CISPR documents.



Chambers are also designed for EMC testing for testing in accordance with military and avionics specifications such as MIL STD 4612E, DO 160 and DEF STD 59-41.



we offers a fully range of anechoic chambers, including:

Antenna EMC Testing Chamber
Compact Chambers
3 Meter Chambers
5 Meter Chambers
10 Meter Chambers
Free Space Chambers
MIL-STD Chambers

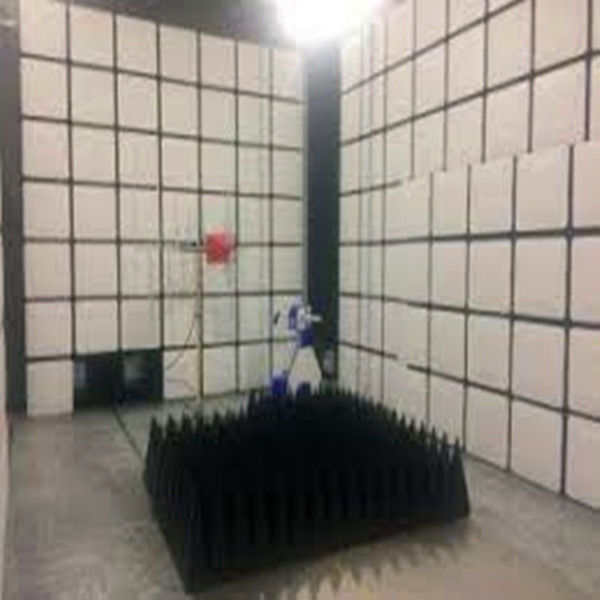

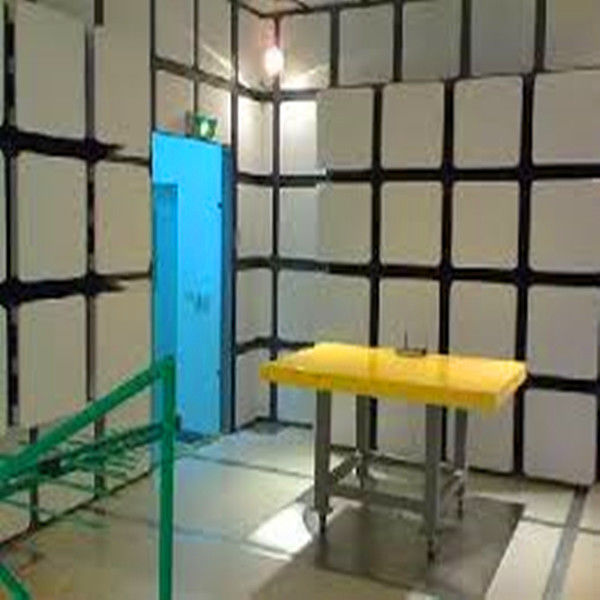

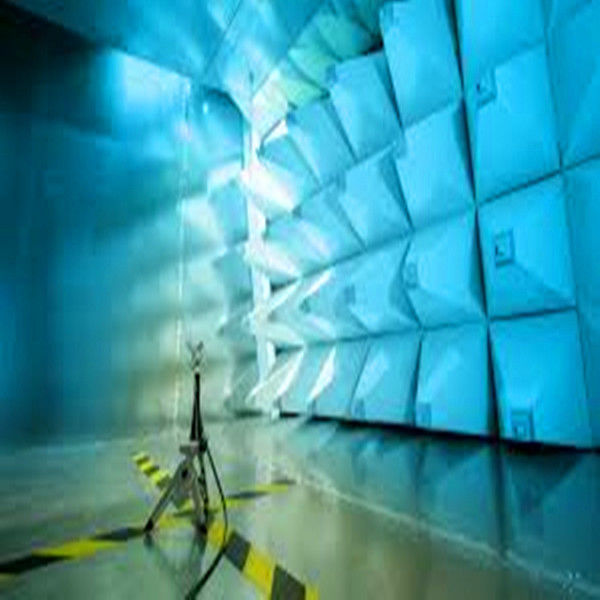

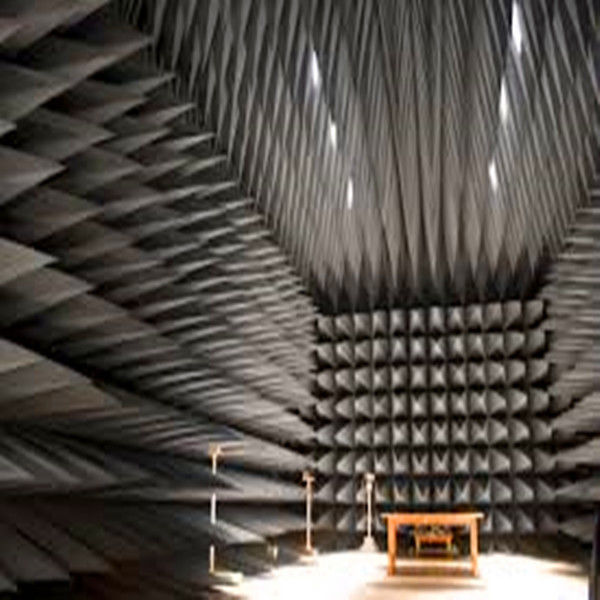

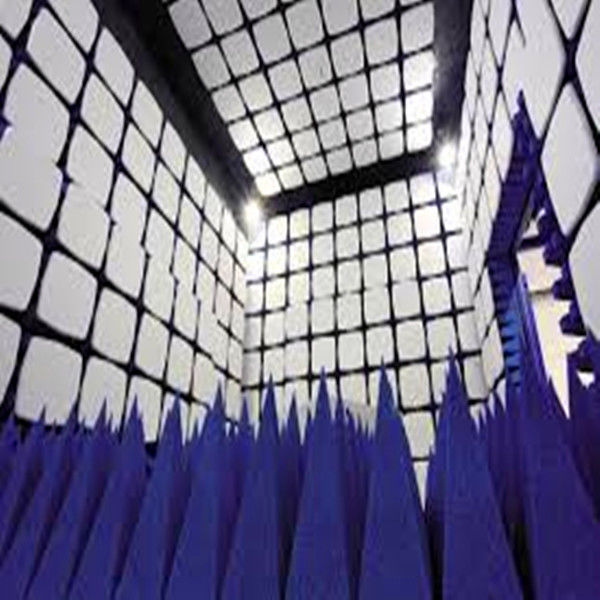

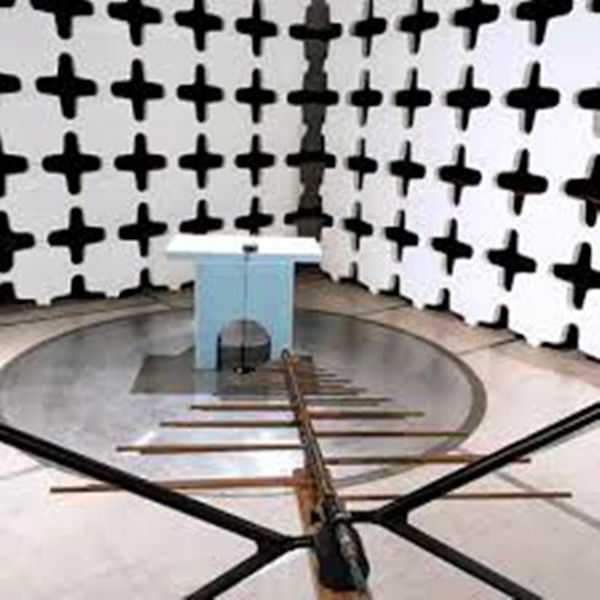

Anechoic chamber room with RF absorber



The types we provided for anechoic chamber room with RF absorber



- Compact chamber

- 3 Meter chamber

- 5 Meter chamber

-10 Meter  chamber

- Free space chamber

- MIL-STD chamber

-Customized Anechoic chamber acceptable



Shielding performance for anechoic chamber room with RF absorber

 Magnetic field

 14kHz

 75dB

 100KHz

 100dB

 200KHz

 110dB

 Plane wave

 50-103MHz

 120dB

 Microware

 1-10GHz

 110dB

 10-20GHz

 100dB

 20-40GHz

 80dB

High Performance EMC Testing Chamber RF Shielding Room 40GHz 0High Performance EMC Testing Chamber RF Shielding Room 40GHz 1

Items 1Module Panel type, 2mm/3mm galvanized steel plate

Items 2RF Shielding Door, Open size:1000*2000mm
Or Customized dimension

Items 3Power Filters
16A/ 32A/50A/63A
Or Customized parameter

Items 4Honeycomb Ventilation panels
300x300x25mm
300x600x25mm
Or Customized dimension

Items 5RF Panel
300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2
Or Customized dimension

Items 6Floor
Anti-static floor or Laminate flooring
Or customized materials

Items 7Foam RF absorber
Ferrite tile
High power absorber

Items 8Beryllium copper Fingers

Items 9Steel waveguideItems 10EMI Shielding Gasket
