Modular RF Shielding Room Chamber Faraday Cage Rf Shielded Enclosure

Modular RF Shielding Room Chamber Faraday Cage Rf Shielded Enclosure

  • Highlight

    RF Shielding Room Chamber

    ,

    faraday cage rf testing

    ,

    faraday cage rf shielded enclosure

  • Type
    RC Filter
  • Transfer Function
    Low Pass
  • Package Type
    Surface Mount
  • Nominal Center Frequency
    50Hz
  • 3dB Bandwidth
    10M
  • Insertion Loss
    100dB
  • Input Impedance
    50oHm
  • Stopband Attenuation
    100dB
  • Power Supply
    Single Phase Three Phase Or Dc
  • Usage
    Emc Test
  • Room Size
    Customized
  • Door Size
    Customized
  • Panel
    2mm/3mm Steel Panel
  • Attenuation
    14KHz-40GHz >=100dB
  • Packing
    Wooden Case
  • Delivery Time
    2-3weeks For Emc Testing Electromagnetic Shielding RF Room
  • Port
    Shanghai
  • Brand Name
    haozhuo
  • Certification
    CE RoHS
  • Model Number
    H
  • Minimum Order Quantity
    >=1 Sets
  • Price
    $10,000.00
  • Packaging Details
    wooden case
  • Supply Ability
    1 Set/Sets per Month

Modular RF Shielding Room Chamber Faraday Cage Rf Shielded Enclosure

EMC RF shielding testing chamber room

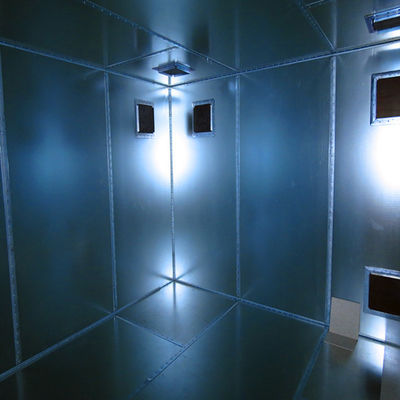

Modular Shielded Rooms or Modular Faraday Cages are constructed using prefabricated, 2mm thick, galvanised sheet steel panels which allow for almost unlimited size and configuration options, and provide maximum shielding performance and corrosion resistance. The panels are connected using bolts, and electrically conductive mesh gasket is placed between each joint.

When a shielded room is necessary?
· If your lab is near a broad spectrum emitter (i.e equipment that transmits multiple frequencies under 400Hz), radio tower, mobile phone transmitter or other large field generators, then you should consider a shielded room.
· If your research is in the gamma band and you do not want to use a 60/50Hz notch filter to remove mains power noise, you might consider a shielded room. We recommend taking the steps above to first minimize the mains power noise. If that is not sufficient for your needs, then a shielded room may help.


Product Features
Shielding panels are made of molded cold-rolled steel plates. They are jointed in way and welded with CO2 protection, which can restrain the plates from distortion and ensure the leveling of the steel plates.
Self-supported frame construction is made of section materials.
Shielding door is optional: standard electromotive door (electromotive / manual alternative), full-automatic shielding door (light-activated with password) sliding door. Subshining stainless steel decoration is on surface of the door. Standard dimension of the door is:0.85×2(m).
Large-scale hanging sliding shielding-door, electromotive sliding push-in door, electromotive sliding gasbag door, rotated door with track.
Ventilated window is designed in cellular wave-guide type with dimension:300×300(mm).
Power filter is in condition of high-performance and low-leakage.
Telephone, air-conditioning, fire-fight devices, optical fiber and CAT5 cables can be equipped customized.
Decoration will be arranged in the shielding room according to standard equipment room requirements.
Shielding Properties (dB)


Magnetic field

14kHz85dB
100KHz100dB
200KHz110dB
Plane wave50-103MHz120dB


Microware

1-10GHz110dB
10-20GHz100dB
20-40GHz80dB
Application Scope
EMC tesing
Items 1Module Panel type, 2mm/3mm galvanized steel plate
Items 2RF Shielding Door, Open size:1000*2000mm
Or Customized dimension

Items 3Power Filters
16A/ 32A/50A/63A
Or Customized parameter

Items 4Honeycomb Ventilation panels
300x300x25mm
300x600x25mm
Or Customized dimension

Items 5RF Panel
300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2
Or Customized dimension

Items 6Floor
Anti-static floor or Laminate flooring
Or customized materials

Items 7Foam RF absorber
Ferrite tile
High power absorber

Items 8Beryllium copper Fingers
Items 9Steel waveguide
Items 10EMI Shielding Gasket




RF Anechoic chamber Shielding Properties (dB)


Magnetic field

14kHz75dB
100KHz100dB
200KHz110dB
Plane wave50-103MHz120dB


Microware

1-10GHz110dB
10-20GHz

100dB
