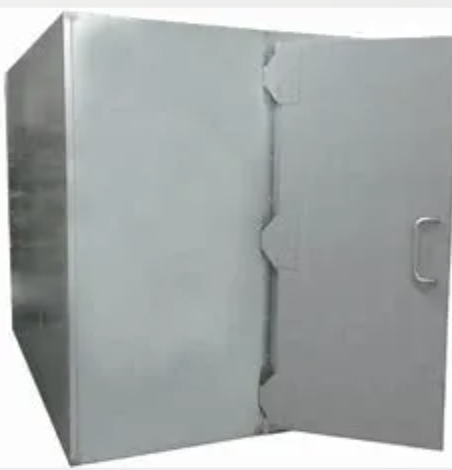

Double Layer Galvanized Steel RF Shielded Room Integrated HVAC System 14KHz 40GHz Attenuation

This advanced double layer galvanized steel RF shielded room offers industry-leading shielding performance with an integrated HVAC system for temperature and humidity control. The dual-layer construction provides superior isolation for sensitive applications including data centers, EMC test laboratories, and high-security facilities.

• Outer layer: 3mm galvanized steel panels for structural integrity and primary shielding
• Inner layer: 2mm galvanized steel panels with welded corners for secondary shielding
• Air gap between layers enhances low-frequency magnetic field attenuation
• Electrically isolated inner and outer shells prevent ground loop interference
• Modular bolted design enables reconfiguration and future expansion

• Dedicated HVAC unit with EMI-filtered power supply and control lines
• Honeycomb waveguide air inlets and outlets maintain shielding integrity
• Temperature control range: 18-26C
• Humidity control: 30-70% RH
• Airflow optimized for uniform chamber temperature distribution

• RF shielding door (1.0x2.0m) with pneumatic sealing mechanism
• Power line filters (32A/63A/100A) for main and auxiliary power
• Honeycomb ventilation panels with HVAC duct interfaces
• RF patch panel with fiber optic and coaxial feedthrough
• Anti-static flooring system
• Fire detection and suppression system
• Emergency exit with RF shielding

Full turnkey delivery including design, manufacturing, installation, and certification testing. Contact us for a tailored proposal.
