RF Emi Test Shielded Chamber Room Rf Screen Room radio frequency shielding

RF Emi Test Shielded Chamber Room Rf Screen Room radio frequency shielding

Products - RF Shielding Room
  • High Light

    emi test shielded chamber

    ,

    emi test shielded room

    ,

    emi emc test room

  • Type
    RC Filter
  • Transfer Function
    Low Pass
  • Package Type
    Surface Mount
  • Nominal Center Frequency
    50Hz
  • 3dB Bandwidth
    10M
  • Insertion Loss
    100dB
  • Input Impedance
    50oHm
  • Stopband Attenuation
    100dB
  • Power Supply
    Single Phase Three Phase Or Dc
  • Usage
    Emc Test
  • Room Size
    Customized
  • Door Size
    Customized
  • Panel
    2mm/3mm Steel Panel
  • Attenuation
    14KHz-40GHz >=100dB
  • Packing
    Wooden Case
  • Delivery Time
    2-3weeks For Emc Testing Electromagnetic Shielding RF Room
  • Port
    Shanghai
  • Brand Name
    haozhuo
  • Certification
    CE RoHS
  • Model Number
    H
  • Minimum Order Quantity
    >=1 Sets
  • Price
    $10,000.00
  • Packaging Details
    wooden case
  • Supply Ability
    1 Set/Sets per Month

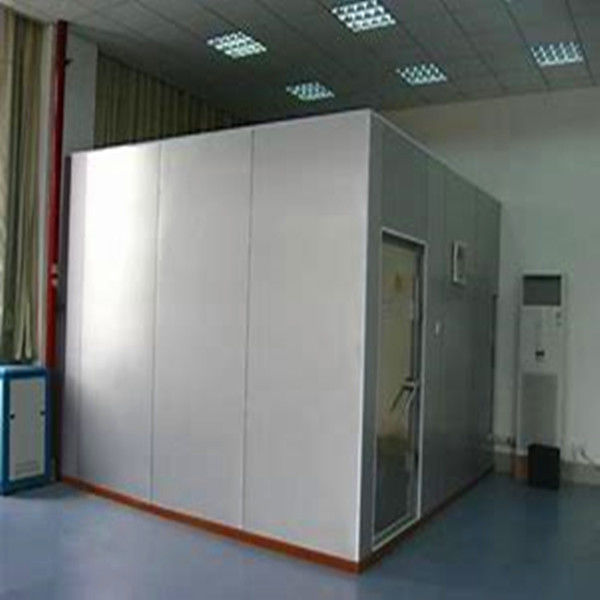

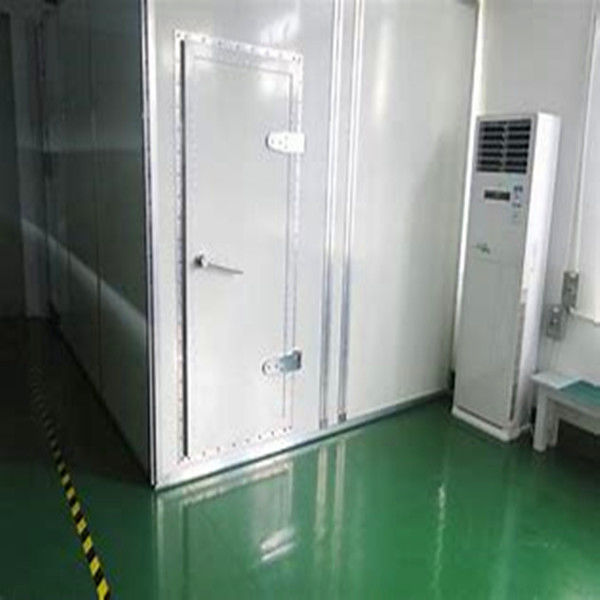

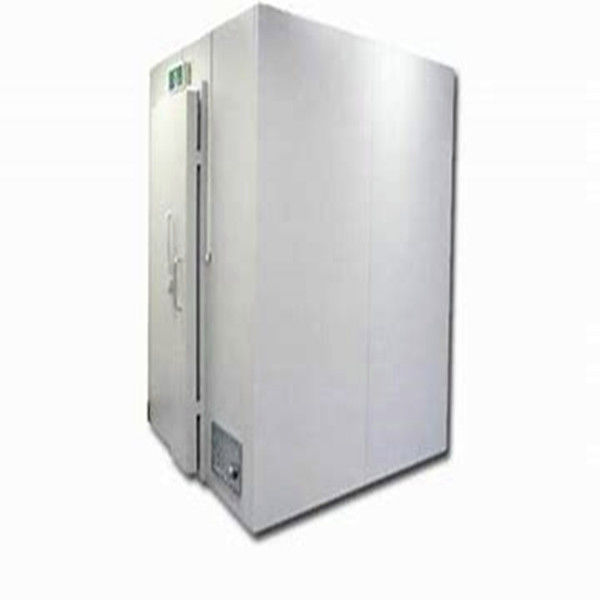

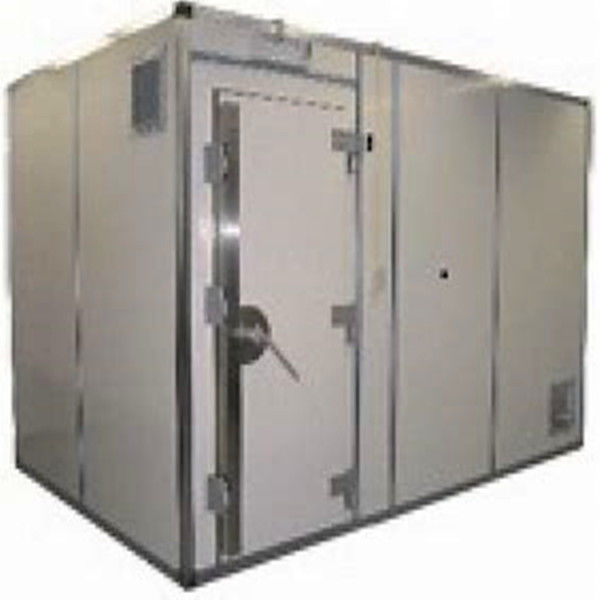

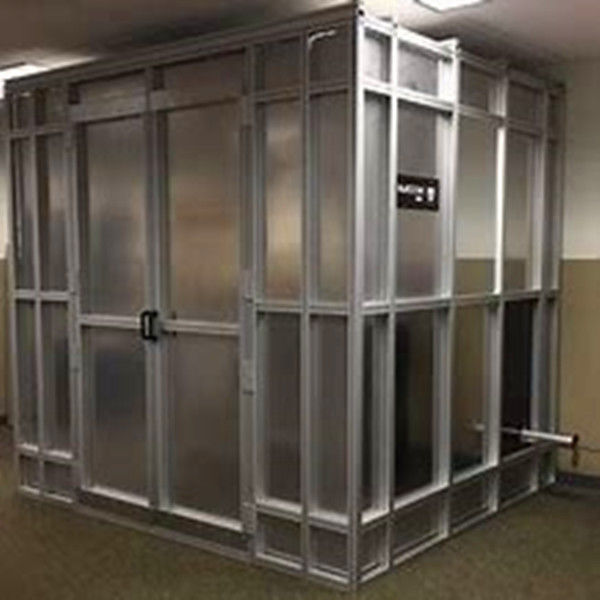

RF Emi Test Shielded Chamber Room Rf Screen Room radio frequency shielding

  • RF Emi Test Shielded Chamber Room Rf Screen Room radio frequency shielding
  • RF Emi Test Shielded Chamber Room Rf Screen Room radio frequency shielding
  • RF Emi Test Shielded Chamber Room Rf Screen Room radio frequency shielding
  • RF Emi Test Shielded Chamber Room Rf Screen Room radio frequency shielding
  • RF Emi Test Shielded Chamber Room Rf Screen Room radio frequency shielding
  • RF Emi Test Shielded Chamber Room Rf Screen Room radio frequency shielding
Get Price Contact Now

RF Emi Test Shielded Chamber Room





Copper
Sheet		 Modular
Panel		 Modular
Mesh		 Modular Pan Welded
Material Copper Sheet Galvinized
Steel + Particle
Board		 Copper
Screen		 Galvanized
Steel		 Steel
Assembly
/Joint		 Solder,
Tape,Staple		 Bolting Trough
Steel Bracket		 Bolt & Staple Bolting through
Gasket		 Welding
Features Quick
Installtion		 High
Attenuation		 Hear & See
through		 High
Attenuation		 Highest
Attenuation
Cost Low Moderate Moderate High? Highest
Attenuation
Magnetic Field 90dB@
200MHz		 60dB@14KHz,
70dB@200KHz		 60dB@
14MHz		 60dB@14KHz,
110dB@200KHz		 80dB@14KHz,
110dB@200KHz
Electric Field 100dB :10MHz
~30MHz		 100dB : 10MHz
~30MHz		 100dB :
10MHz
~30MHz		 110dB : 10MHz
~30MHz		 110dB : 20KHz
~30MHz
Plane wave 100dB :
30MHz ~1GHz		 100dB : 30MHz
~1GHz		 100dB :
30MHz
~1GHz		 100dB : 30MHz
~1GHz		 100dB : 30MHz
~10GHz
Mocrowave   100dB : 1GHz ~
80GHz
Application MRI &EEG
Rooms		 High Security Facilities Highest
Security
Facilities
Conference
Room		 Communication & Data Processing Center,
R&D & Test Facilities

R&D & Test
Facility








When a shielded room is necessary?

· If your lab is near a broad spectrum emitter (i.e equipment that transmits multiple frequencies under 400Hz), radio tower, mobile phone transmitter or other large field generators, then you should consider a shielded room.

· If your research is in the gamma band and you do not want to use a 60/50Hz notch filter to remove mains power noise, you might consider a shielded room. We recommend taking the steps above to first minimize the mains power noise. If that is not sufficient for your needs, then a shielded room may help.



Product Features
Shielding panels are made of molded cold-rolled steel plates. They are jointed in way and welded with CO2 protection, which can restrain the plates from distortion and ensure the leveling of the steel plates.
Self-supported frame construction is made of section materials.
Shielding door is optional: standard electromotive door (electromotive / manual alternative), full-automatic shielding door (light-activated with password) sliding door. Subshining stainless steel decoration is on surface of the door. Standard dimension of the door is:0.85×2(m).
Large-scale hanging sliding shielding-door, electromotive sliding push-in door, electromotive sliding gasbag door, rotated door with track.
Ventilated window is designed in cellular wave-guide type with dimension:300×300(mm).
Power filter is in condition of high-performance and low-leakage.
Telephone, air-conditioning, fire-fight devices, optical fiber and CAT5 cables can be equipped customized.
Decoration will be arranged in the shielding room according to standard equipment room requirements.
Shielding Properties (dB)



Magnetic field

 14kHz 85dB
100KHz 100dB
200KHz 110dB
Plane wave 50-103MHz 120dB



Microware

 1-10GHz 110dB
10-20GHz 100dB
20-40GHz 80dB
Application Scope
EMC tesing
Items 1 Module Panel type, 2mm/3mm galvanized steel plate
Items 2 RF Shielding Door, Open size:1000*2000mm
Or Customized dimension
Items 3 Power Filters
16A/ 32A/50A/63A
Or Customized parameter
Items 4 Honeycomb Ventilation panels
300x300x25mm
300x600x25mm
Or Customized dimension
Items 5 RF Panel
300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2
Or Customized dimension
Items 6 Floor
Anti-static floor or Laminate flooring
Or customized materials
Items 7 Foam RF absorber
Ferrite tile
High power absorber
Items 8 Beryllium copper Fingers
Items 9 Steel waveguide
Items 10 EMI Shielding Gasket





RF Anechoic chamber Shielding Properties (dB)



Magnetic field

 14kHz 75dB
100KHz 100dB
200KHz 110dB
Plane wave 50-103MHz 120dB



Microware

 1-10GHz 110dB
10-20GHz

100dB



RF Emi Test Shielded Chamber Room Rf Screen Room radio frequency shielding 0RF Emi Test Shielded Chamber Room Rf Screen Room radio frequency shielding 1
