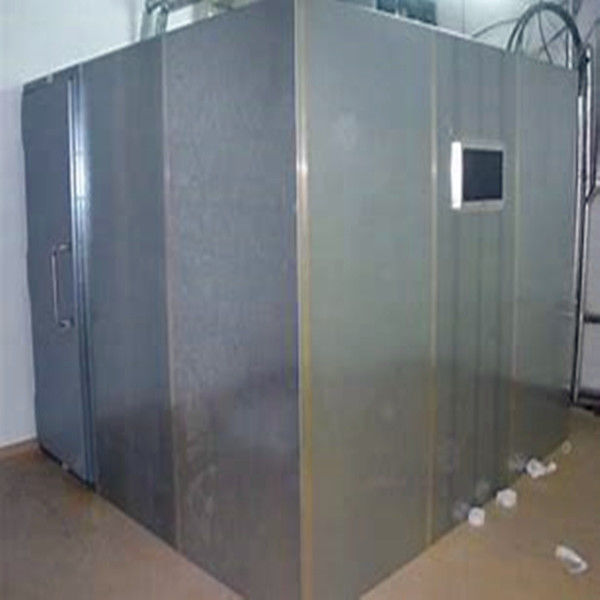

14KHz-40GHz more than 100dB for emc RF shielding testing chamber
RF noise free environments and RF noise containment are important for many applications including EMC / EMI testing, security, safety and regulatory compliance. With thousands of shielded rooms and anechoic chambers supplied globally to hospitals, government agencies, data centers, test labs and private organizations, you can be sure that we have the expertise and capabilities required.
When a shielded room is necessary?
· If your lab is near a broad spectrum emitter (i.e equipment that transmits multiple frequencies under 400Hz), radio tower, mobile phone transmitter or other large field generators, then you should consider a shielded room.
· If your research is in the gamma band and you do not want to use a 60/50Hz notch filter to remove mains power noise, you might consider a shielded room. We recommend taking the steps above to first minimize the mains power noise. If that is not sufficient for your needs, then a shielded room may help.
| Product Features | ||||
| Shielding panels are made of molded cold-rolled steel plates. They are jointed in way and welded with CO2 protection, which can restrain the plates from distortion and ensure the leveling of the steel plates. | ||||
| Self-supported frame construction is made of section materials. | ||||
| Shielding door is optional: standard electromotive door (electromotive / manual alternative), full-automatic shielding door (light-activated with password) sliding door. Subshining stainless steel decoration is on surface of the door. Standard dimension of the door is:0.85×2(m). | ||||
| Large-scale hanging sliding shielding-door, electromotive sliding push-in door, electromotive sliding gasbag door, rotated door with track. | ||||
| Ventilated window is designed in cellular wave-guide type with dimension:300×300(mm). | ||||
| Power filter is in condition of high-performance and low-leakage. | ||||
| Telephone, air-conditioning, fire-fight devices, optical fiber and CAT5 cables can be equipped customized. | ||||
| Decoration will be arranged in the shielding room according to standard equipment room requirements. | ||||
| Shielding Properties (dB) | ||||
| 14kHz | 85dB | ||
| 100KHz | 100dB | |||
| 200KHz | 110dB | |||
| Plane wave | 50-103MHz | 120dB | ||
| 1-10GHz | 110dB | ||
| 10-20GHz | 100dB | |||
| 20-40GHz | 80dB | |||
| Application Scope | ||||
| EMC tesing | ||||
| Items 1 | Module Panel type, 2mm/3mm galvanized steel plate | |||
| Items 2 | RF Shielding Door, Open size:1000*2000mm Or Customized dimension | |||
| Items 3 | Power Filters 16A/ 32A/50A/63A Or Customized parameter | |||
| Items 4 | Honeycomb Ventilation panels 300x300x25mm 300x600x25mm Or Customized dimension | |||
| Items 5 | RF Panel 300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2 Or Customized dimension | |||
| Items 6 | Floor Anti-static floor or Laminate flooring Or customized materials | |||
| Items 7 | Foam RF absorber Ferrite tile High power absorber | |||
| Items 8 | Beryllium copper Fingers | |||
| Items 9 | Steel waveguide | |||
| Items 10 | EMI Shielding Gasket | |||
| RF Anechoic chamber Shielding Properties (dB) | ||
| 14kHz | 75dB |
| 100KHz | 100dB | |
| 200KHz | 110dB | |
| Plane wave | 50-103MHz | 120dB |
| 1-10GHz | 110dB |
| 10-20GHz | 100dB | |
Our products are sold all over the world, you can rest assured.
