MRI RF Cage RF Shielding Room For 2.0T Mri Machine

MRI RF Cage RF Shielding Room For 2.0T Mri Machine

Products - RF Shielding Room
  • High Light

    MRI RF Cage

    ,

    MRI RF Shielding Room

    ,

    2.0T Mri Machine RF Cage

  • Power
    Electronic
  • Size
    Customized
  • Accessories 1
    MRI Window
  • Accessories 2
    MRI Door
  • Accessories 3
    Copper Panel
  • Accessories 4
    EMI Filter
  • Accessories 5
    Honeycomb
  • Accessories 6
    Gas Waveguide
  • Accessories 7
    PVC For Flooring
  • Accessories 8
    PVC For Walls
  • Accessories 9
    Light
  • Selling Units
    Single Item
  • Single Package Size
    200X200X200 Cm
  • Single Gross Weight
    500.000 Kg
  • Package Type
    WOODEN CASE
  • Place of Origin
    China
  • Brand Name
    HZ
  • Model Number
    MRI RF CAGE
  • Minimum Order Quantity
    1 Set
  • Price
    $20,000.00 / Set

MRI RF Cage RF Shielding Room For 2.0T Mri Machine

  • MRI RF Cage RF Shielding Room For 2.0T Mri Machine
  • MRI RF Cage RF Shielding Room For 2.0T Mri Machine
  • MRI RF Cage RF Shielding Room For 2.0T Mri Machine
  • MRI RF Cage RF Shielding Room For 2.0T Mri Machine
  • MRI RF Cage RF Shielding Room For 2.0T Mri Machine
  • MRI RF Cage RF Shielding Room For 2.0T Mri Machine
Get Price Contact Now

MRI RF CAGE for 2.0T mri machine

  • Pre compliant for Immunity and Emission performance in accordance with EN61000.4.3/EN50147‐1
  • We also meets several ETSI test standards (UKAS accredited)
  • Flexible modular design enables easy site changes or upgrading
  • Independently certified 100dB @ 18GHz shielding performance (ISO17025)

MRI Scanning Room Product Features:

  • Pure, electrically deposited copper
  • RF attenuation levels of > 100 dB up to 400
  • MHz frequencies
  • Free standing, structurally isolated RF walls
  • Light weight wall and ceiling panels
  • Factory engineered and fabricated RF shield panels
  • Contractor friendly interiors

MRI Scanning Room Description:

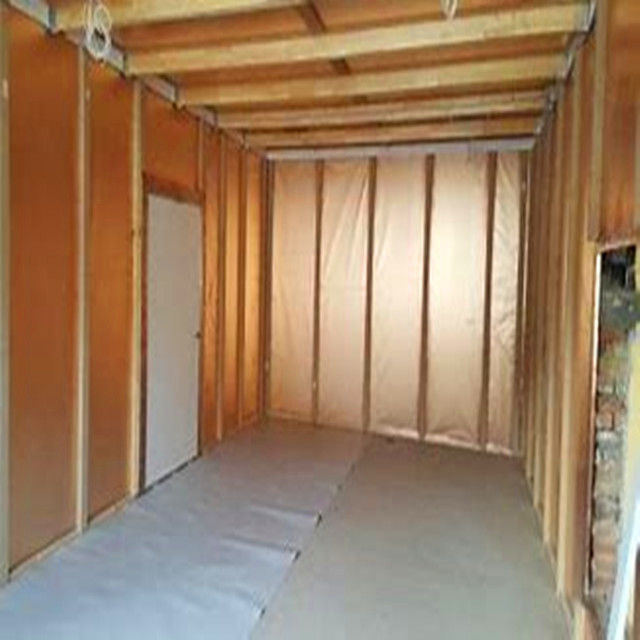

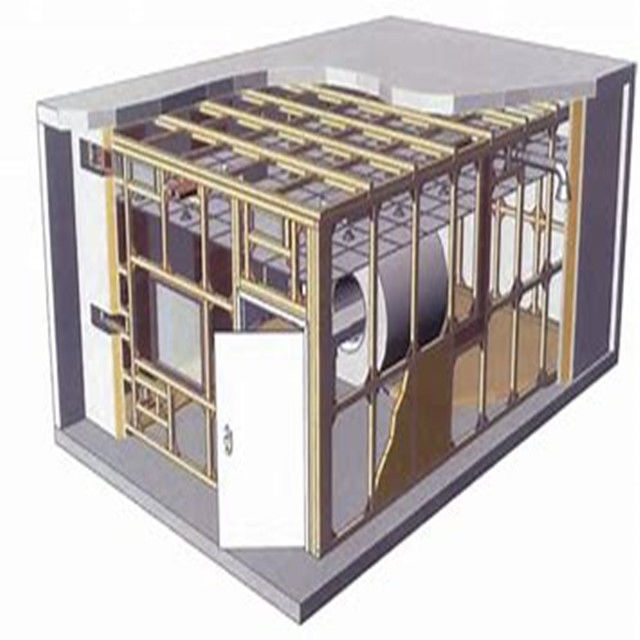

This modular frame construction is wrapped with electroplated copper which can conform to any design criteria. The engineered and bolted system enhances RF integrity with wide 4.4 cm (1 3/4") seams that are highly compressed, offering a seamless shield surface. Interior fasteners do not have to penetrate the shield surface by design, which enhances the long term life of the shield.



Product Features
Shielding panels are made of molded cold-rolled steel plates. They are jointed in way and welded with CO2 protection, which can restrain the plates from distortion and ensure the leveling of the steel plates.
Self-supported frame construction is made of section materials.
Shielding door is optional: standard electromotive door (electromotive / manual alternative), full-automatic shielding door (light-activated with password) sliding door. Subshining stainless steel decoration is on surface of the door. Standard dimension of the door is:0.85×2(m).
Large-scale hanging sliding shielding-door, electromotive sliding push-in door, electromotive sliding gasbag door, rotated door with track.
Ventilated window is designed in cellular wave-guide type with dimension:300×300(mm).
Power filter is in condition of high-performance and low-leakage.
Telephone, air-conditioning, fire-fight devices, optical fiber and CAT5 cables can be equipped customized.
Decoration will be arranged in the shielding room according to standard equipment room requirements.
Shielding Properties (dB)



Magnetic field

 14kHz 85dB
100KHz 100dB
200KHz 110dB
Plane wave 50-103MHz 120dB



Microware

 1-10GHz 110dB
10-20GHz 100dB
20-40GHz 80dB
Application Scope
EMC tesing
Items 1 Module Panel type, 2mm/3mm galvanized steel plate
Items 2 RF Shielding Door, Open size:1000*2000mm
Or Customized dimension
Items 3 Power Filters
16A/ 32A/50A/63A
Or Customized parameter
Items 4 Honeycomb Ventilation panels
300x300x25mm
300x600x25mm
Or Customized dimension
Items 5 RF Panel
300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2
Or Customized dimension
Items 6 Floor
Anti-static floor or Laminate flooring
Or customized materials
Items 7 Foam RF absorber
Ferrite tile
High power absorber
Items 8 Beryllium copper Fingers
Items 9 Steel waveguide
Items 10 EMI Shielding Gasket





MRI Scanning Room Accessories

Accessories 1

MRI door 1.2x2.1M

Accessories 2

MRI window 0.8x1.2M

Accessories 3

EMI filter 16A/ 25A/ 30A

Accessories 4

Brass Honeycomb filter

300x300x25mm

300x600x25mm

Accessories 5

Copper panel

Copper foil 1380mmx0.105mm

Accessories 6

Brass waveguide

Accessories 7

Copper tape

25mm width 50M/Roll

50mm width 50M/Roll

Accessories 8

Copper wool

2.5KGS/Roll

Accessories 9

Beryllium copper fingers



MRI RF Cage RF Shielding Room For 2.0T Mri Machine 0

MRI RF Cage RF Shielding Room For 2.0T Mri Machine 1
